Vector Series — 150 lm/W Intrack LED Track Light
LUXERA Vector intrack LED track light, 10–30 W, 120–150 lm/W, tool-free interchangeable front ring and reflector. DALI, 0/1–10 V and Casambi options.
Description
Vector is our high-efficacy intrack series. A patent-designed front ring lets the reflector be swapped to a different beam angle on site, without tools — one fitting stocked, several beam options covered.
Two diameters cover 10 W to 30 W, with mirror and Miro reflector optics and a full dimming range including Casambi.

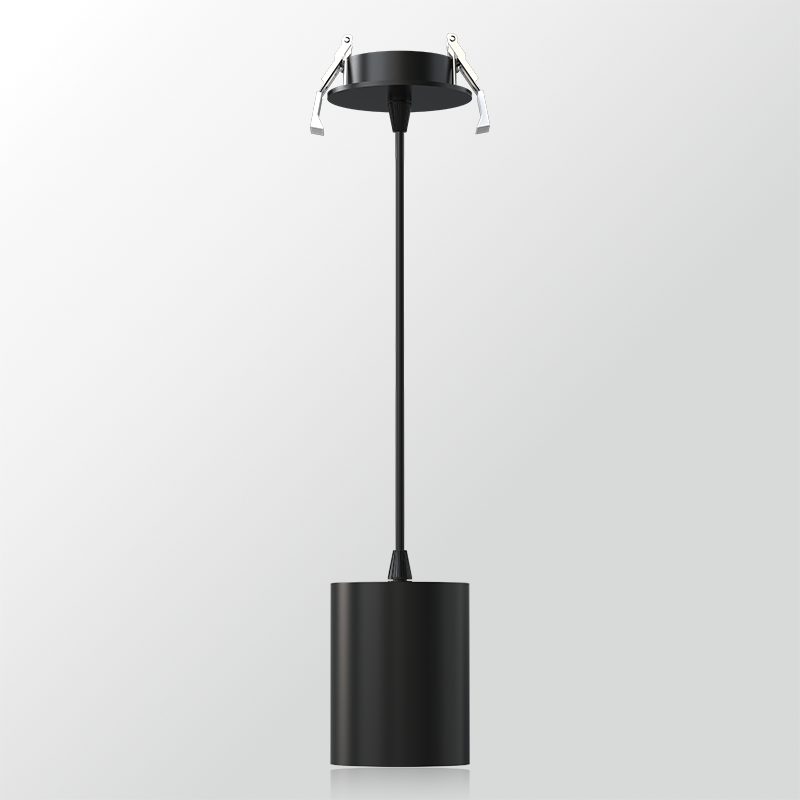

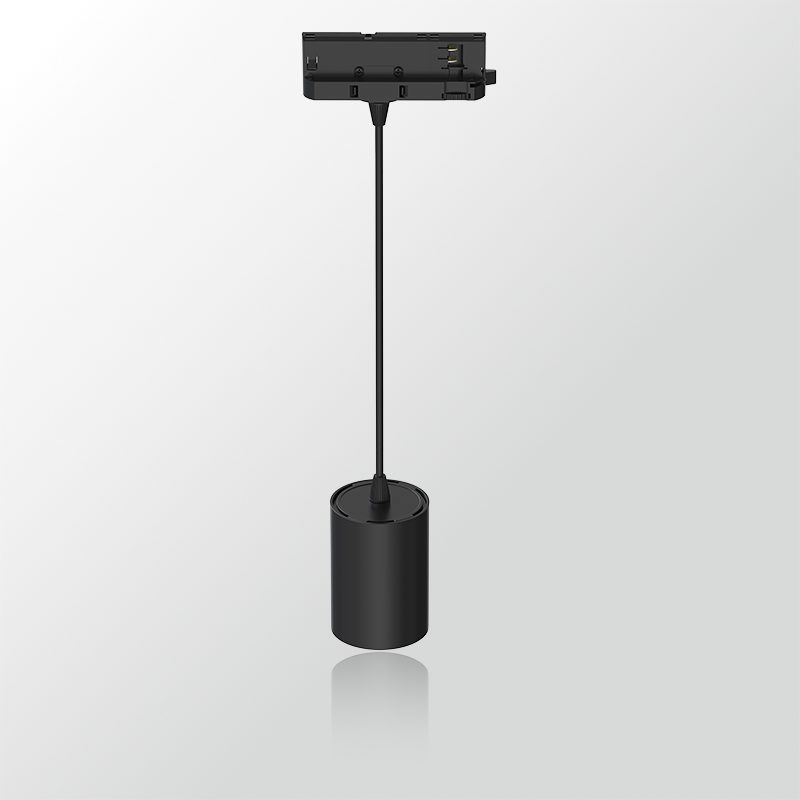

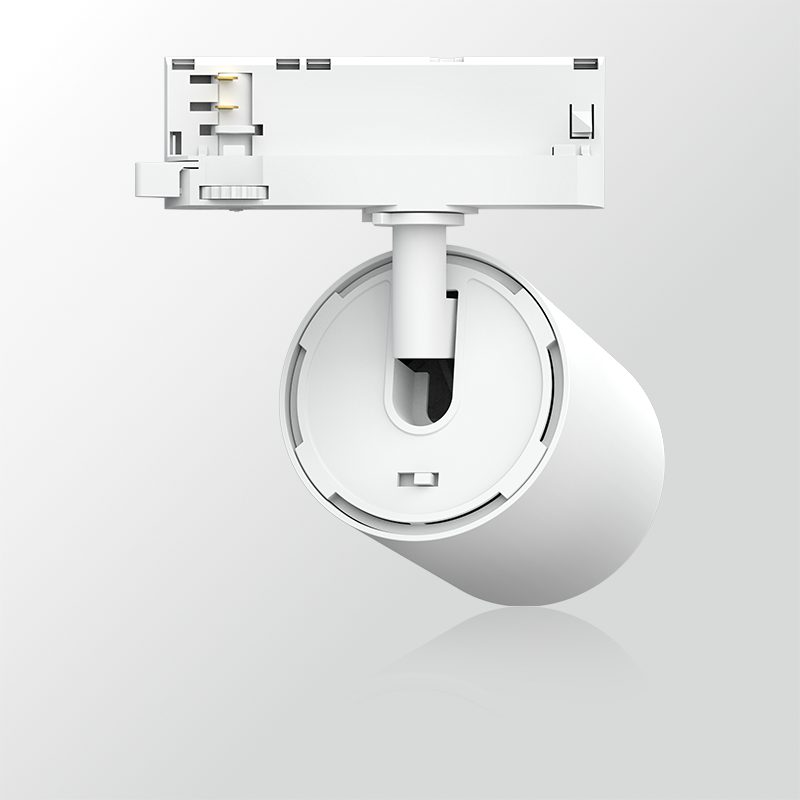

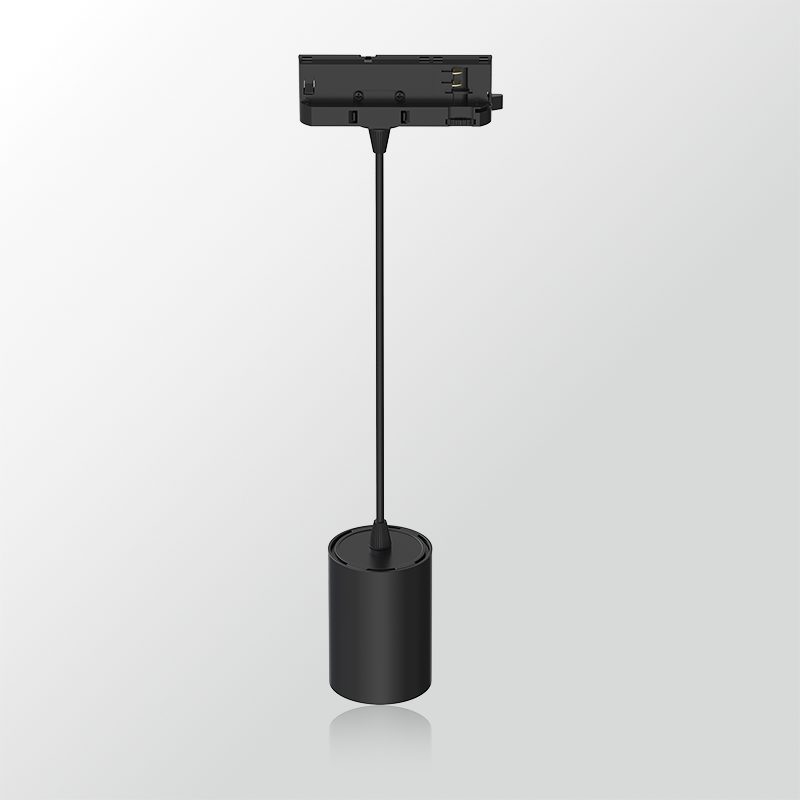

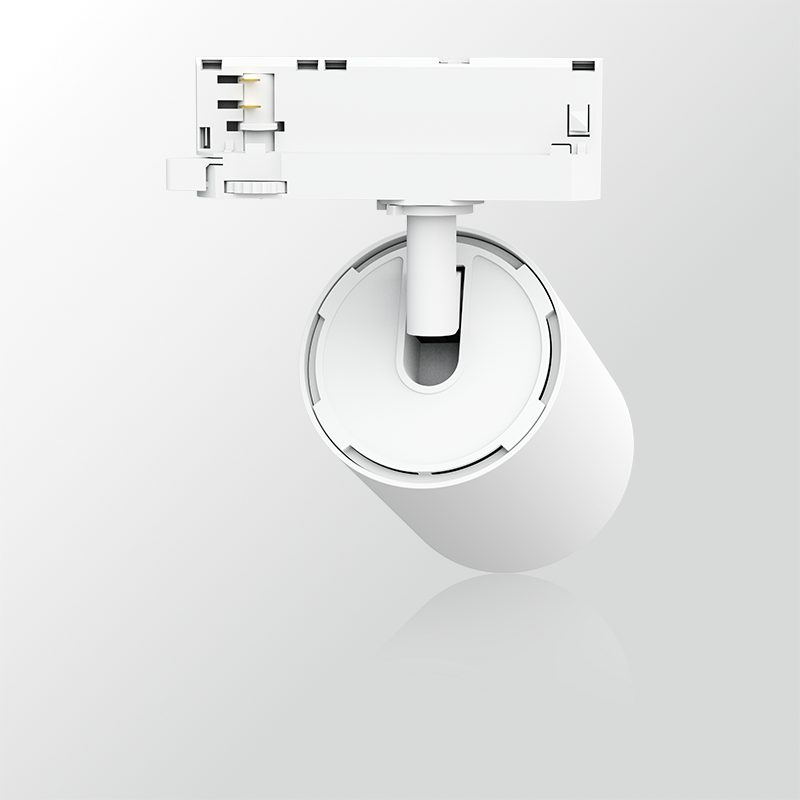

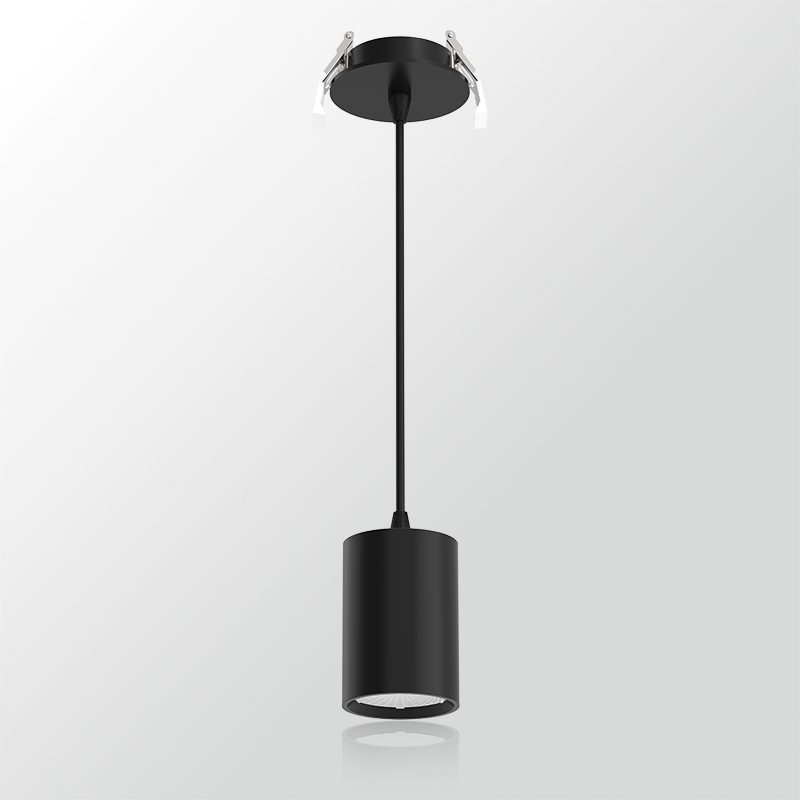

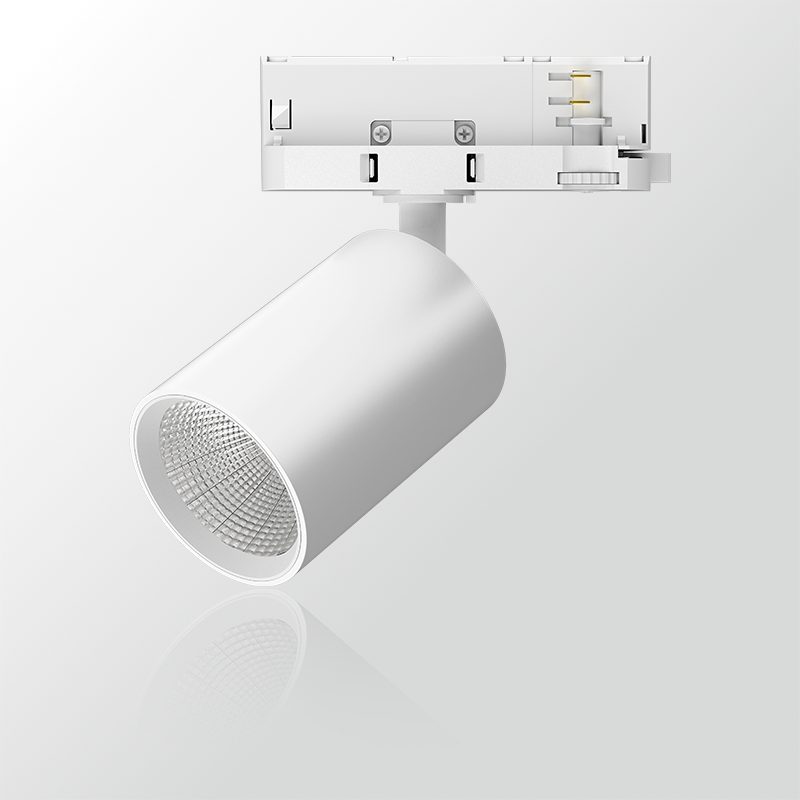

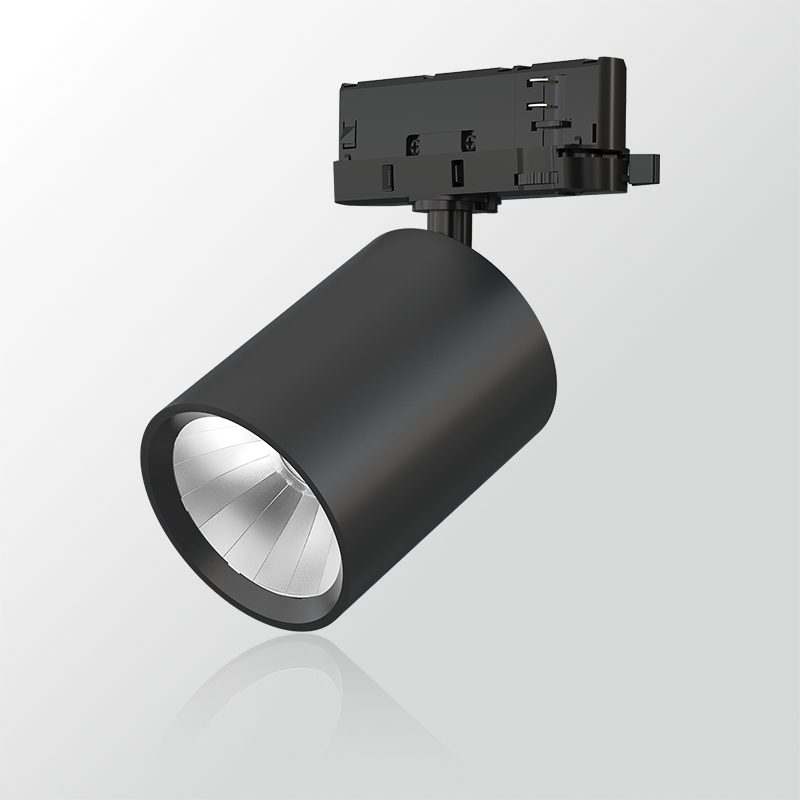

Product gallery
Click any photo to enlarge it and view the full technical specifications. Wattage variants share the same housing.
Features
- Front ring and reflector changeable tool-free
- 15° / 24° / 38° / 60° full beam range
- 350° horizontal, 90° vertical adjustment
- Lumen output 120–150 lm/W
- Mirror and Miro reflector optics
- Dimmable: DALI, 0/1–10 V, Casambi, BLE
- Single colour, tunable white, dim to warm, tri-colour
- Anti-glare accessories available
- 5-year warranty
Technical & datasheet
Click any photo in the gallery above to open these specifications beside the enlarged image.
| Materials | ADC12 die-cast aluminium |
|---|---|
| Sizes | D70 × H100 mm, D85 × H110 mm |
| Adapter brands | Global, Powergear, Unipro, STUCCHI, Eagelrise, KGP, BOKE |
| Track phase | 3/2-wire 1 phase, 6/4-wire 3 phase |
| Power | 10 W – 30 W |
| LED voltage | DC36V |
| Optics | Mirror reflector, Miro reflector |
| Beam angle | D70: 20° / 25° / 38° / 60°; D85: 18° / 28° / 44° / 60° |
| Efficiency | LED lumen 100–220 lm/W; lamp lumen 120–150 lm/W |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000 / 6500 K |
| CRI | 80+ / 90+ / 95+ / 98+ |
| SDCM | <3 |
| Voltage | AC200–240V, AC100–240V; PF>0.9 |
| Dimmable | DALI, 0/1–10 V, Casambi, BLE |
| Finish | Matt white, matt black |
| Warranty | 5 years |
Product list
D70 series
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-10W-VC | 10 W | DC36V | 250 mA | 120–150 lm/W | D70 × 100 mm |
| LX-TL-15W-VC | 15 W | DC36V | 350 mA | 120–150 lm/W | D70 × 100 mm |
| LX-TL-20W-VC | 20 W | DC36V | 500 mA | 120–150 lm/W | D70 × 100 mm |
D85 series
Source catalogue lists model code and wattage with one step of offset; confirm before quoting.
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|

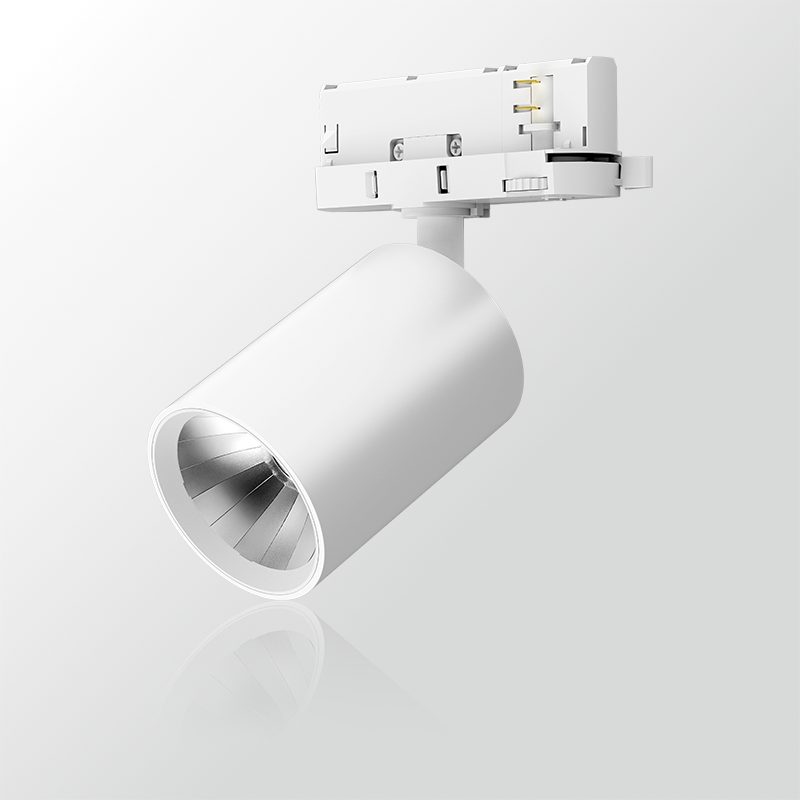

| LX-TL-25W-VC | 20 W | DC36V | 500 mA | 120–150 lm/W | D85 × 110 mm |
| LX-TL-30W-VC | 25 W | DC36V | 600 mA | 120–150 lm/W | D85 × 110 mm |

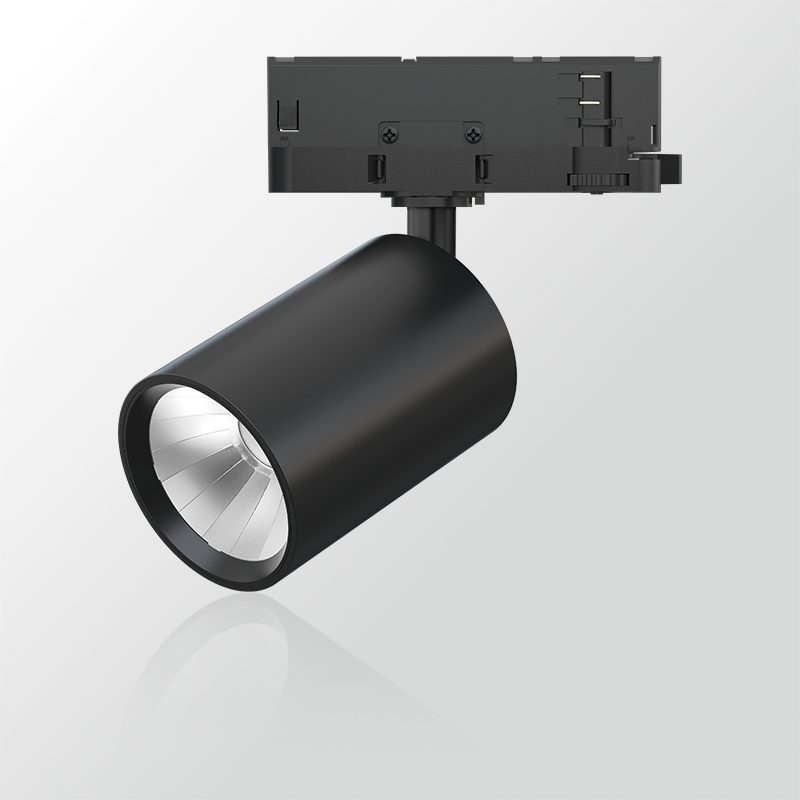

| LX-TL-35W-VC | 30 W | DC36V | 700/750 mA | 120–150 lm/W | D85 × 110 mm |
Photometric files (IES/LDT), installation drawings and certification documents are provided by our sales team per model. Track adapter and circuit configuration are confirmed per order. Adapter brands available across the range include Global, Powergear, Unipro, STUCCHI and Eutrac.
Which track system
6-Wire system
Additional circuits and control channels.
4-Wire system
Three circuits on one run.
