The 6-Wire Track Lighting System
Six conductors give more than the standard three circuits — additional circuits or a dedicated control channel, for projects where grouped switching is not enough.
System components
Rails, connectors, power feeds and accessories in the LUXERA 6-Wire Track Lighting series — the parts that make up a complete run. Click any component for details.
Track Rail

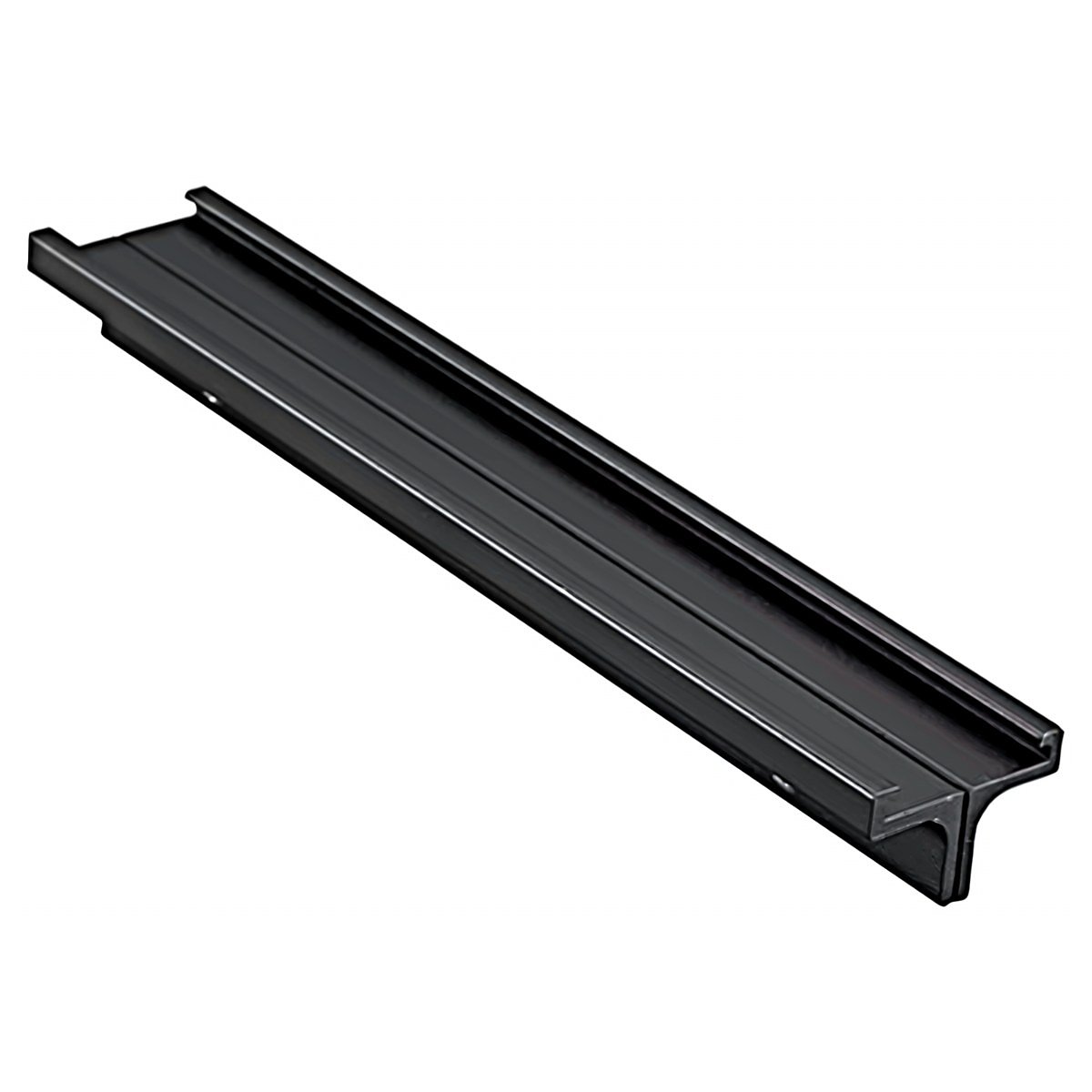

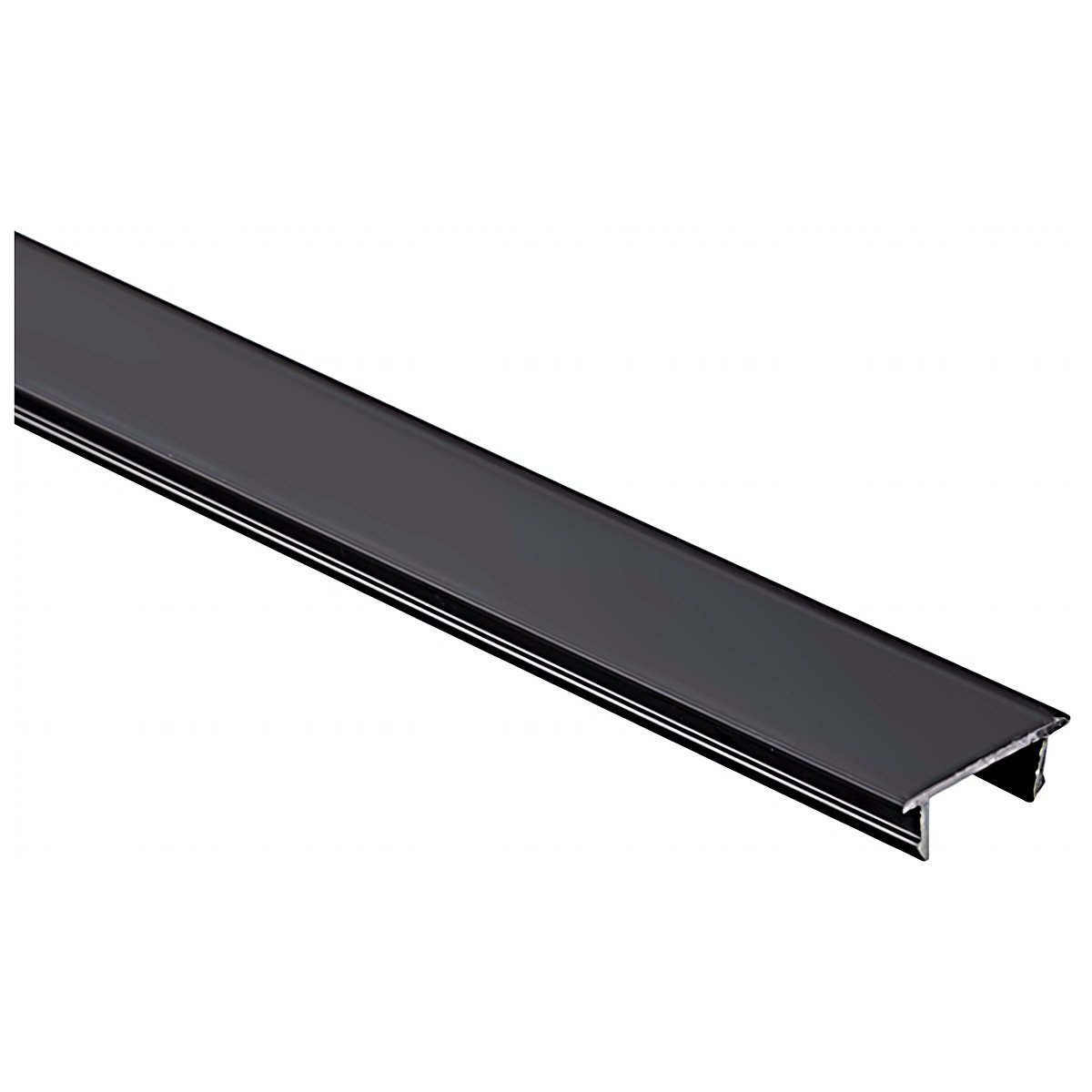

Connectors

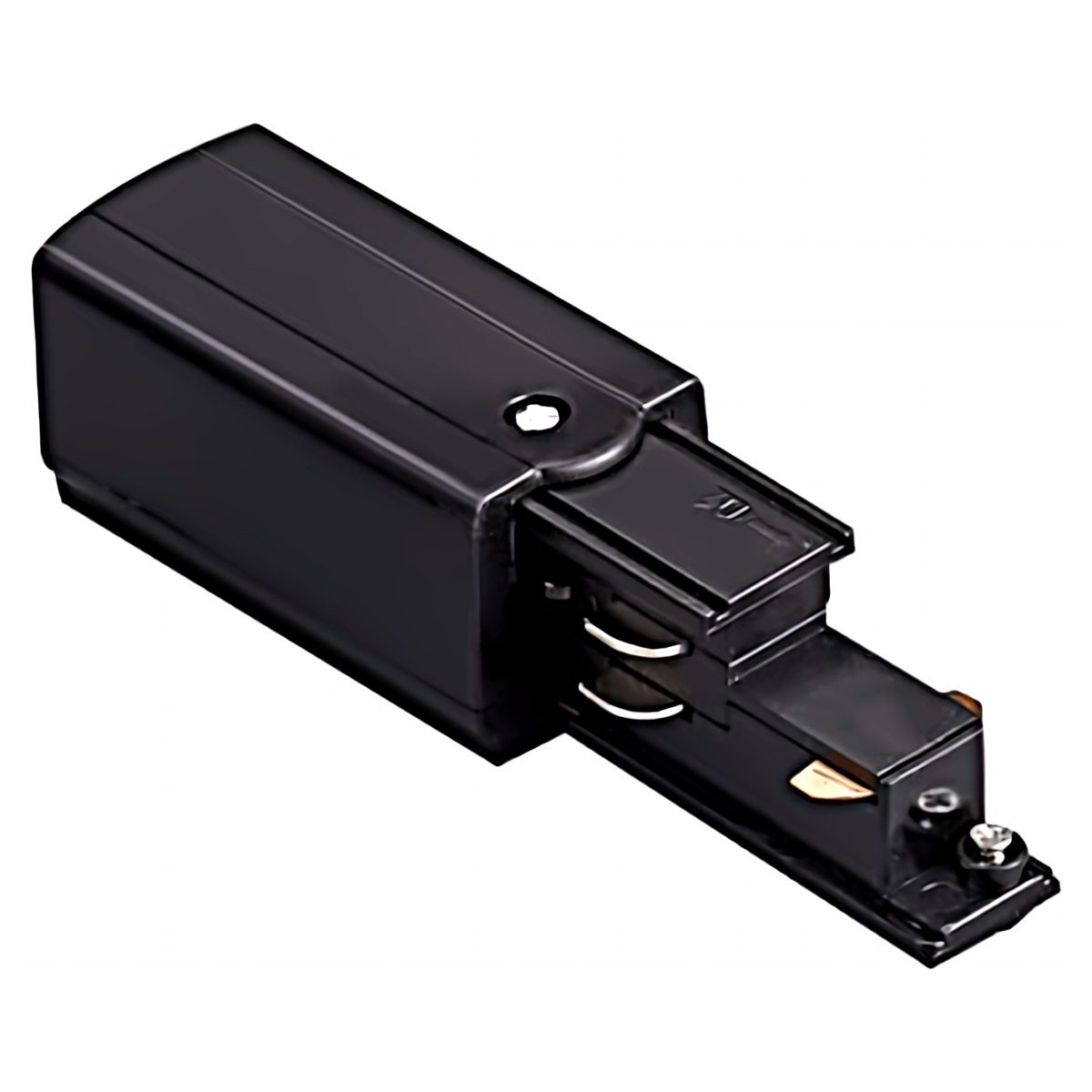

Power & Feed
End Caps
Control (DALI)
Model suffixes: -B Black, -W White, -S Silver; -10 / -15 / -20 / -30 = 1 / 1.5 / 2 / 3 m. Exact codes are confirmed on quotation.
Specifications
Model codes
Suffixes: -B Black, -W White, -S Silver. Rail lengths: -10 = 1 m, -15 = 1.5 m, -20 = 2 m, -30 = 3 m. Exact codes are confirmed on quotation.
Send the model code with your quantity — we reply within one business day.
What the system includes
Rails, adapters, connectors, power feeders, DALI components and end caps, supplied matched to the control scheme.

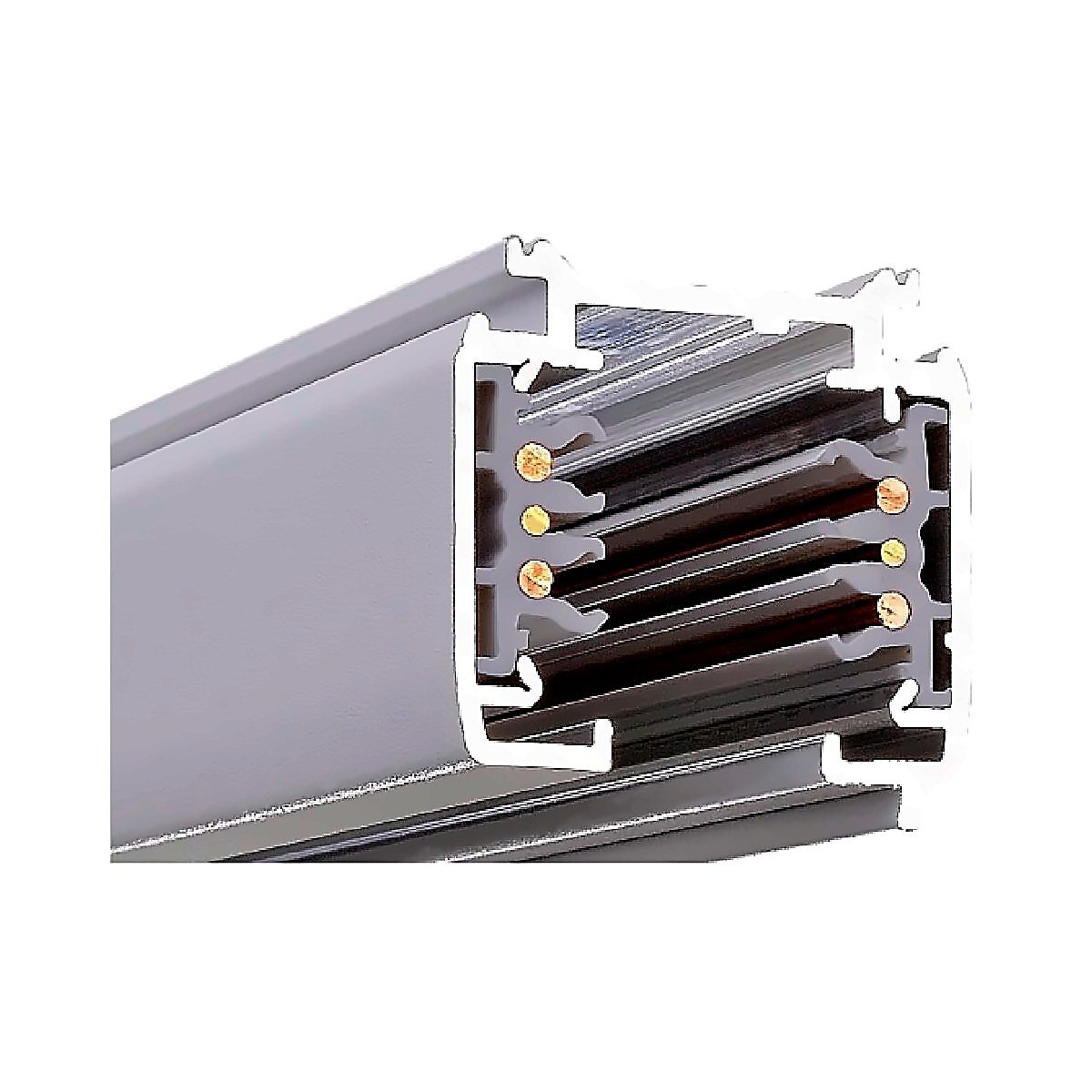

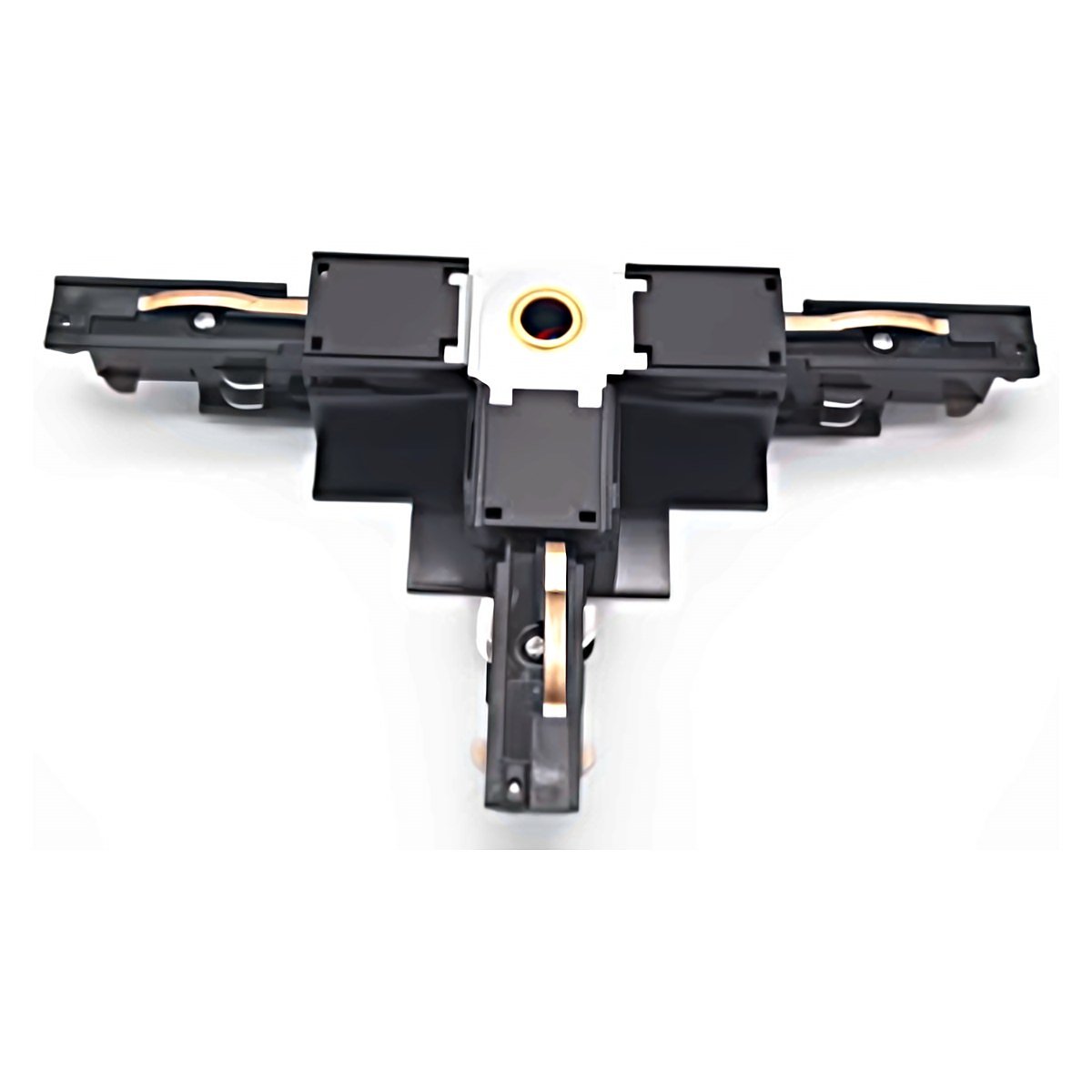

Track rail
Six-conductor square profile, surface or recessed, 1–3 m. See the component list below.
Adapters
Circuit-selectable, matched to the rail and luminaire interface.

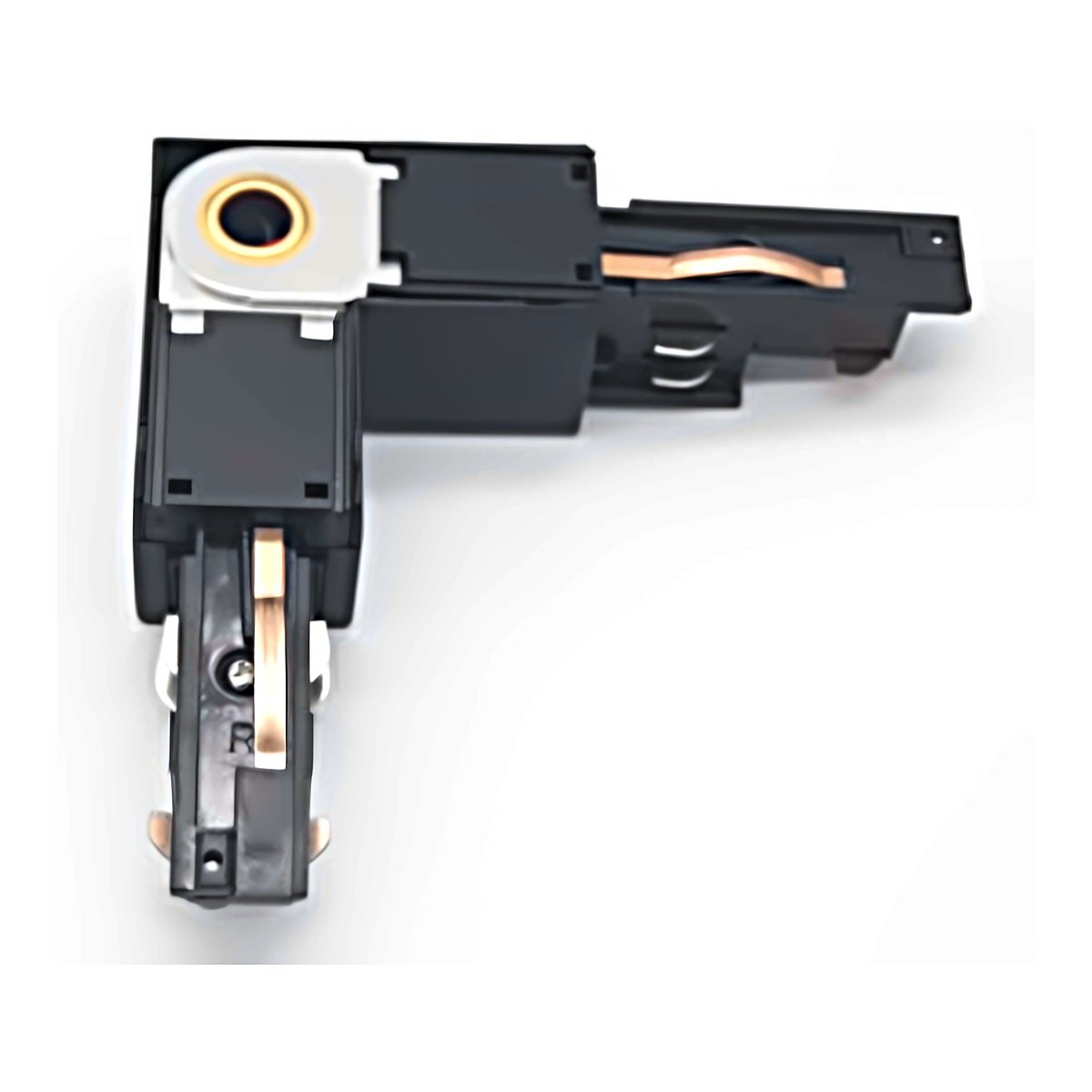

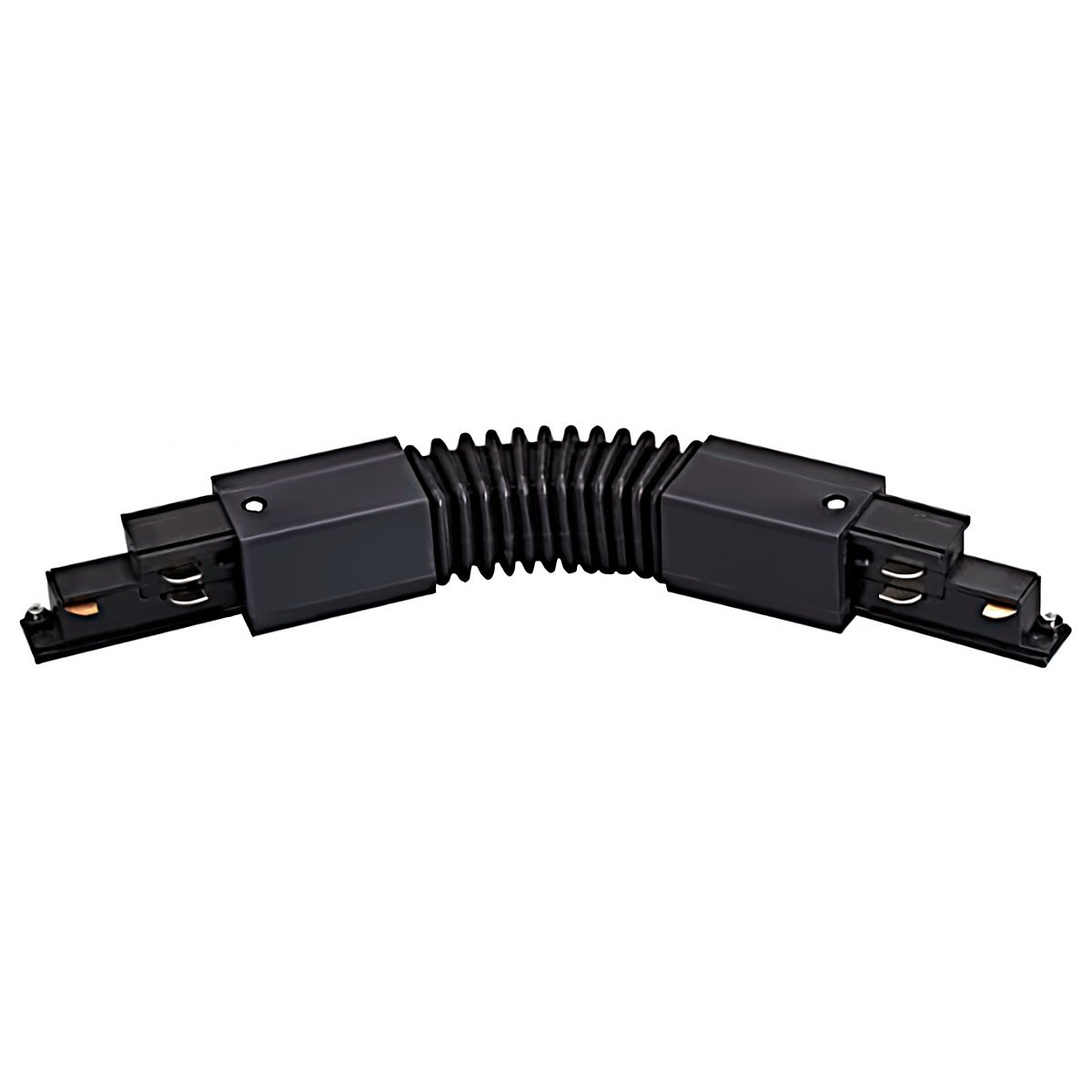

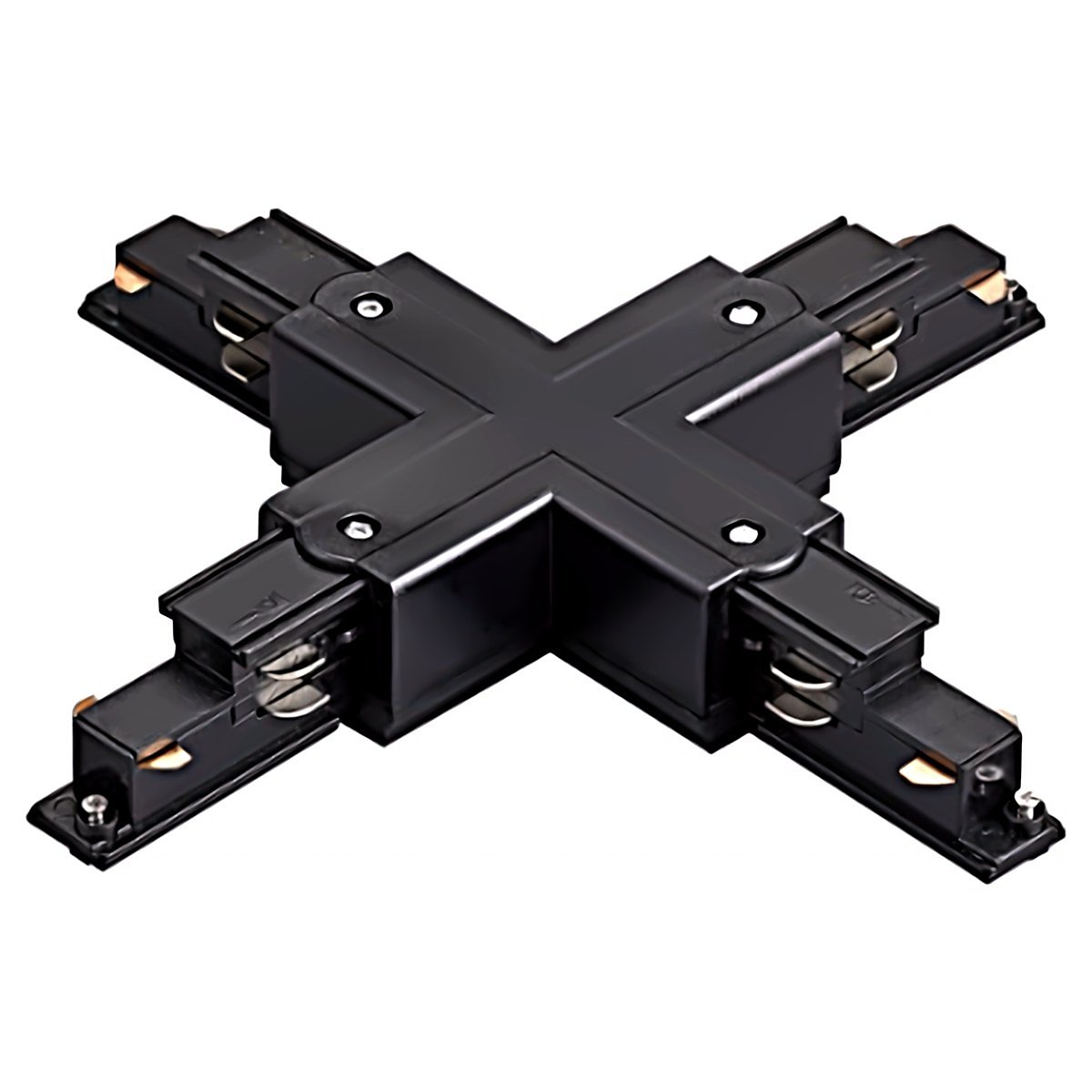

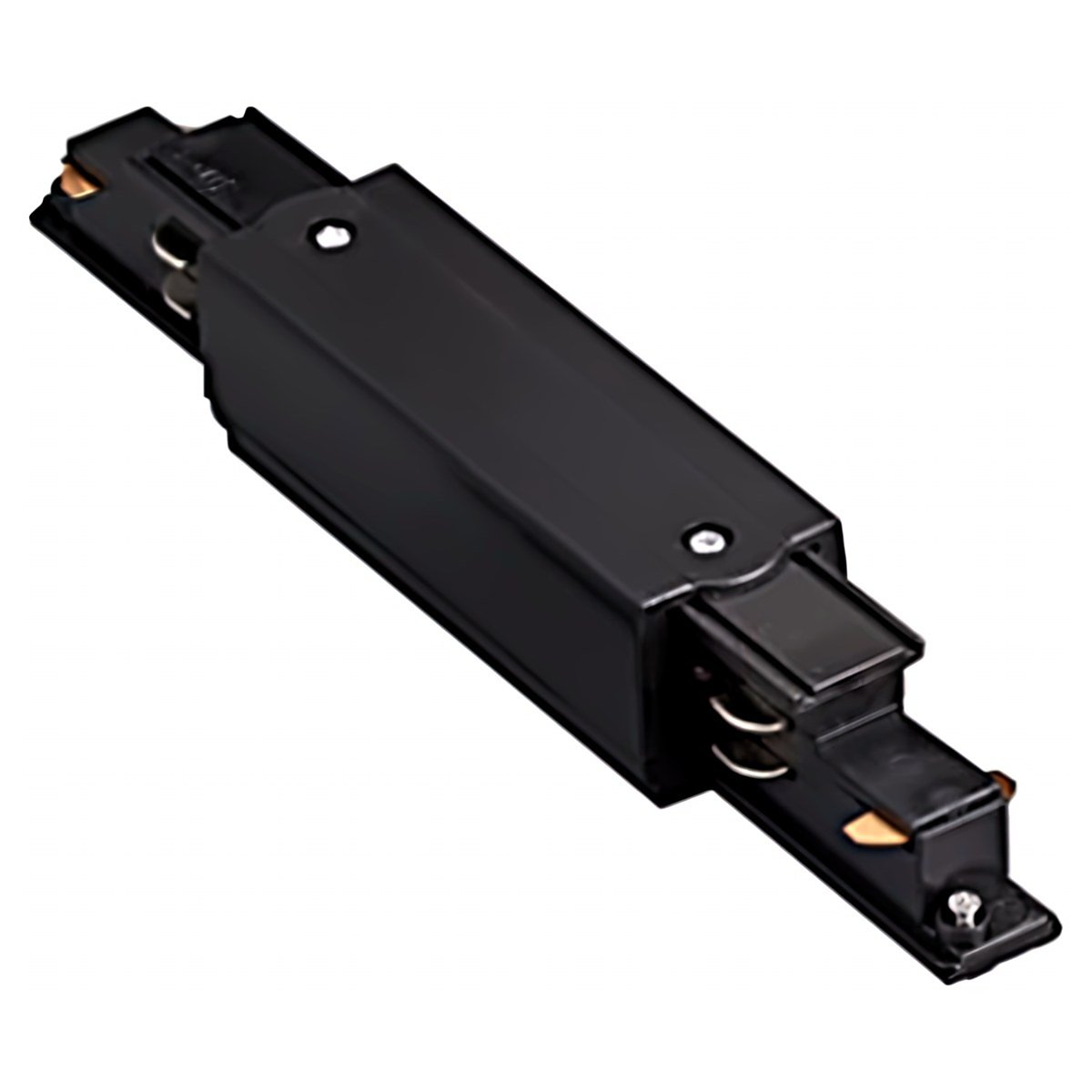

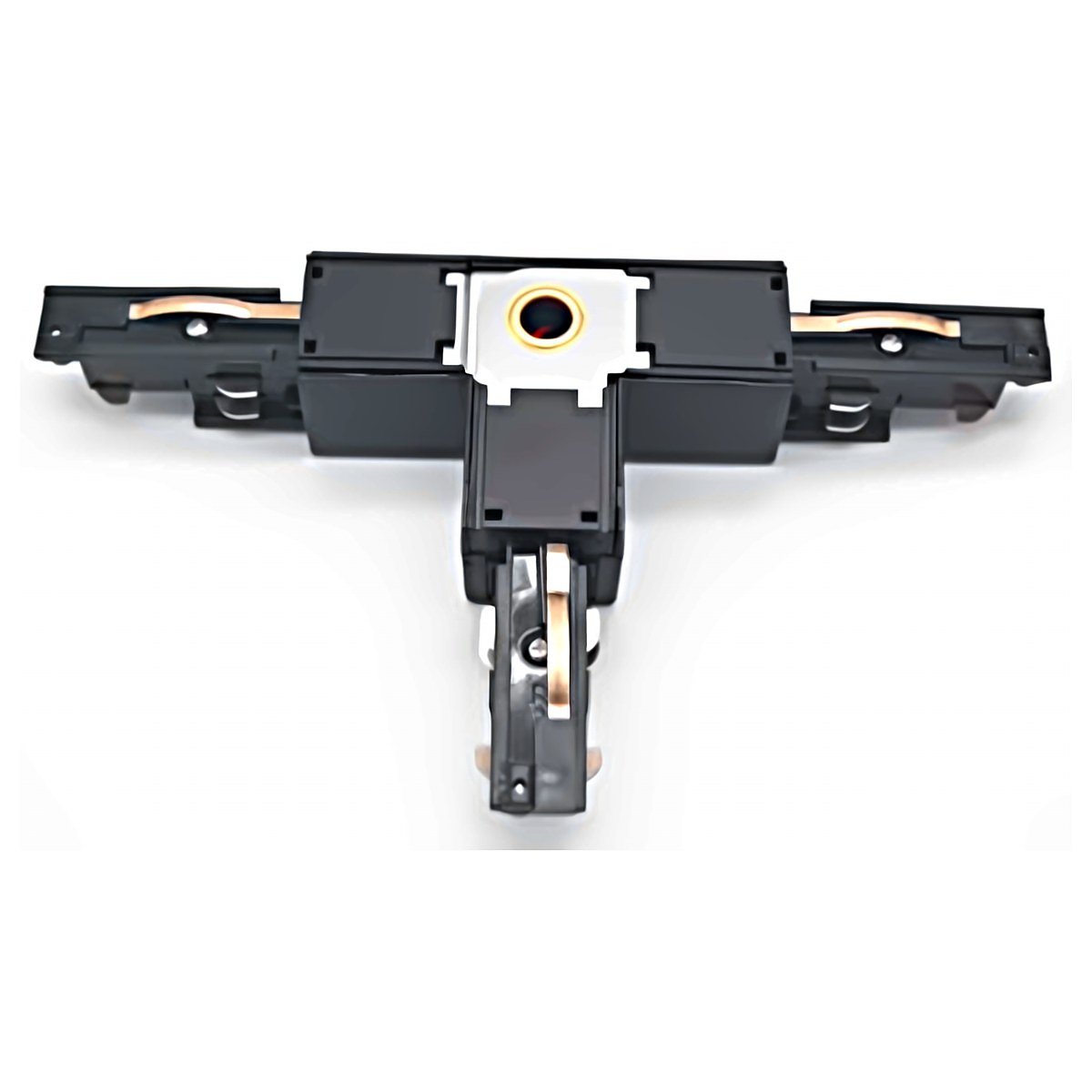

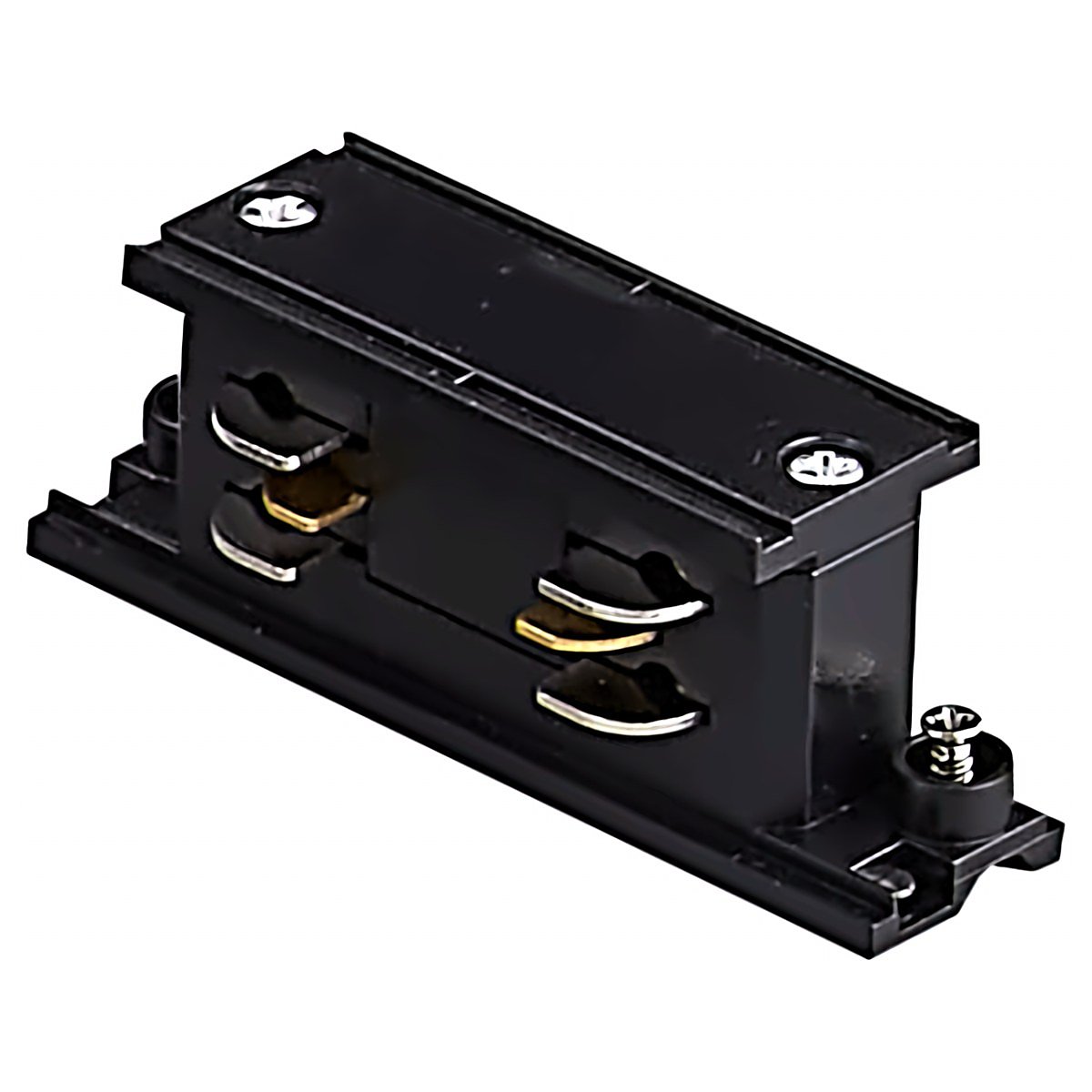

Connectors
Joins maintaining continuity across all conductors.

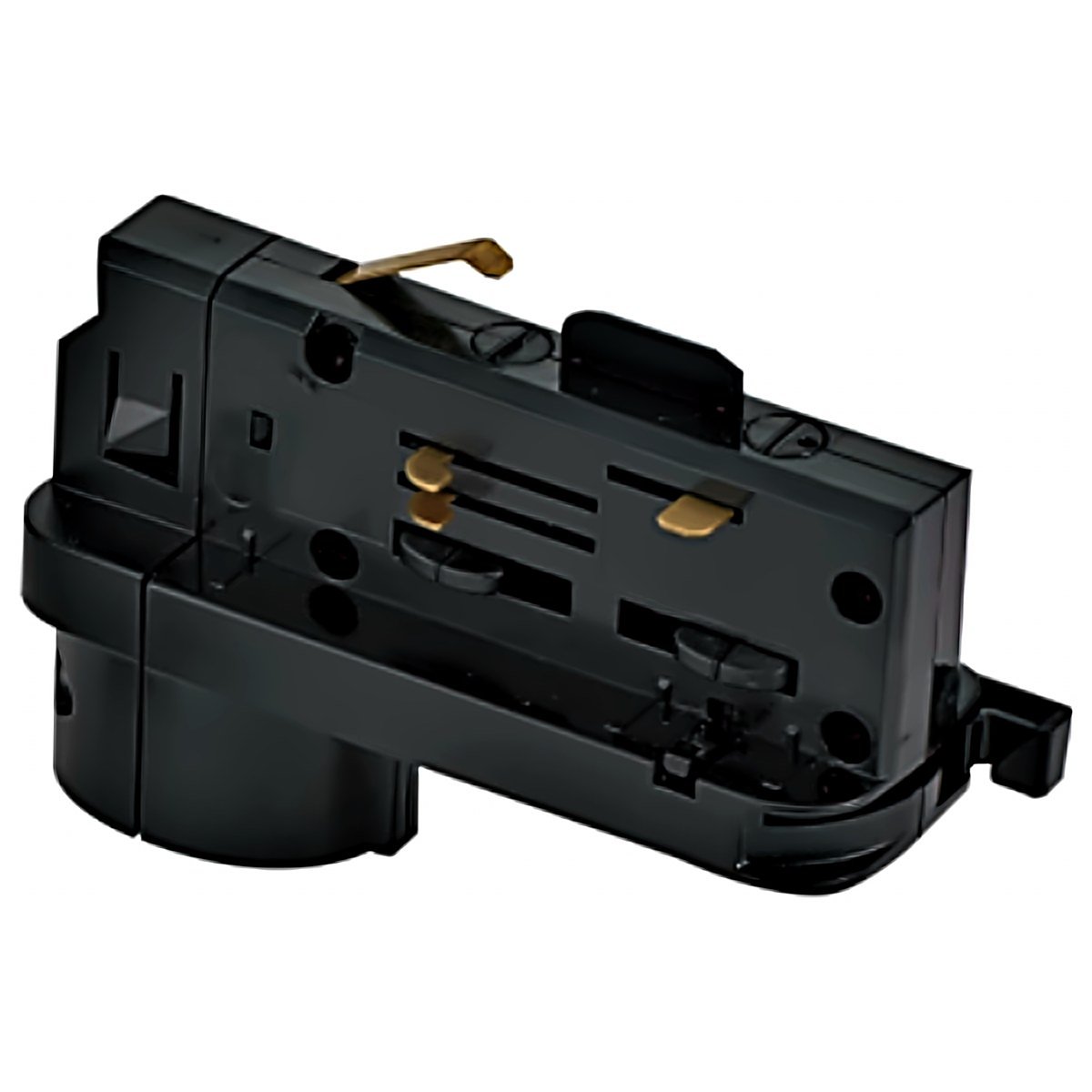

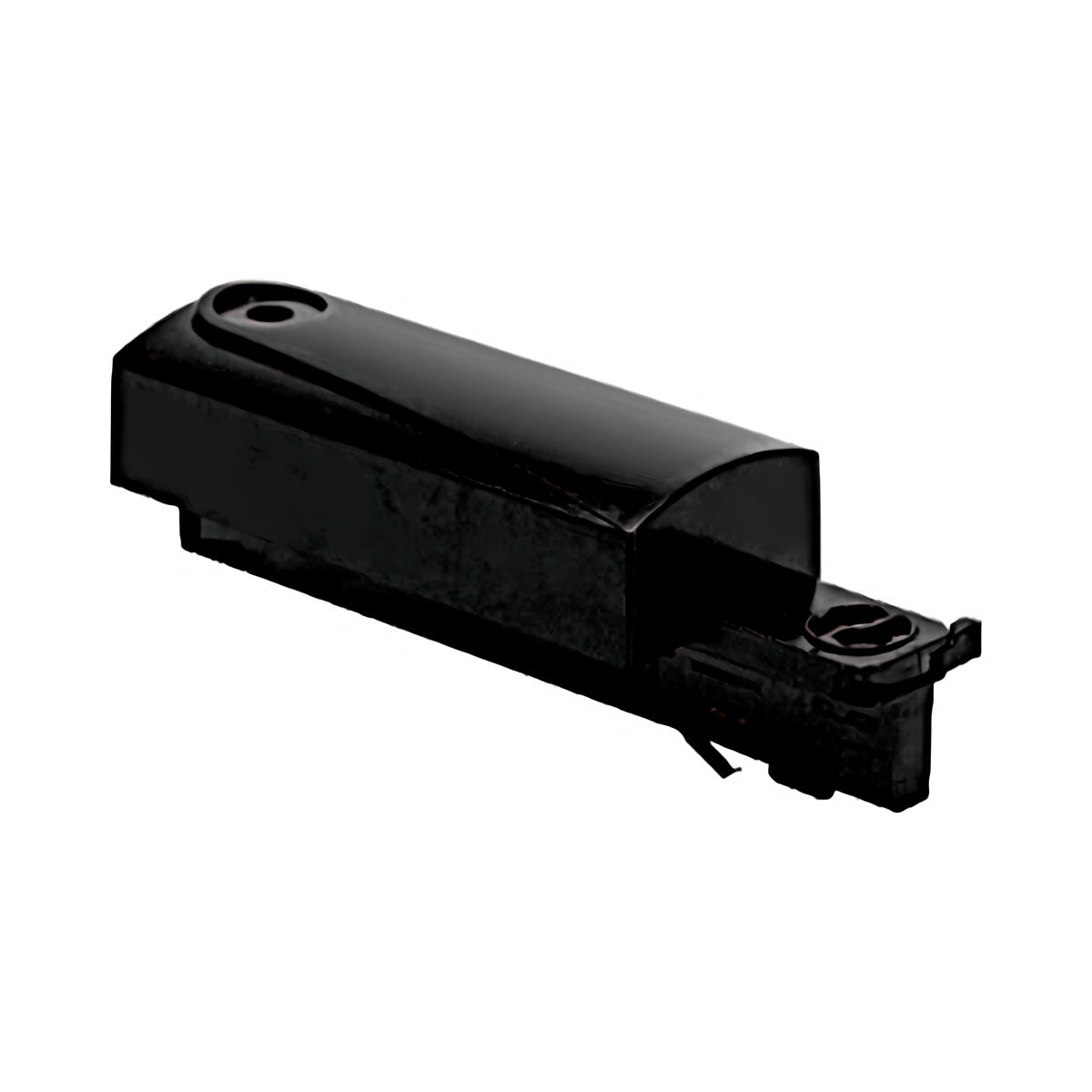

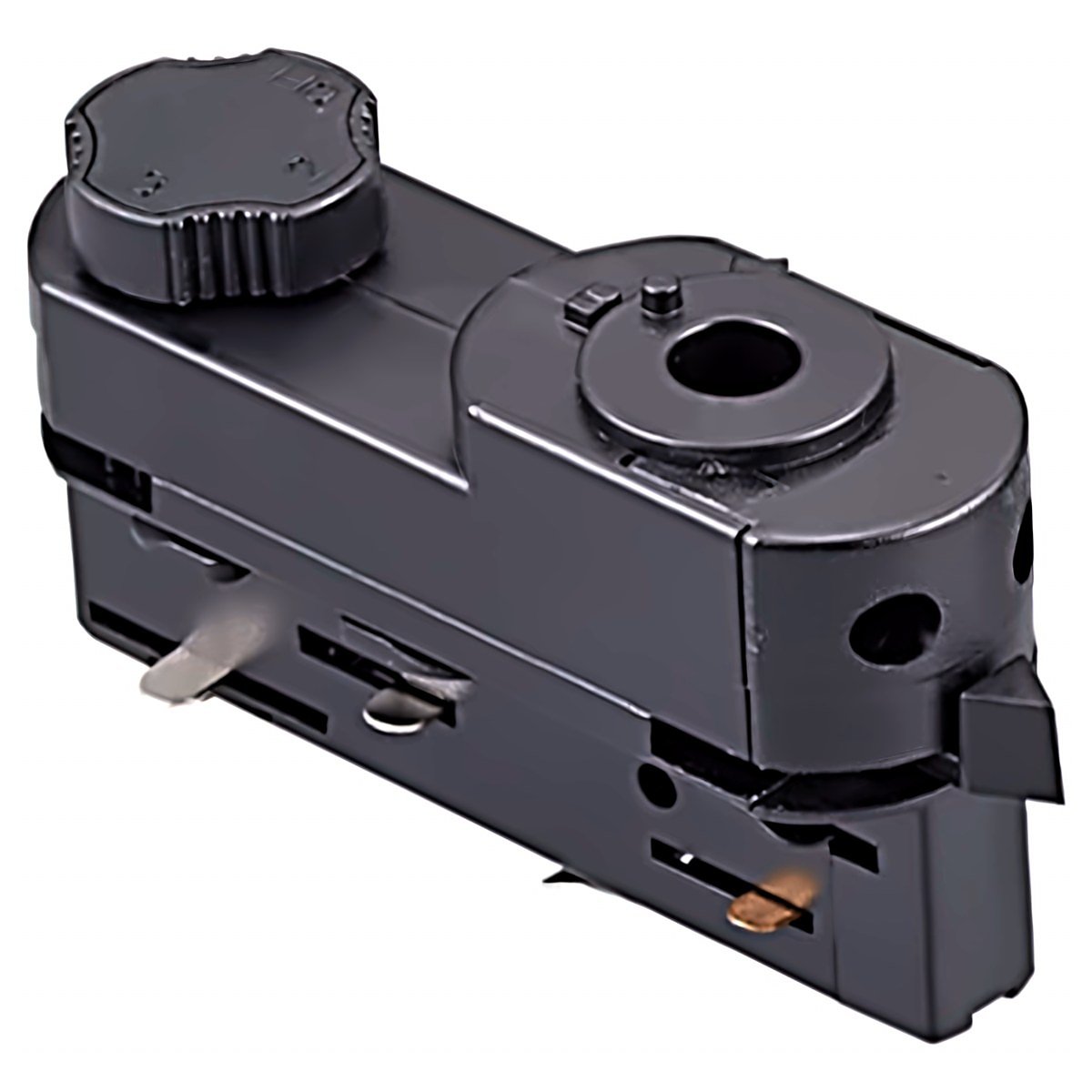

DALI components
Adaptors and control box that bring a DALI signal onto the extra conductors.

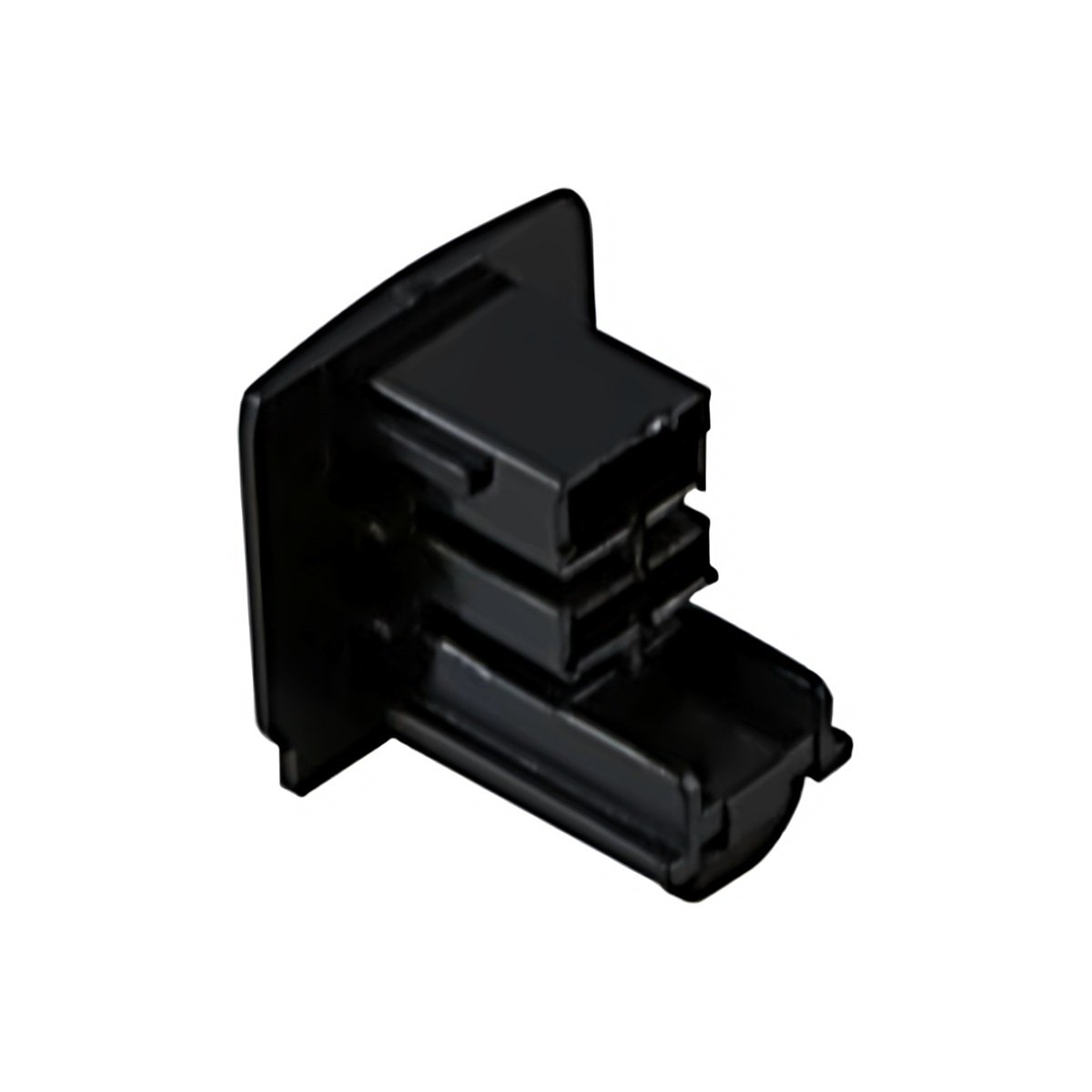

End caps
Closing components for the chosen mounting.
Installation forms
Surface-mount
Standard route for large commercial ceilings.
Recessed
Flush installation for architectural ceilings.
Suspended
Where the run needs to sit below an open soffit.
Where this system is used
Galleries & Museums
Multiple scene settings across one space.
Hotels
Large public areas with scheduled scenes.
Showrooms
Zoned control over large floor areas.
Illustrative scene — representative application.
System parameters
Typical electrical and mechanical parameters for the 6-wire track system. Figures are confirmed per model on quotation.
| Parameter | Value |
|---|---|
| System voltage | 220–240 V AC |
| Circuits | 3 power + extra conductors for control |
| Control | DALI addressing / scene control via spare conductors |
| Max load | 3 × ≈ 10 A (one per circuit, model-dependent) |
| Material | Anodised aluminium |
| Finish | White / Black / Silver |
| Certification | CE, RoHS |
Module matrix
Mains-voltage luminaires from the LUXERA F1M, F1 Plus, L2 Plus, Vector, E02 and Shapeable series. DALI and scene control are confirmed per selected model.
L2 Plus
10–15 W · 15° / 24° / 38° / 50°
L2 Plus
20–30 W · 15° / 24° / 38° / 50°
Vector
10–20 W · 20° / 25° / 38° / 60°
Vector
20–30 W · 18° / 28° / 44° / 60°
F1M Modular
10–40 W · 15° / 24° / 38° / 60°
F1 Plus
10–40 W · 15° / 24° / 36° / 45°
E02 Zoomable
5–35 W · 15°–55° adjustable
Shapeable
5–35 W · 20°–35° shapeable
Full specifications, photometric files and installation drawings are provided by our sales team per model. See the product range.
