24V · Ultra-narrow
05 Series
Ultra-narrow 5 mm magnetic rail for the most discreet installations.
The 05 Series is our slimmest magnetic track at just 5 mm profile. Its minimal visible line disappears into ceilings and joinery, making it ideal for detail-rich retail, gallery and high-end residential projects where the architecture — not the fixture — should lead.
- System voltage
- DC 24V safety voltage
- Profile width
- 5 mm (ultra-narrow)
- Rail lengths
- 1000 / 1500 / 2000 / 3000 mm
- Finishes
- White / Black
- Power supply
- Integrated 24V driver 100W
- Module types
- Floodlight, Grille, Adjustable grille, Track light, Pendant
- Typical power
- 2 – 16 W per module
- Application
- Indoor only
Modules & components (selected):
| Type | Module | Power | Size |
|---|---|---|---|

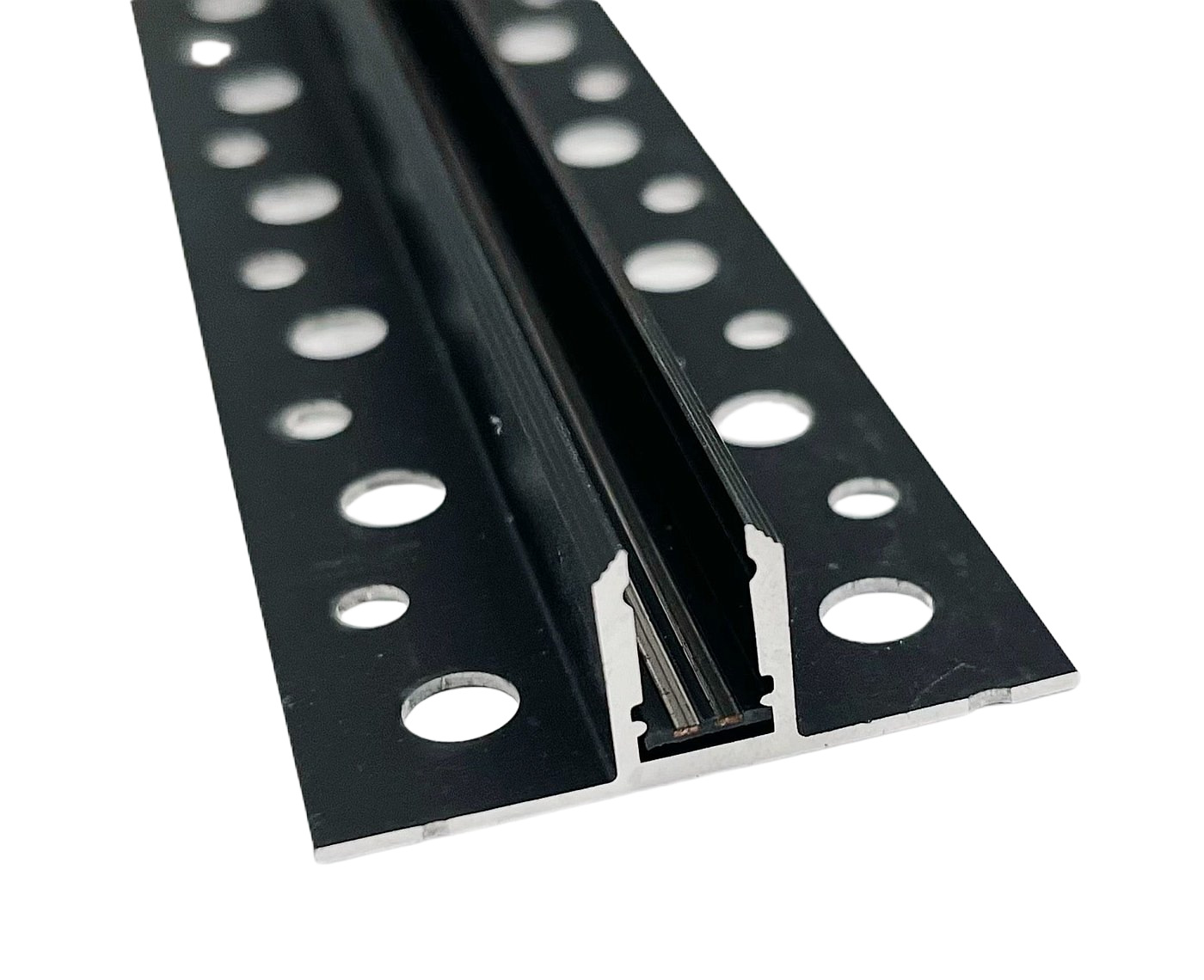

| Rail | 05 Series Rail | — | L1000 × W39 × H14 mm |

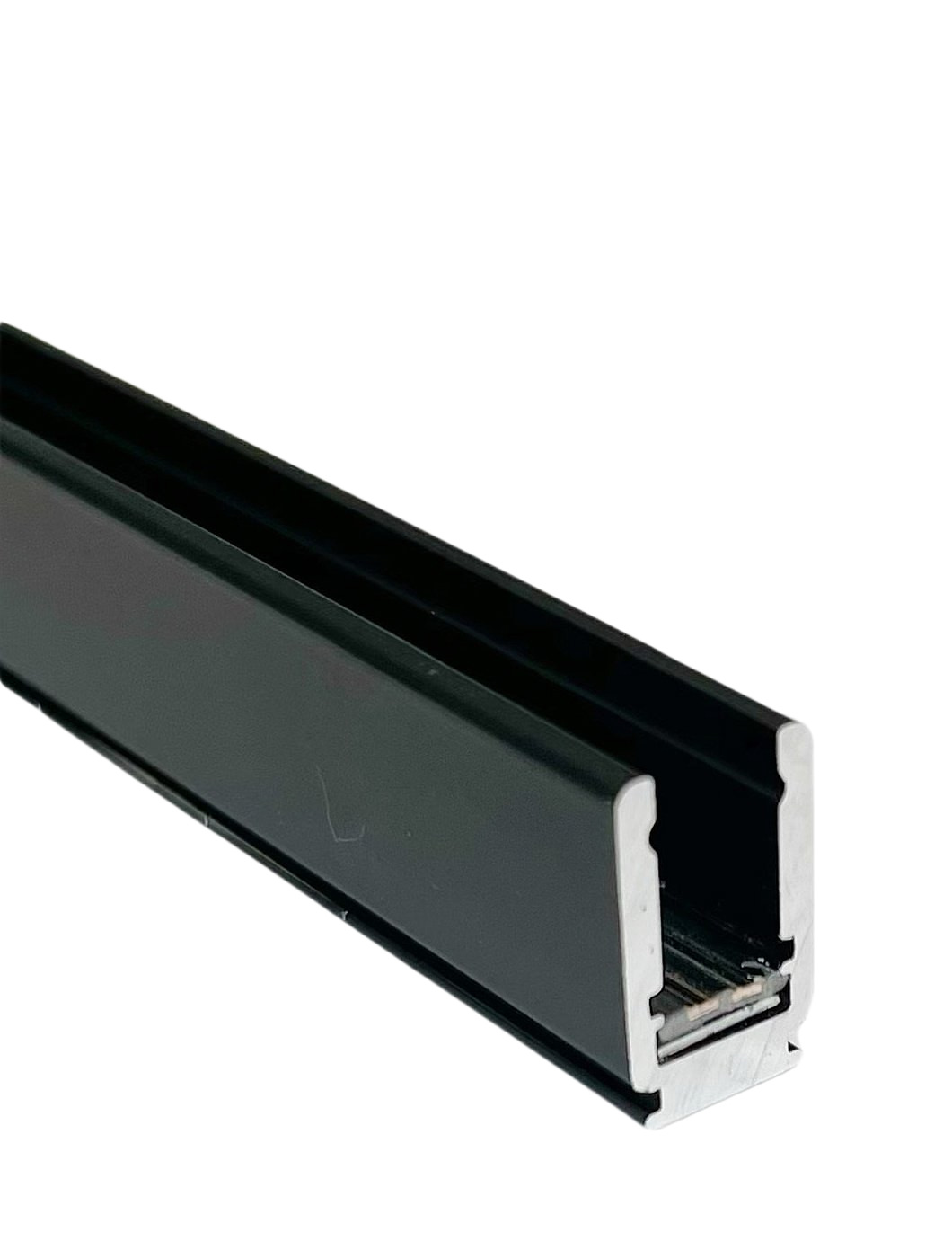

| Rail (slim) | 05 Series Slim Rail | — | L1000 × W9 × H15 mm |

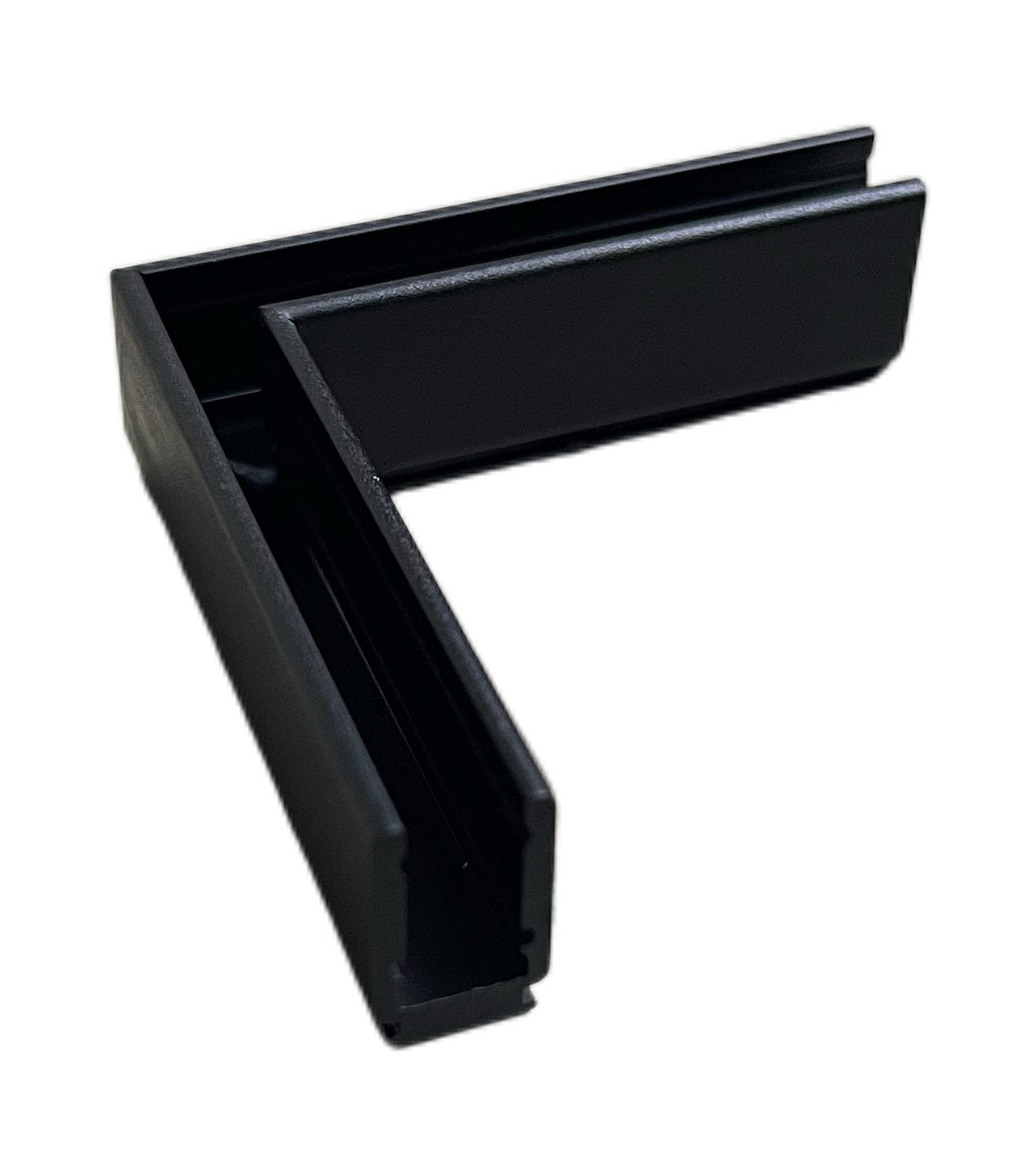

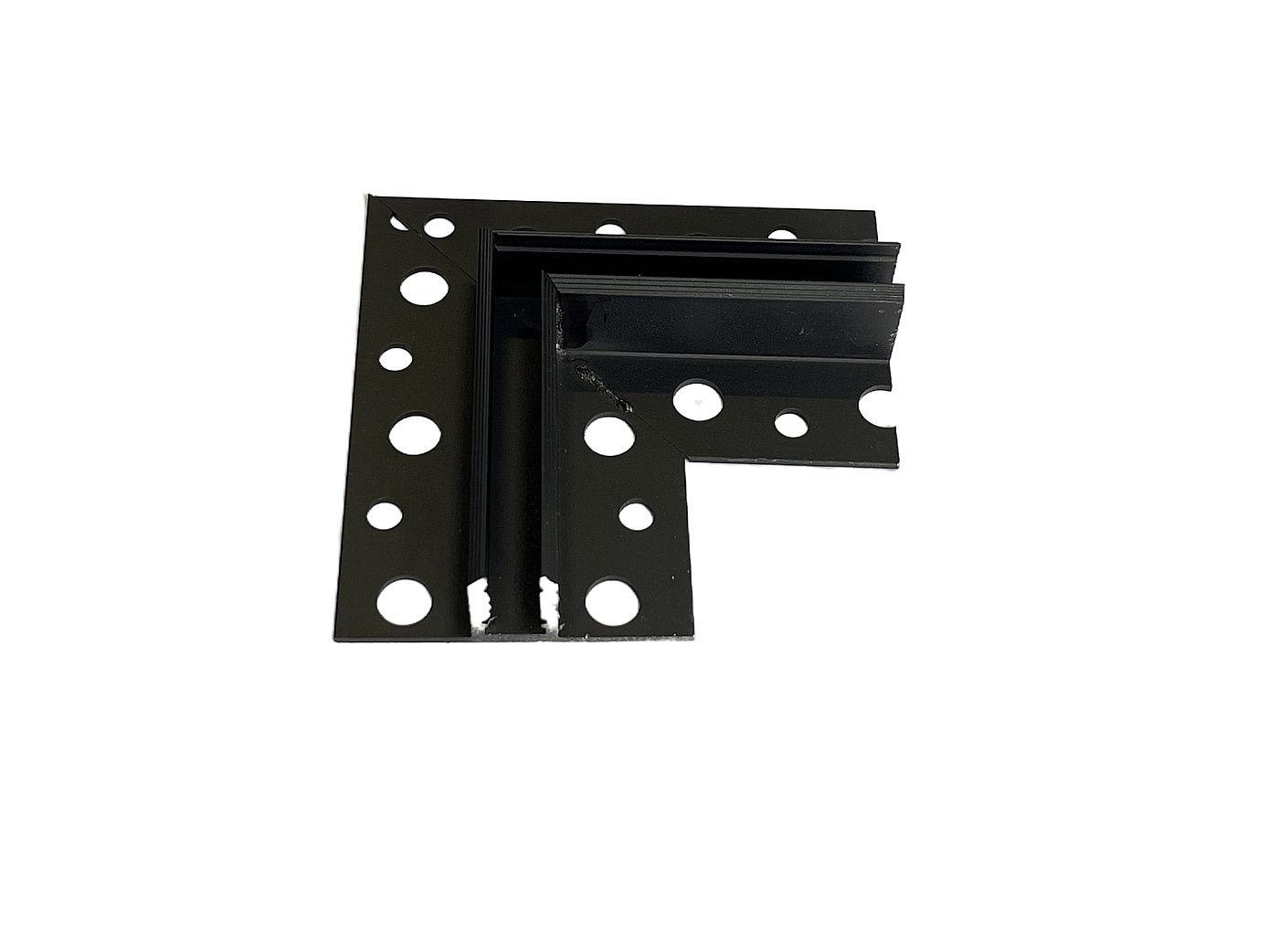

| Connector | Horizontal corner | — | 50 × 50 mm |

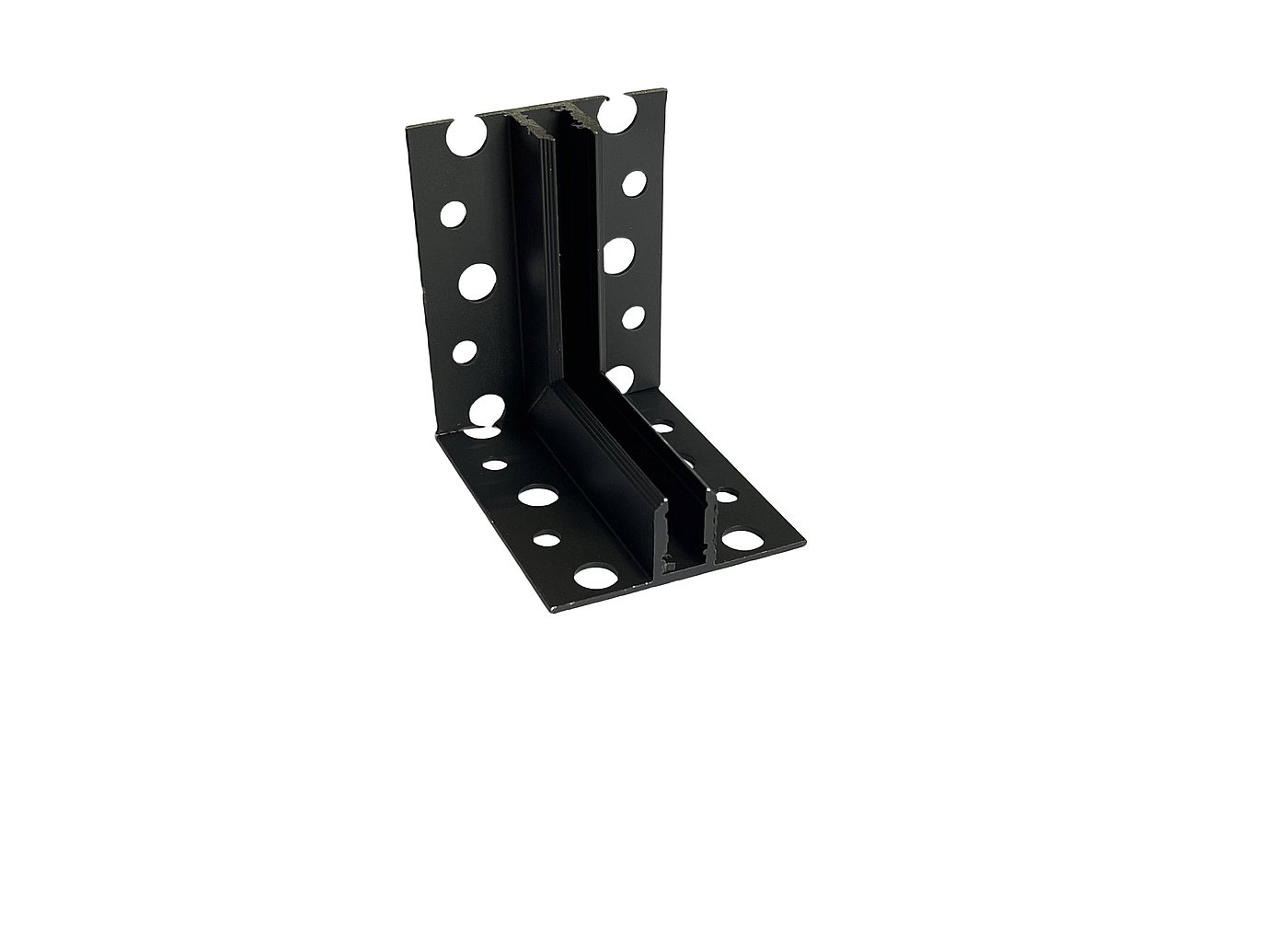

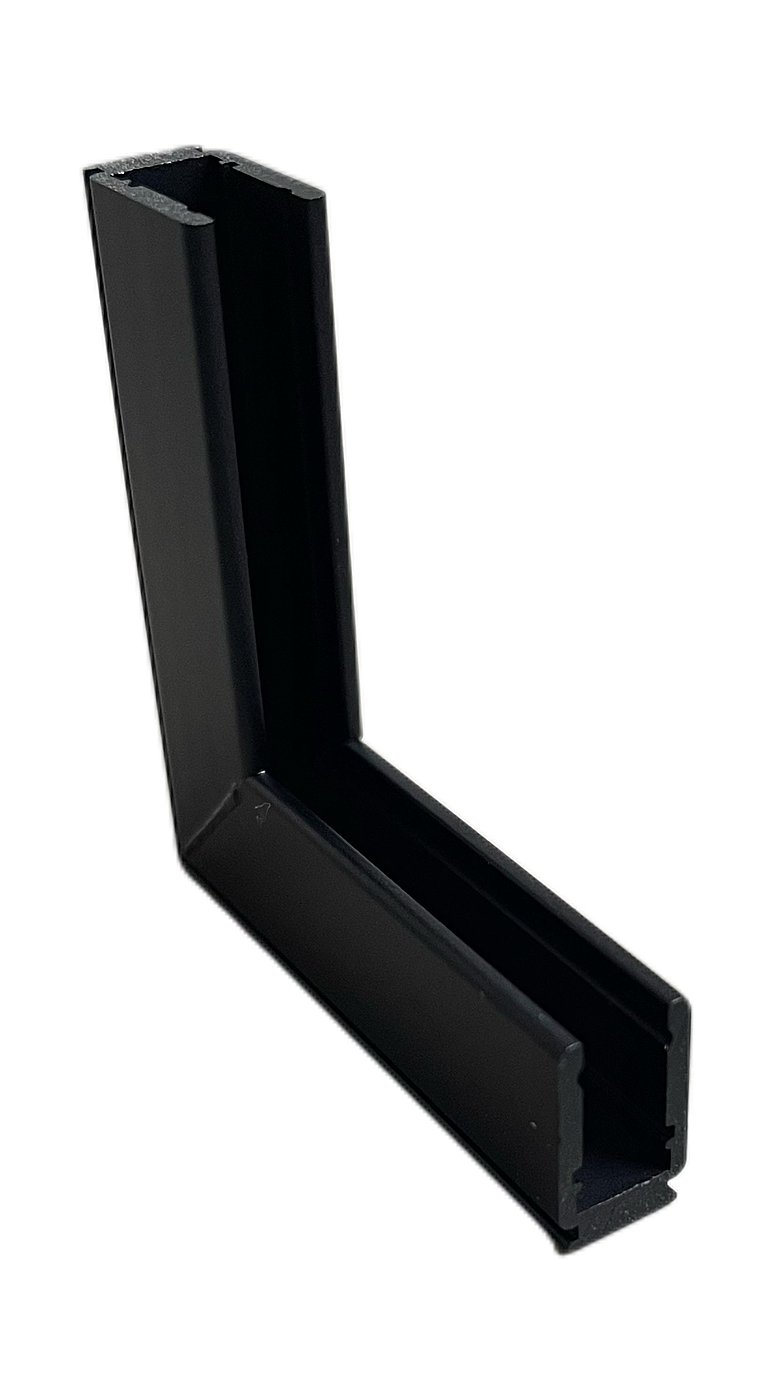

| Connector | Vertical corner | — | 50 × 50 mm |
| Connector | Power feed head | — | L71.5 × 10 × 19 mm |
| Connector | Direct wire joiner | — | L195 × 5 × 10 mm |
| Module | Floodlight | 7 – 16 W | 300 – 600 × 10.5 × 5.5 mm |

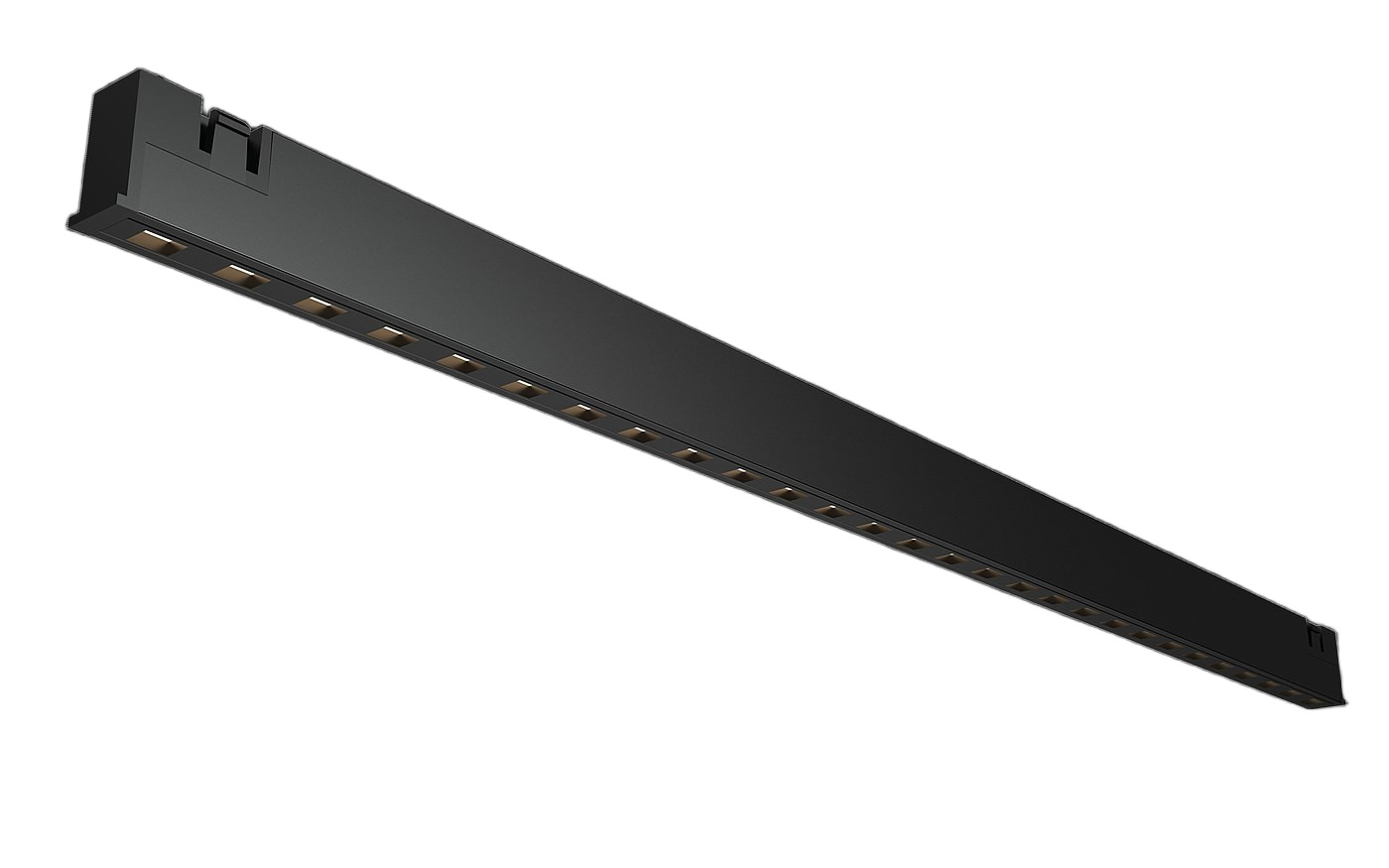

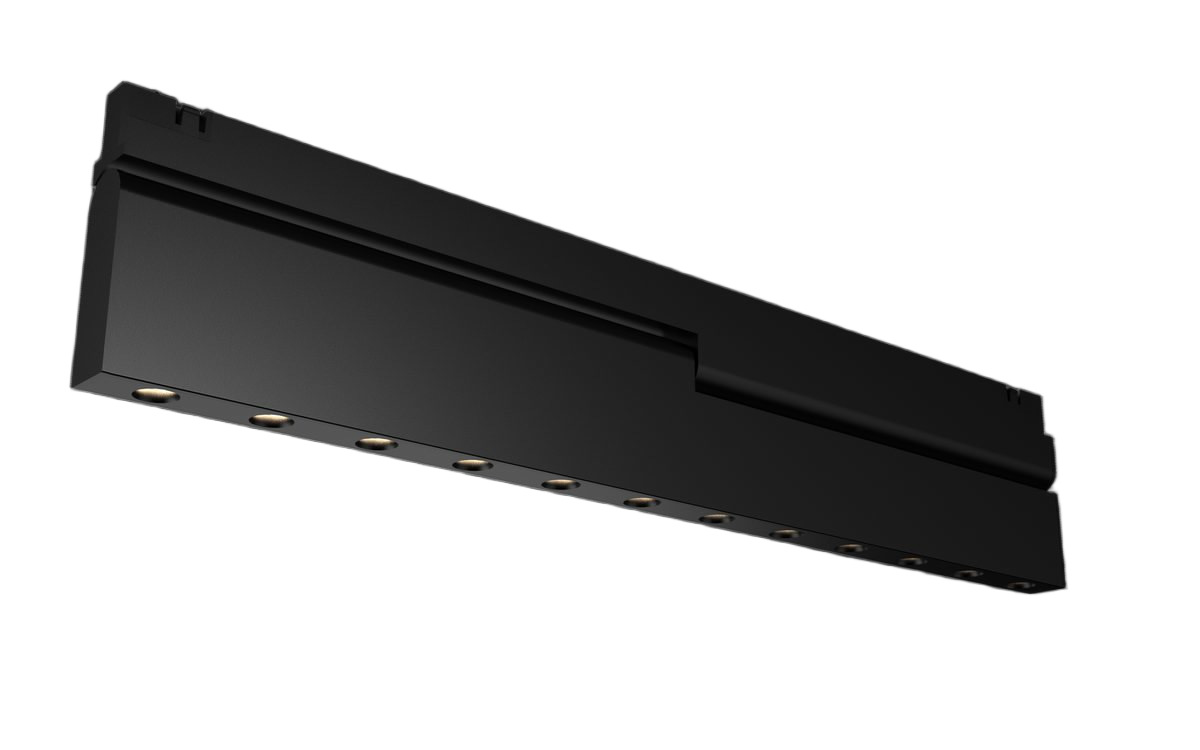

| Module | Grille light | 5 – 9 W | 205 – 405 × 10.5 × 5.5 mm |

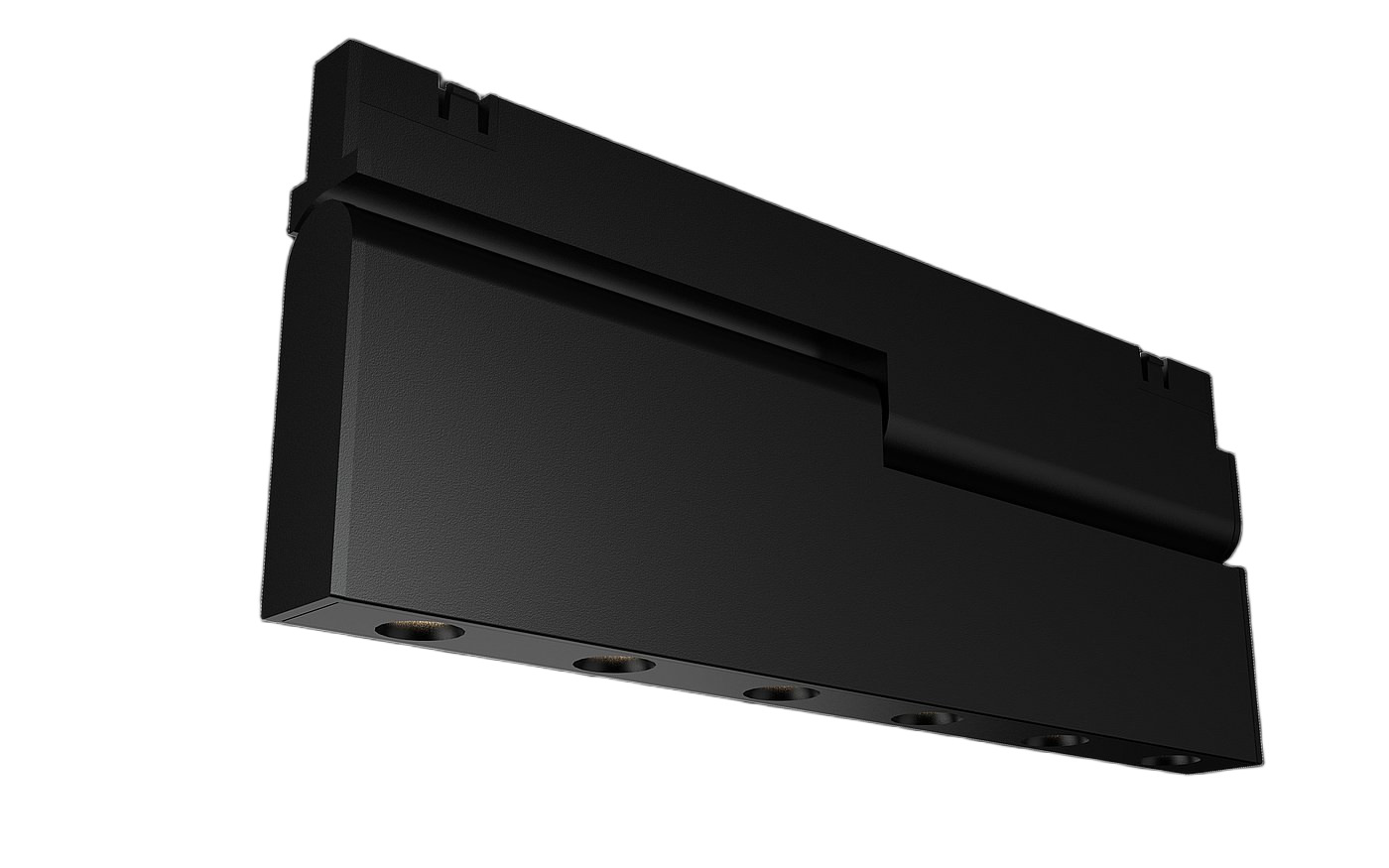

| Module | Adjustable grille | 6 – 11 W | 120 – 236 × 10.2 × 4.8 mm |

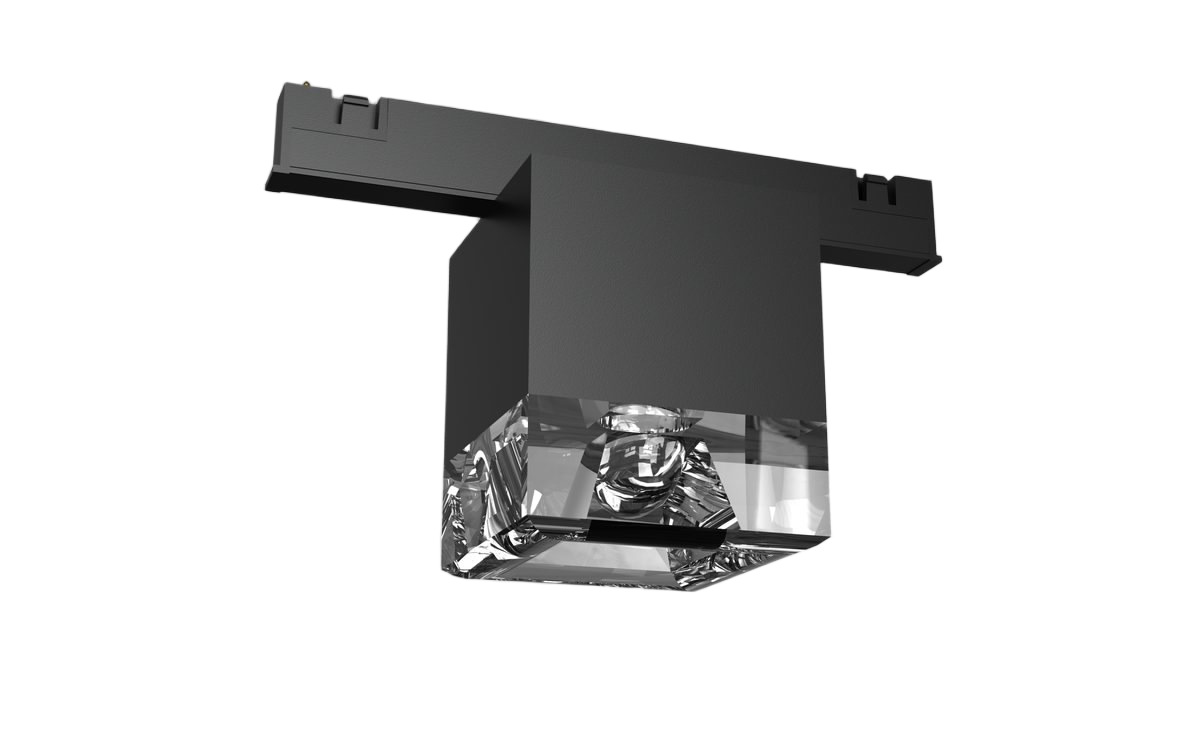

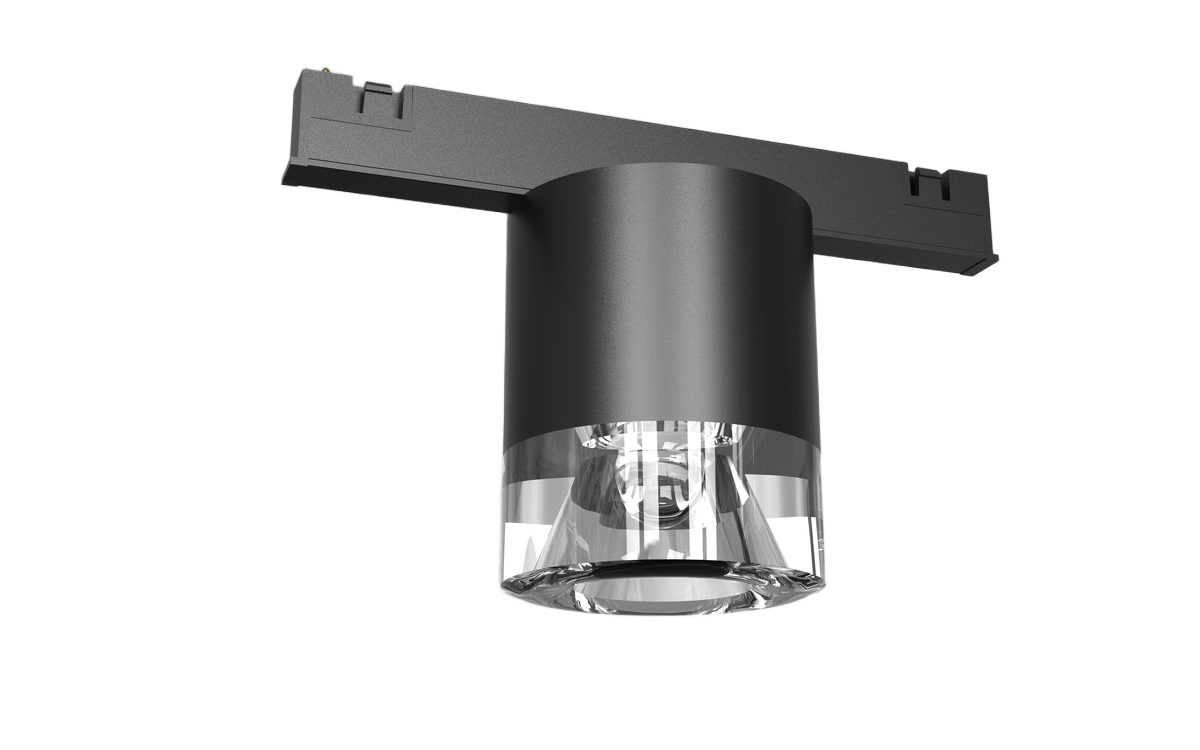

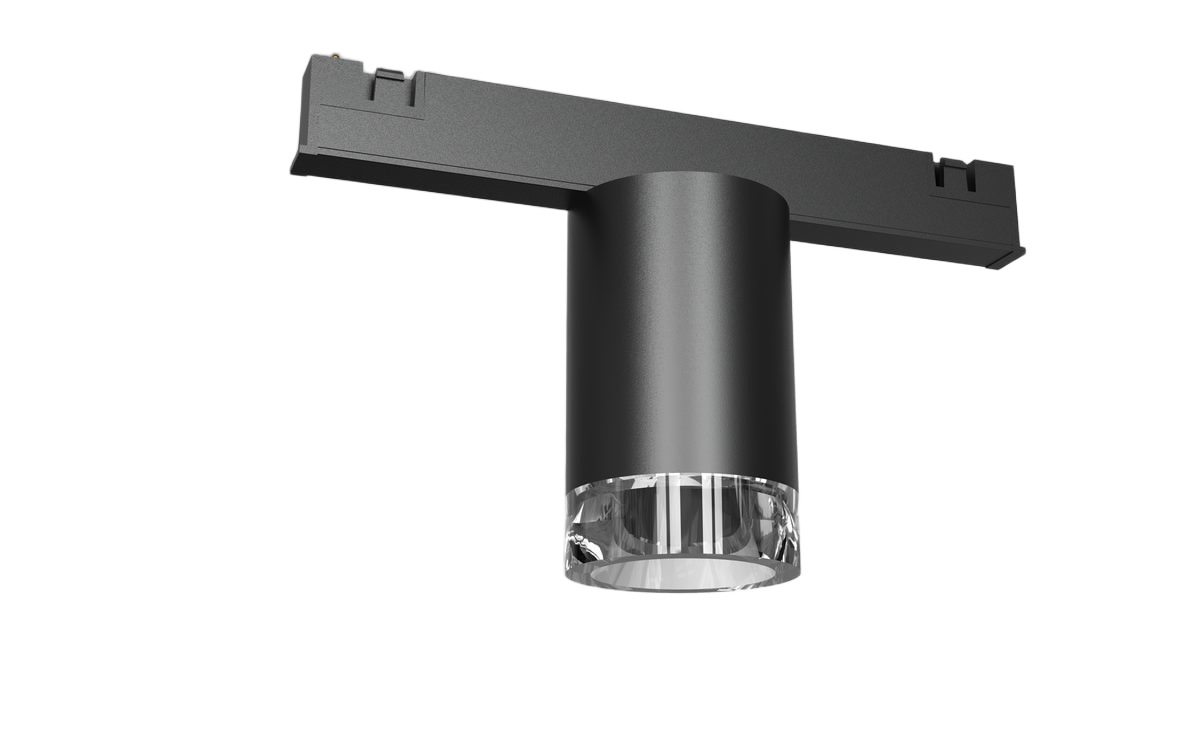

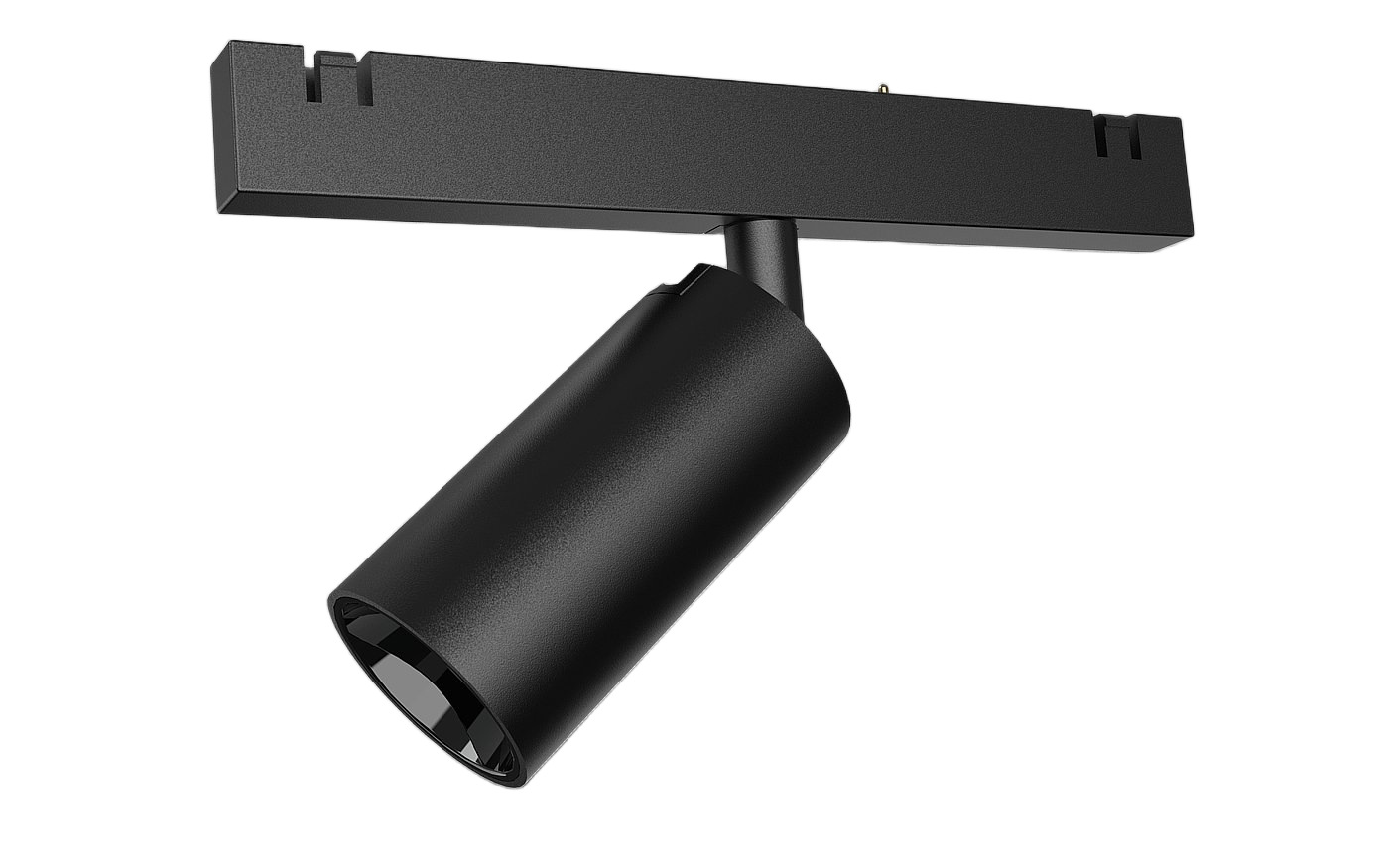

| Module | Track light | 2 – 9 W | Ø15 – Ø60 mm |

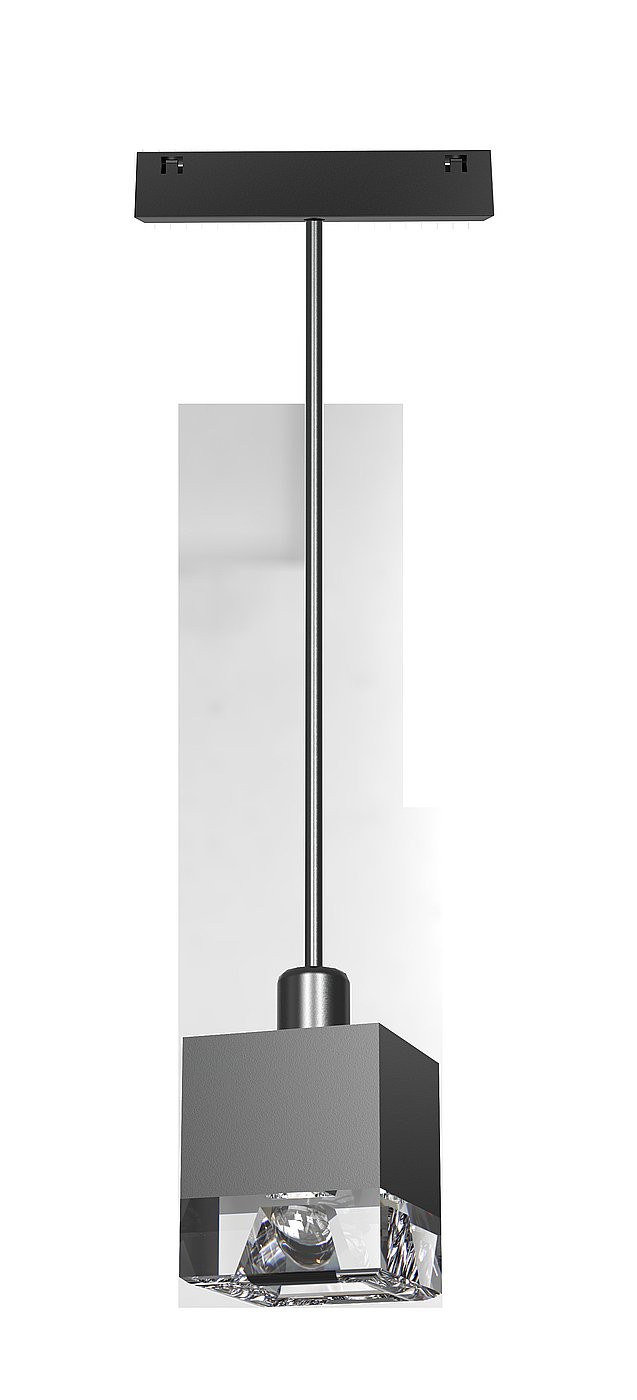

| Module | Pendant | 3 W | Ø32.5 × 100 × H39.5 mm |

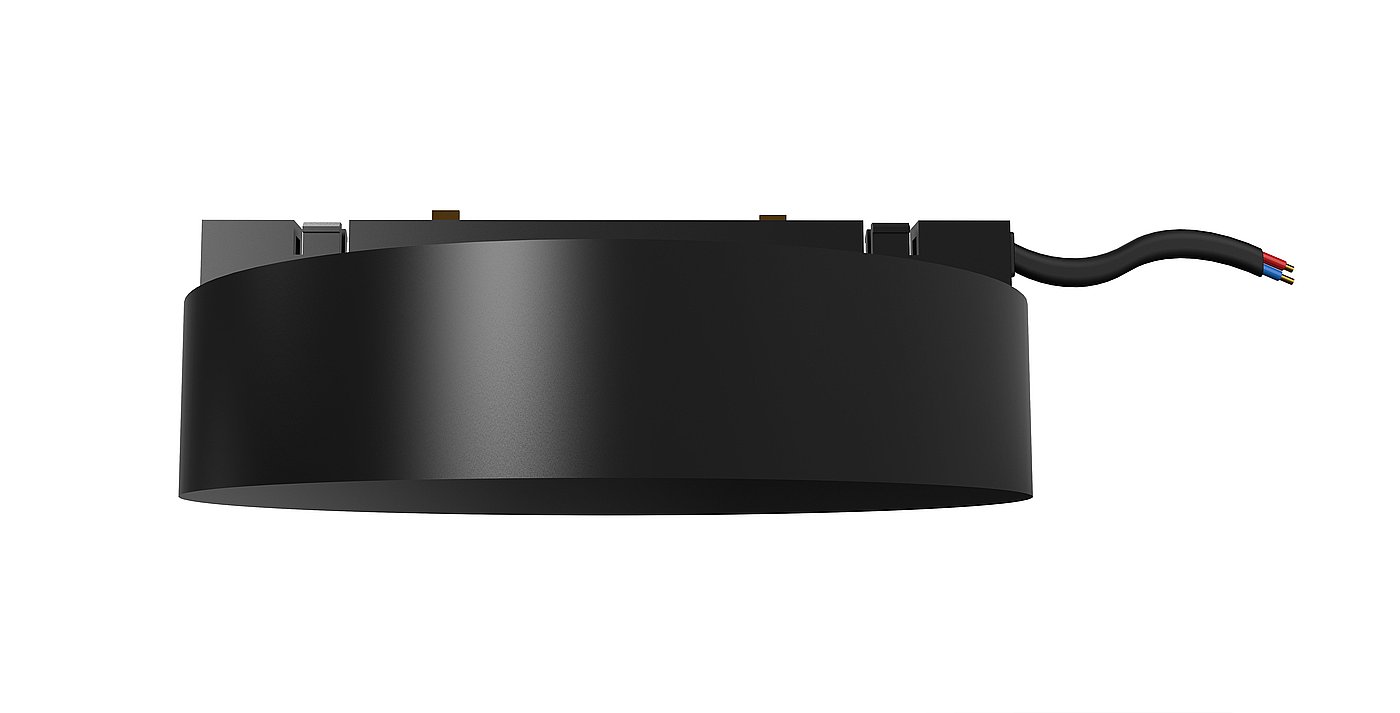

| Driver | Integrated 24V driver | 100 W | Ø90 × 200 mm |
