Track systems
The 4-Wire Track Lighting System
Three circuits on one rail. A single run can be switched and dimmed in groups, so a space can change scene without rewiring — the standard choice for European commercial interiors.
System components
Rails, connectors, power feeds and accessories in the LUXERA 4-Wire Track Lighting series — the parts that make up a complete run. Click any component for details.
Track Rail
Connectors
Power & Feed
End Caps
Suspension
Model suffixes: -B Black, -W White, -S Silver; -10 / -15 / -20 / -30 = 1 / 1.5 / 2 / 3 m. Exact codes are confirmed on quotation.
Specifications
Model codes
Suffixes: -B Black, -W White, -S Silver. Rail lengths: -10 = 1 m, -15 = 1.5 m, -20 = 2 m, -30 = 3 m. Exact codes are confirmed on quotation.
Send the model code with your quantity — we reply within one business day.
What the system includes
Rails, adapters, connectors, power feeders, end caps and suspension kits, supplied matched.

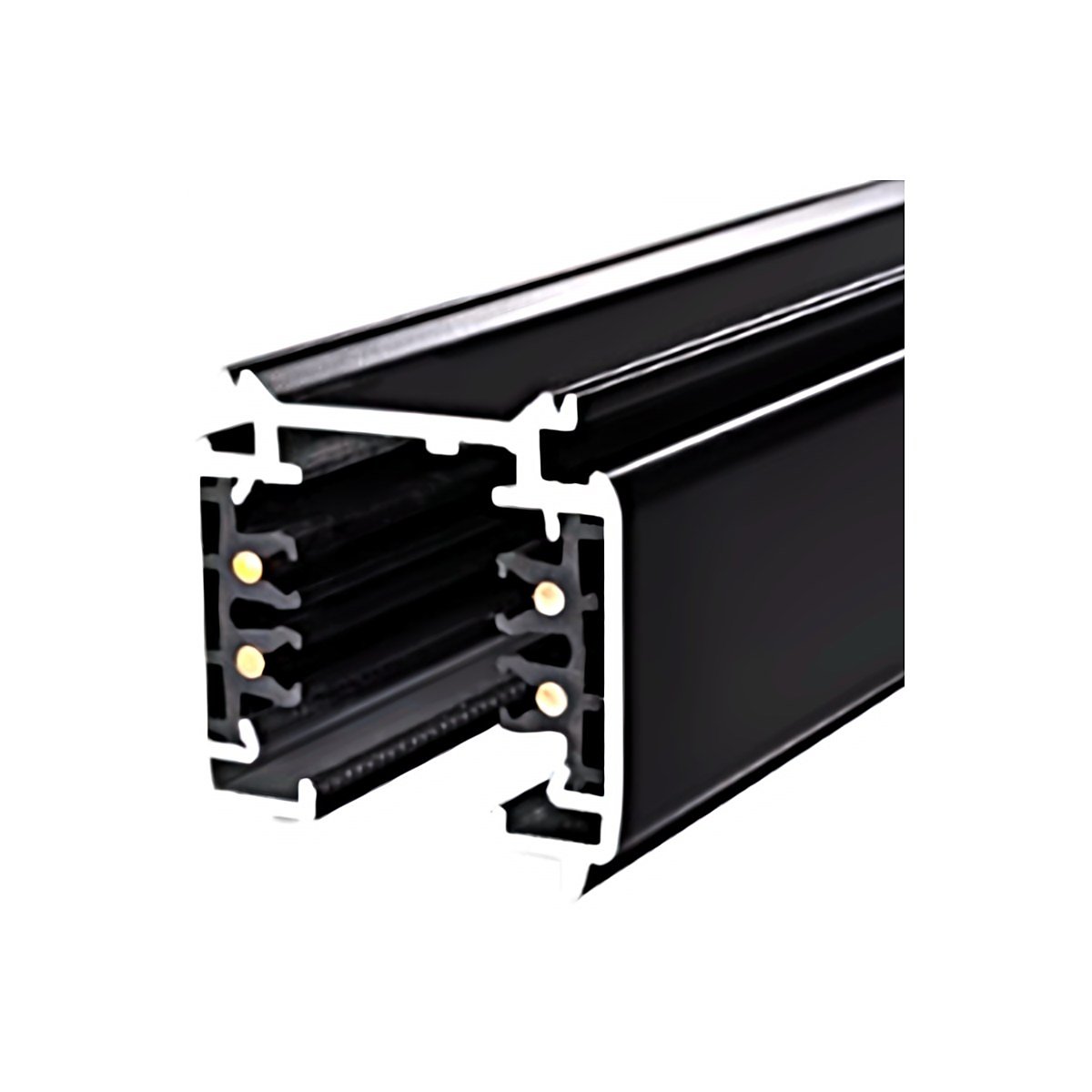

Track rail
Square 3-circuit profile, surface or recessed, 1-3 m. See the component list below.
Adapters
Circuit-selectable, matched to the rail and luminaire interface.

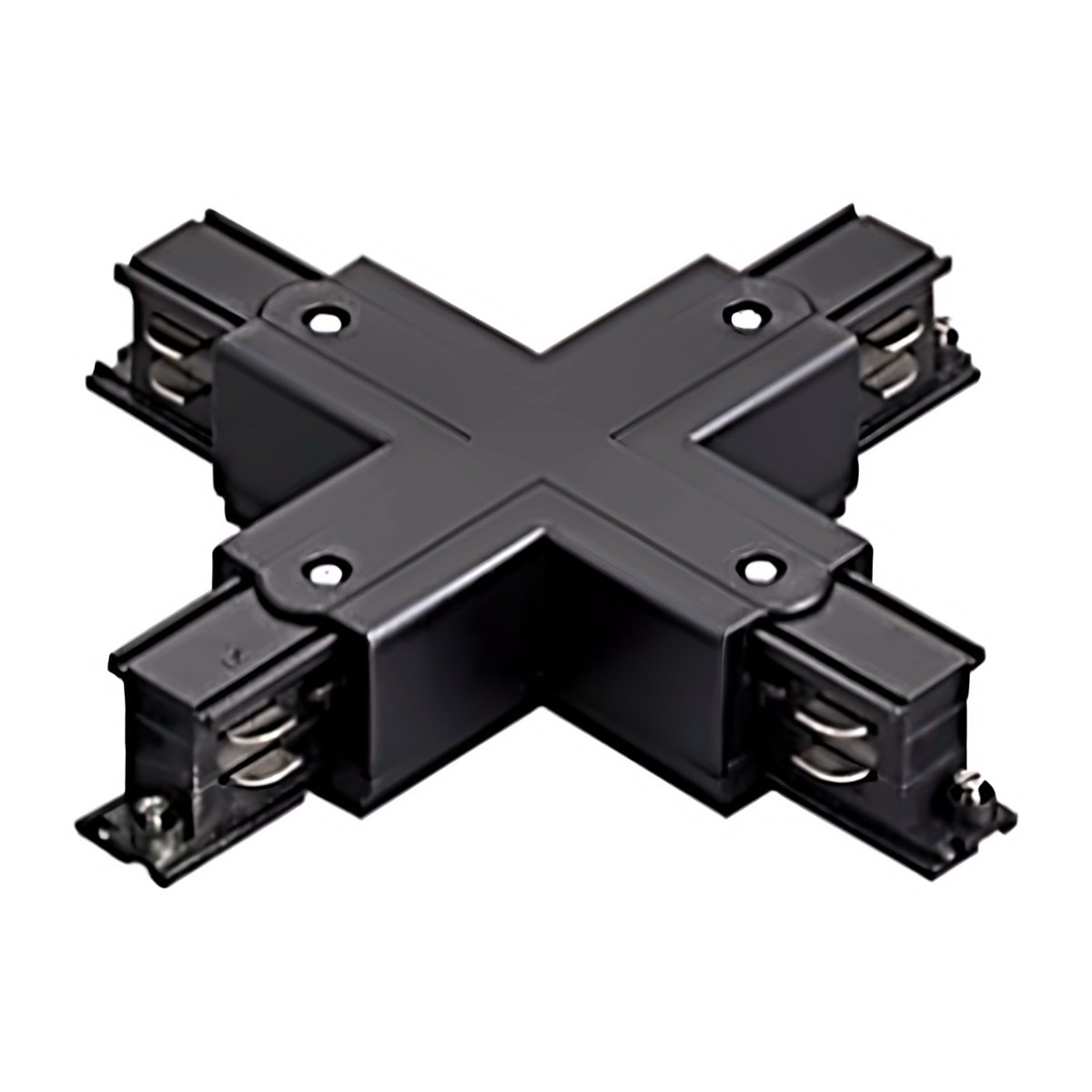

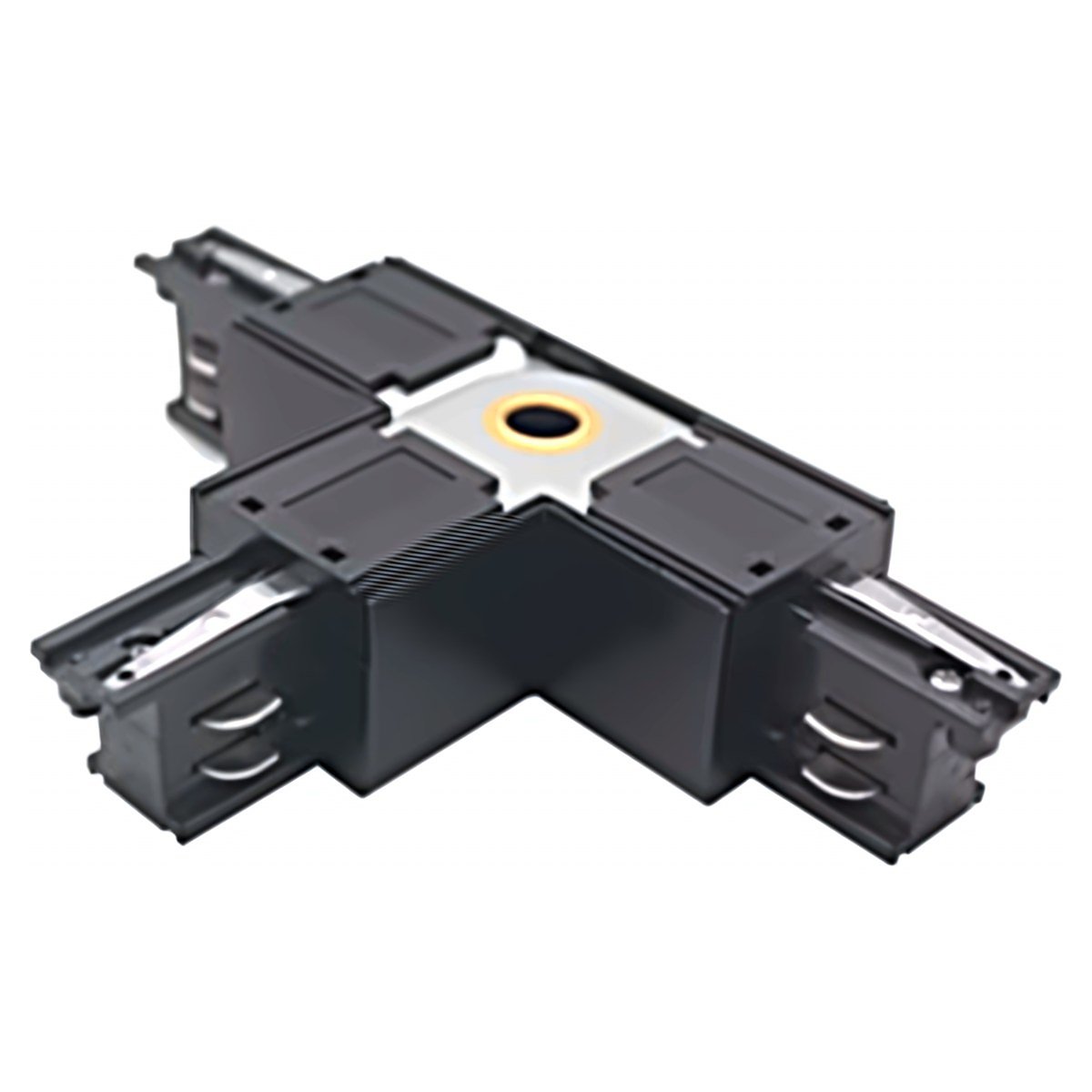

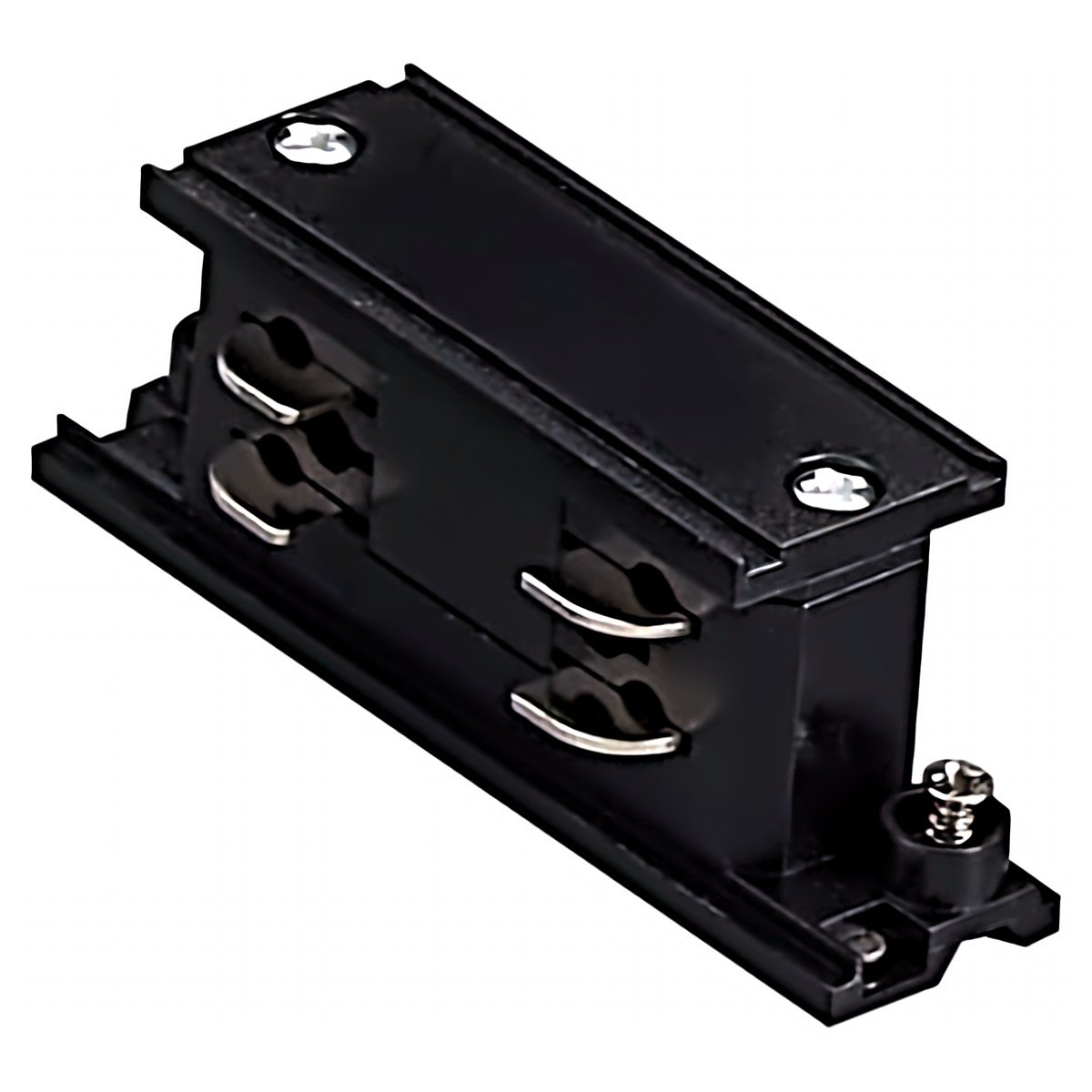

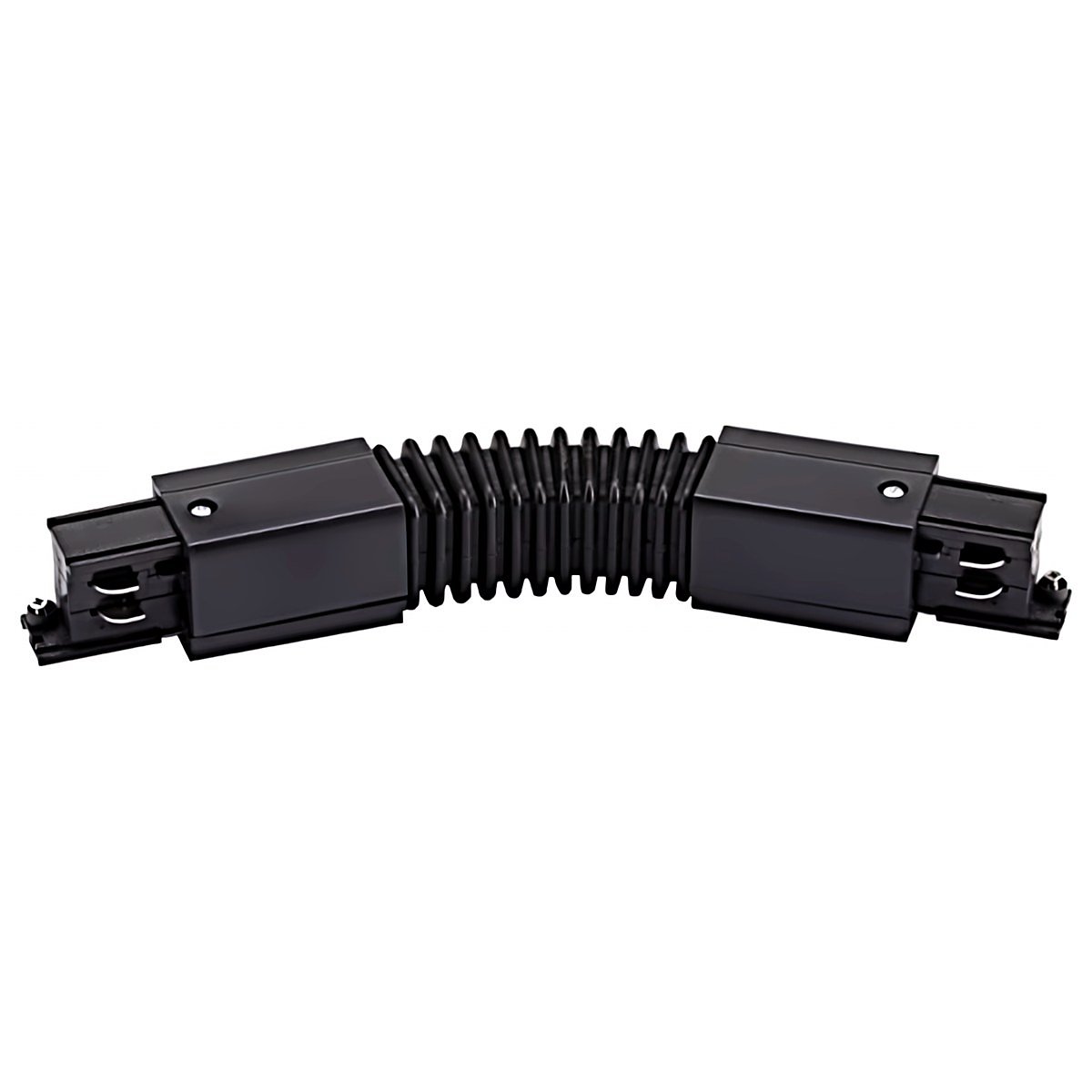

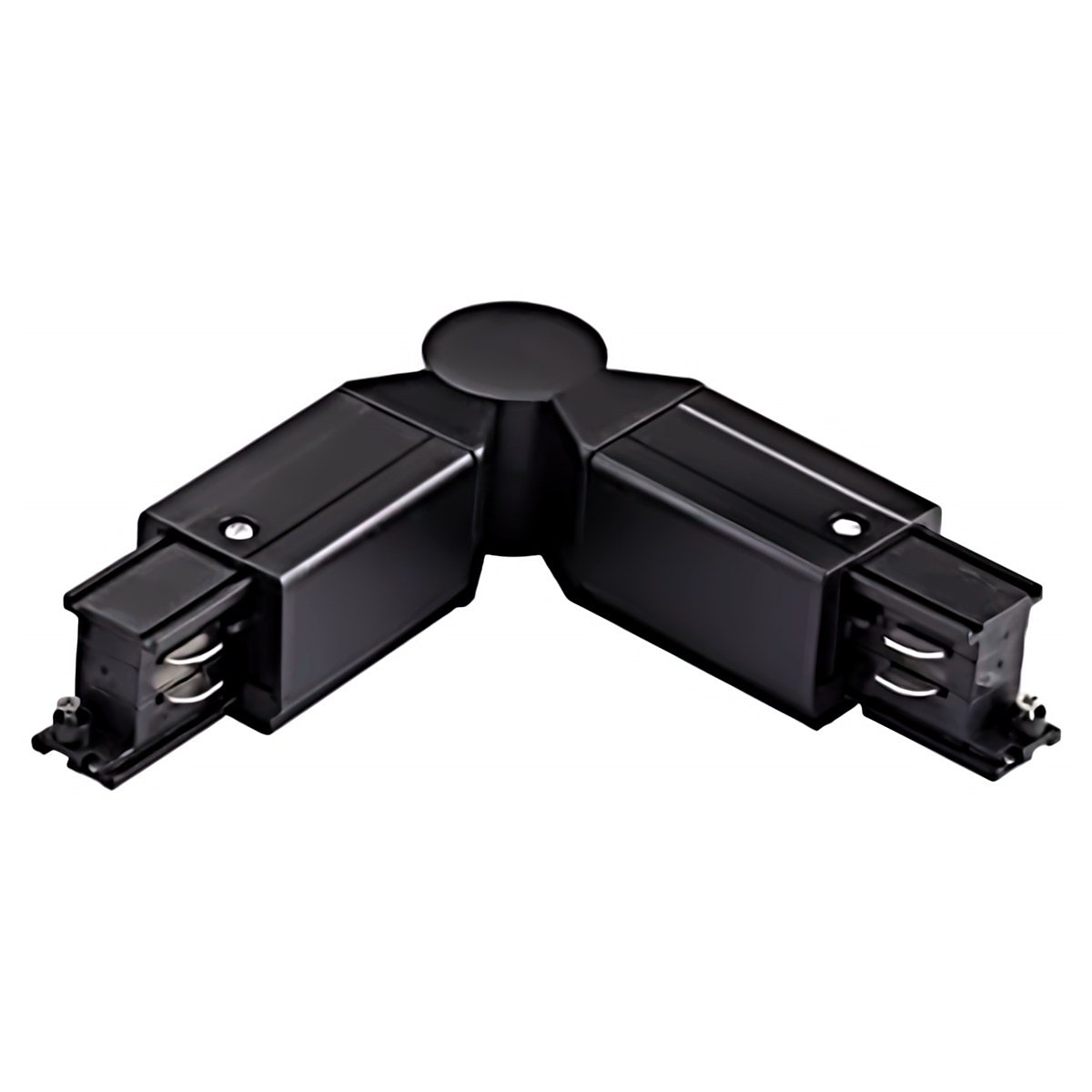

Connectors

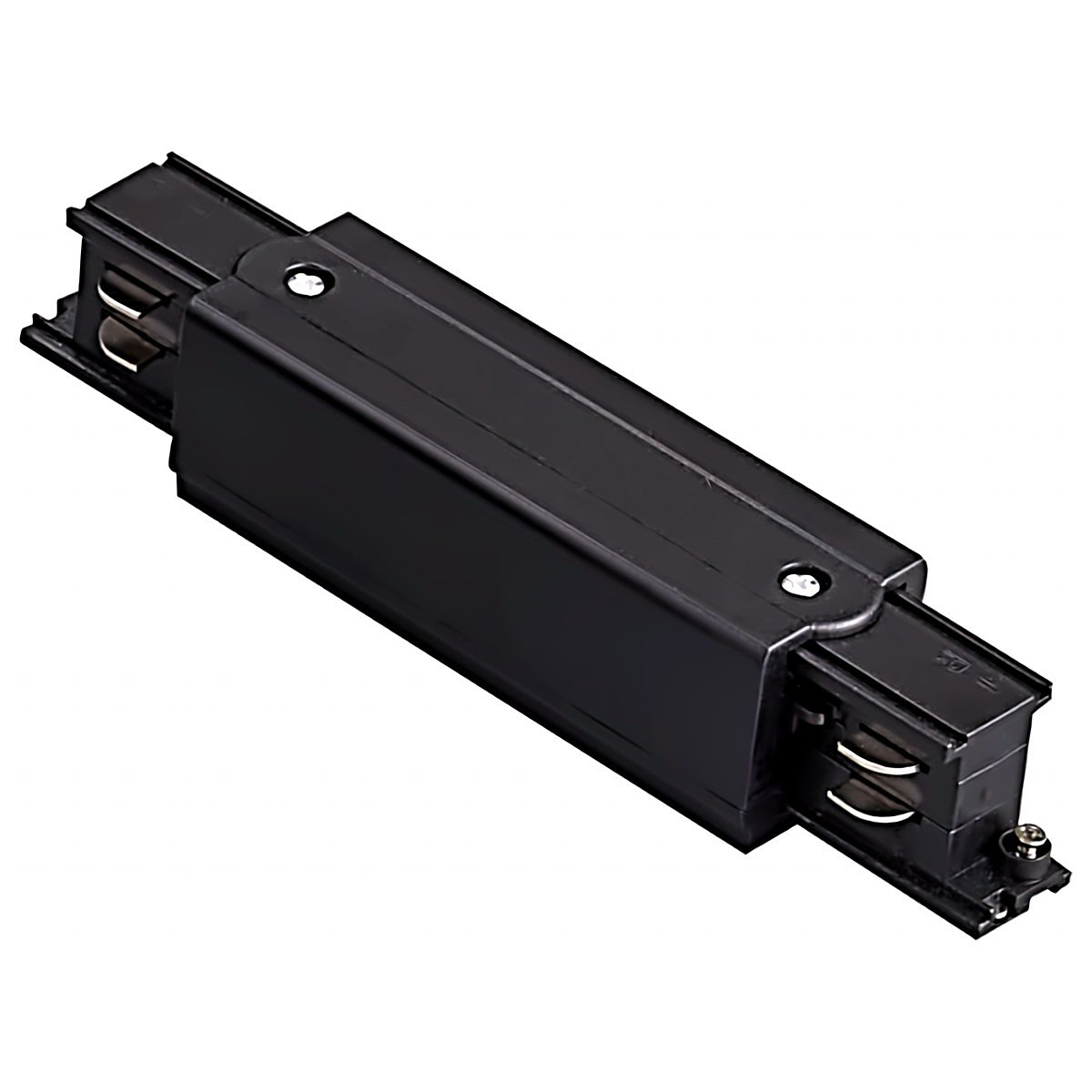

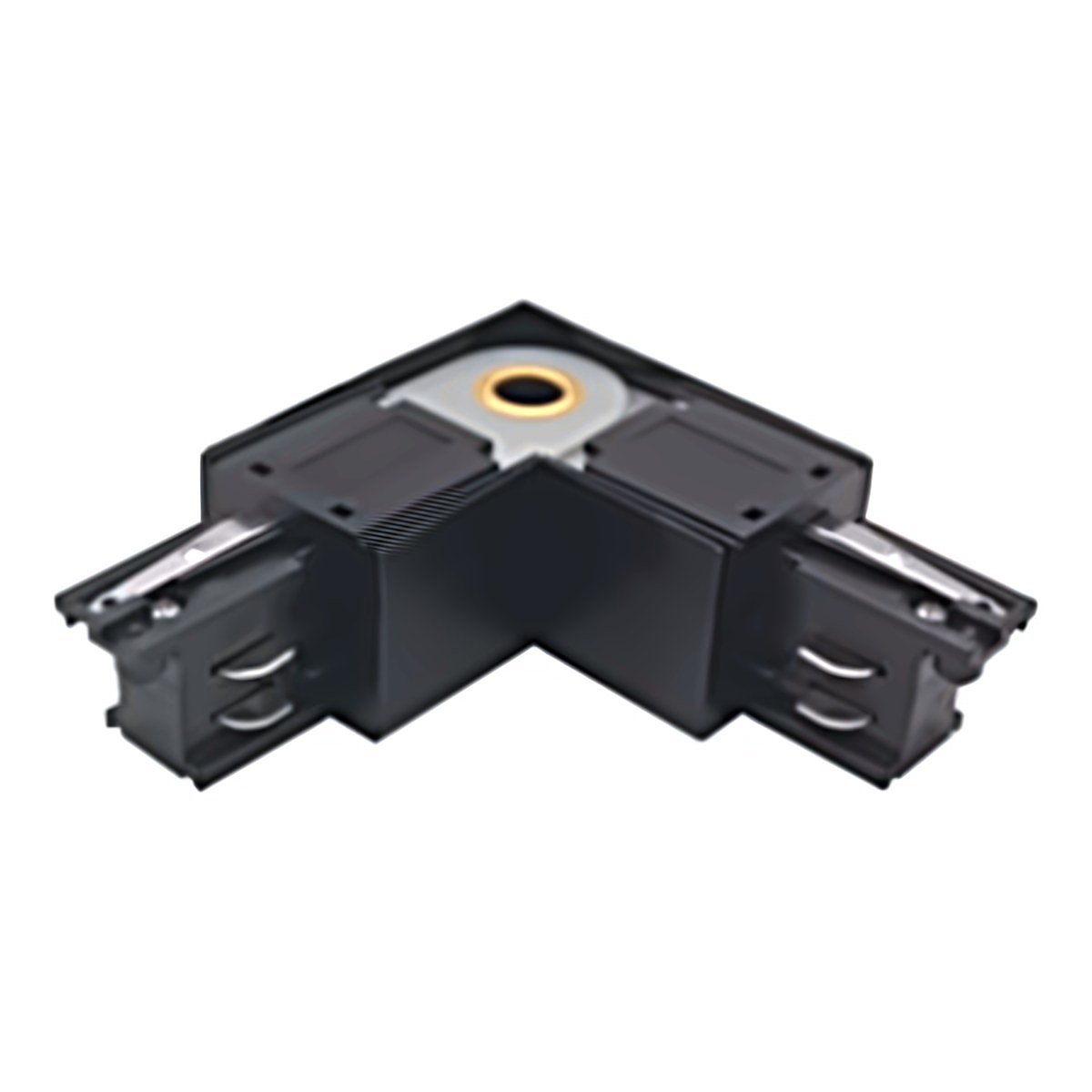

Straight, L and T joins, with circuit continuity maintained through the join.

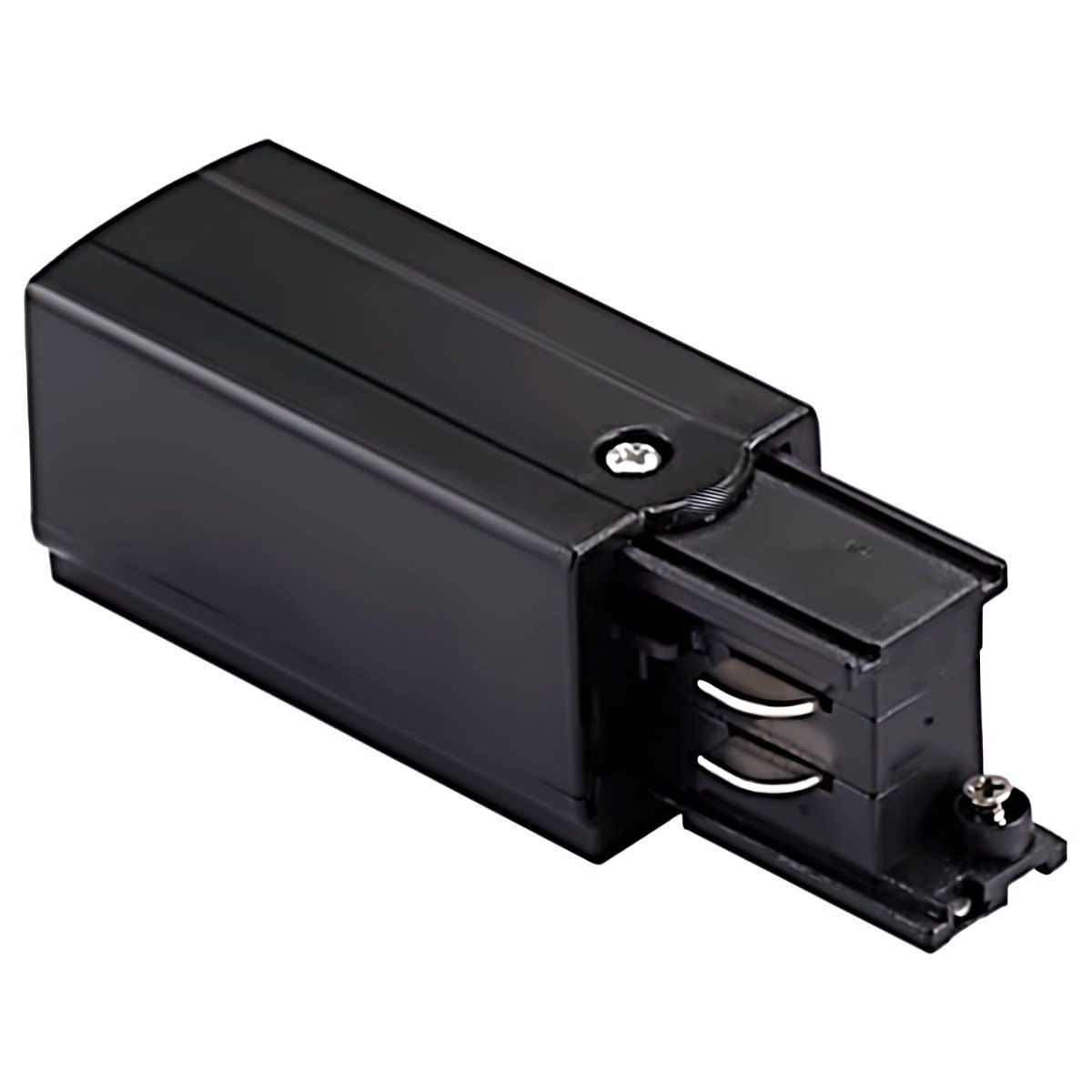

Power feeders
Single feed point carrying all three circuits.

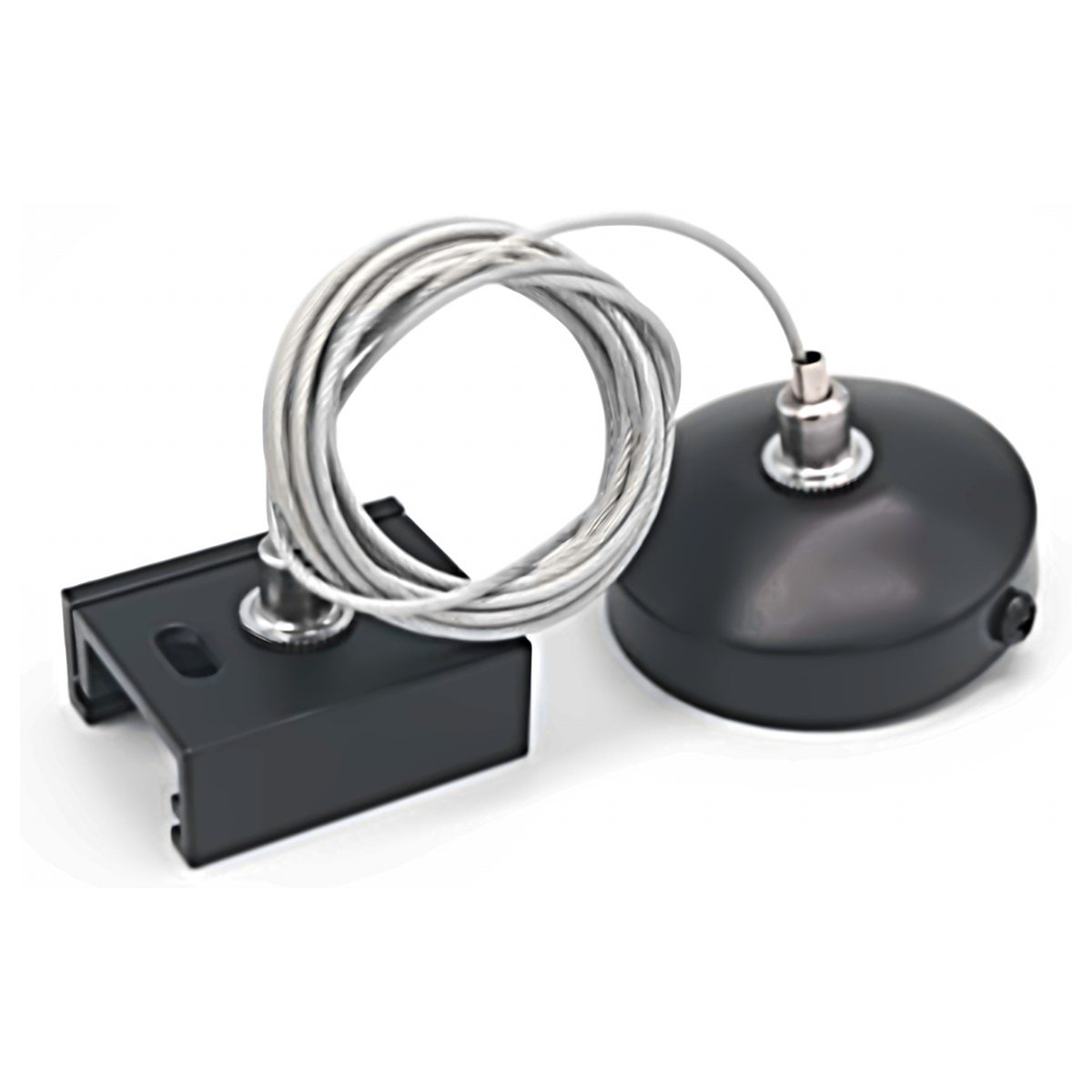

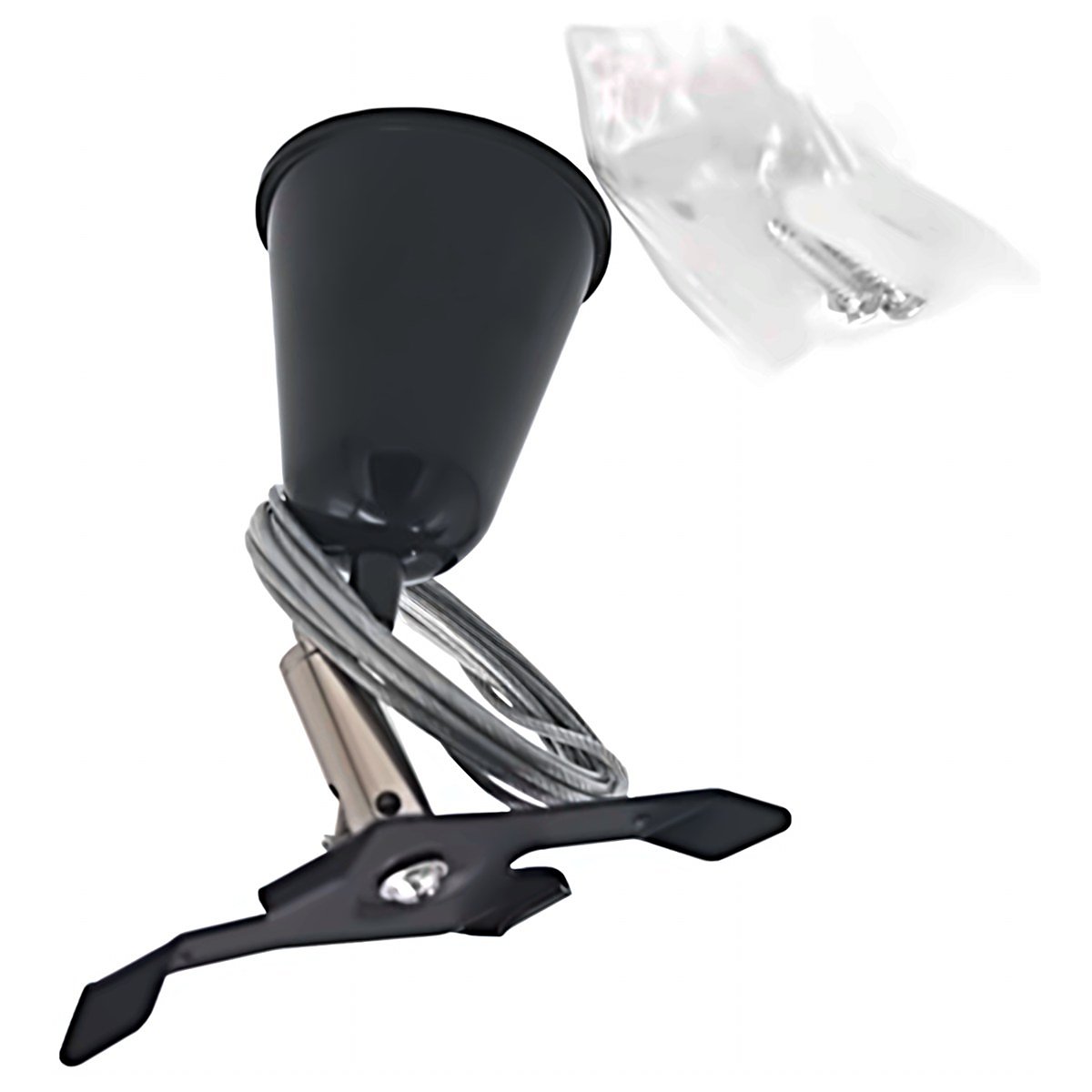

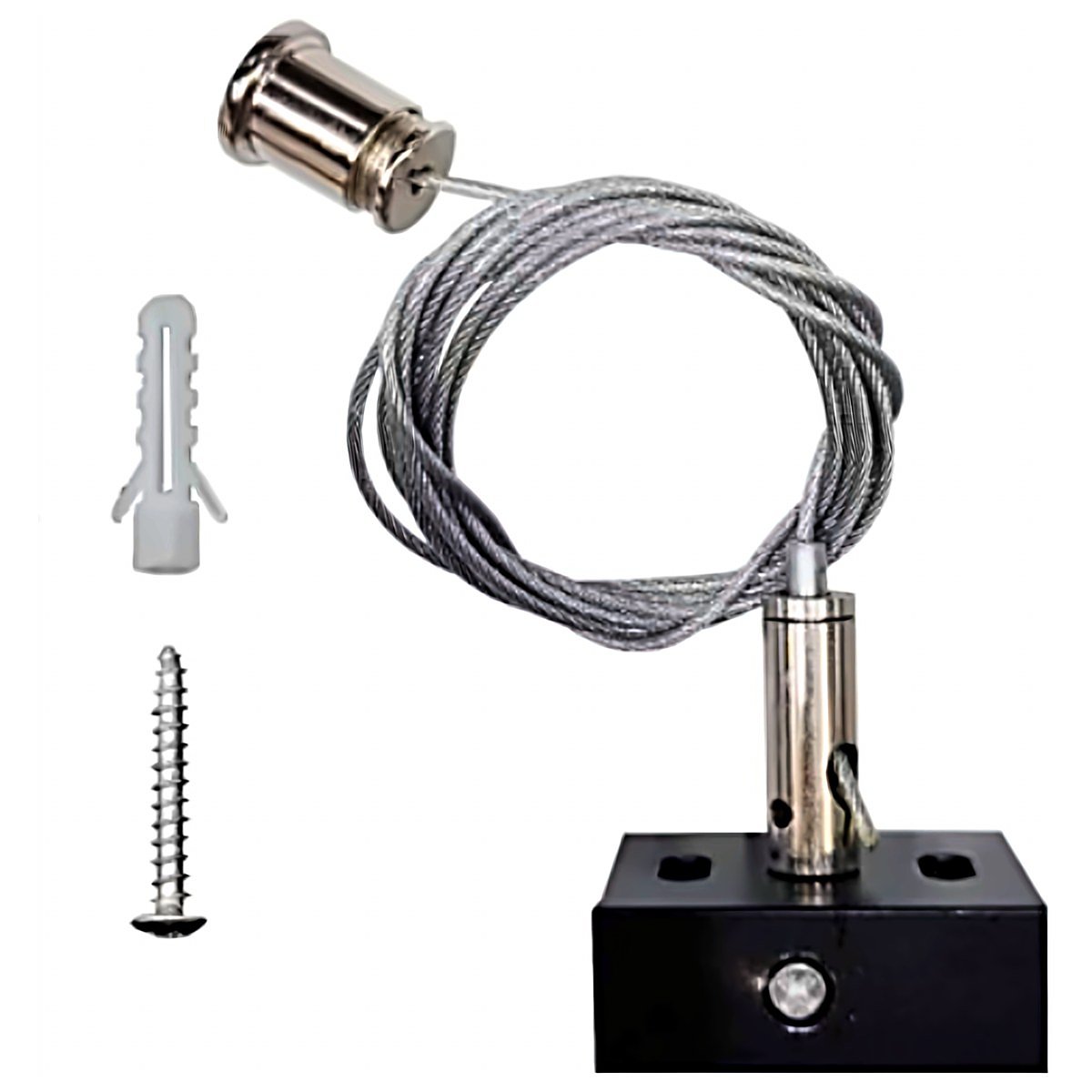

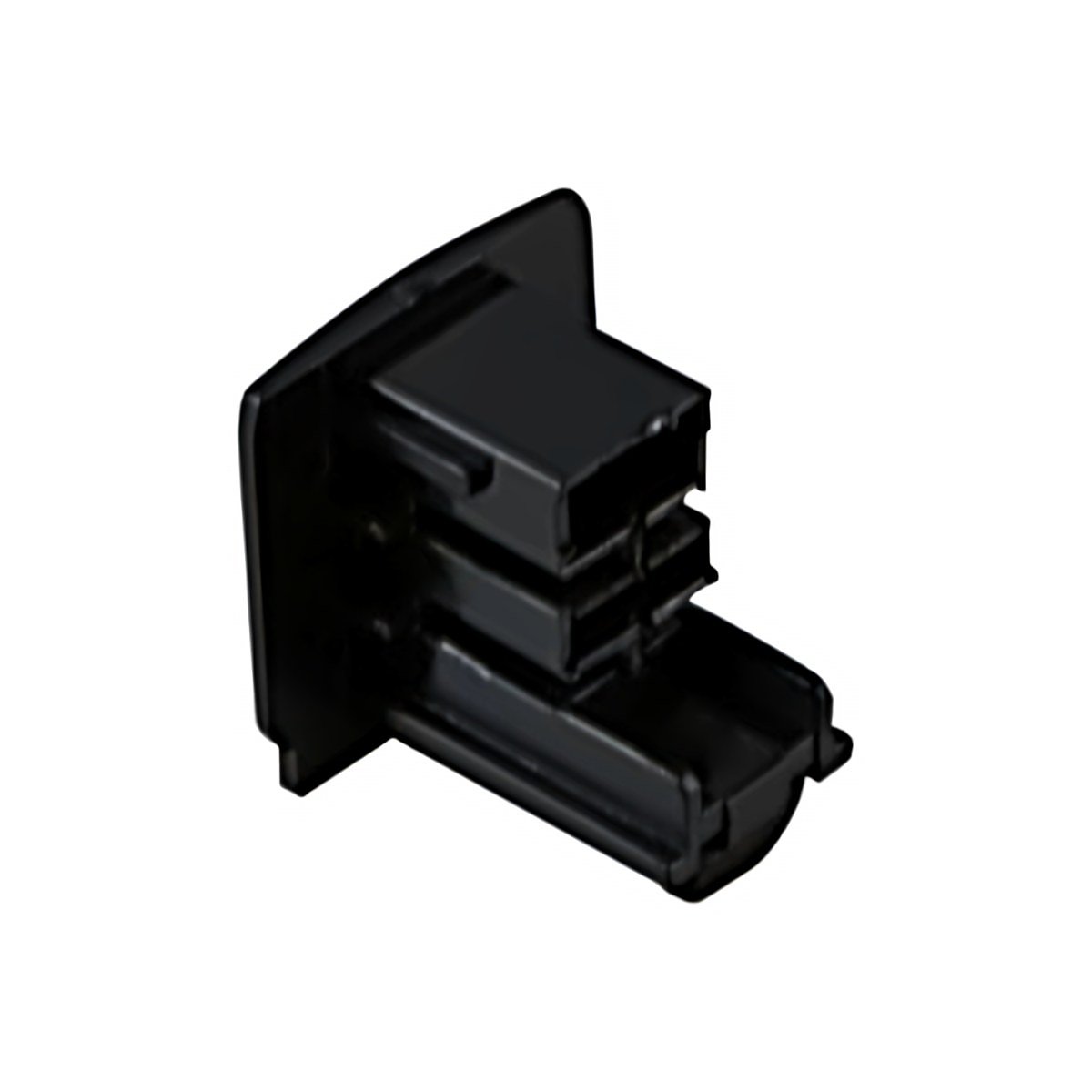

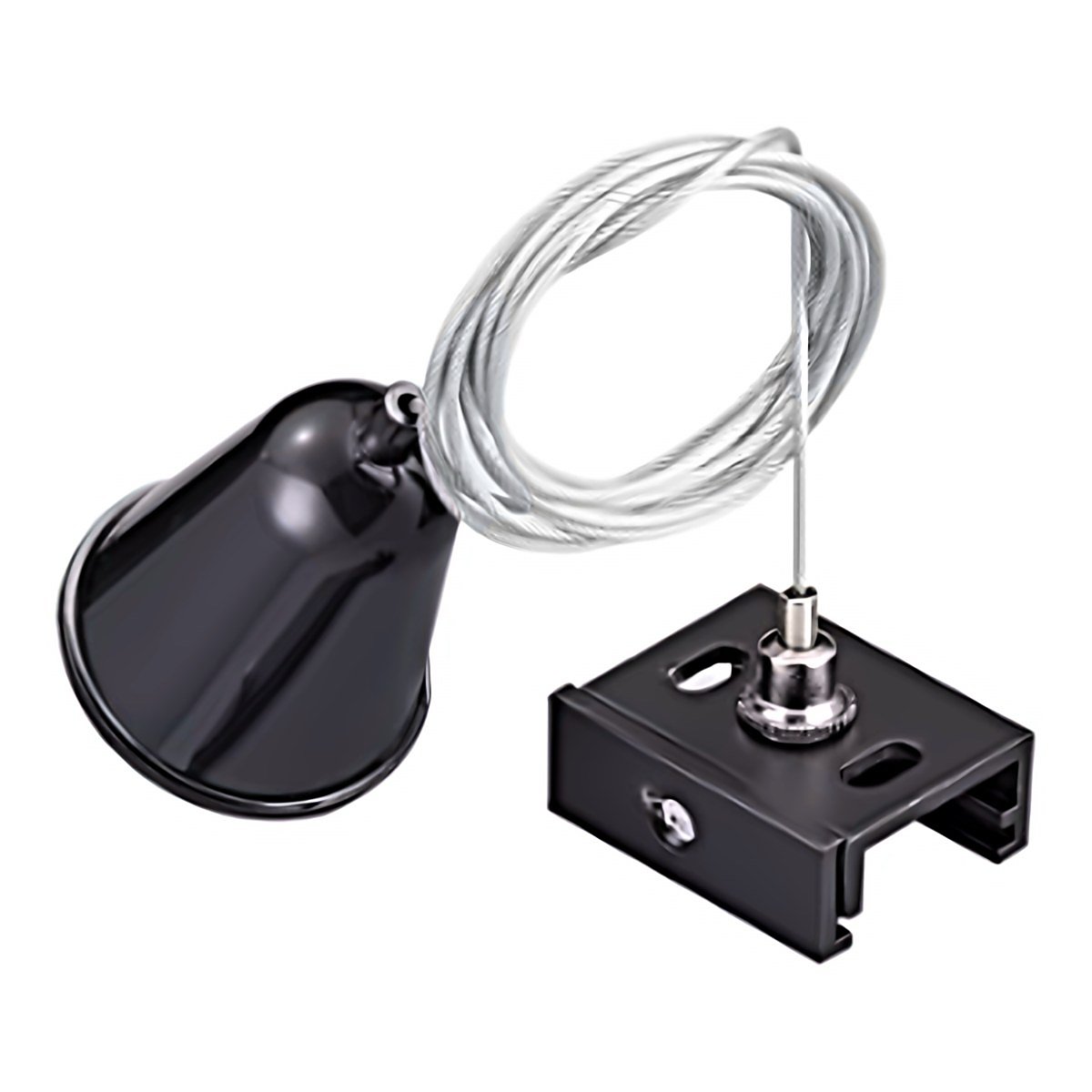

End caps & suspension
Closing and hanging components for the chosen mounting.
Installation forms
Surface-mount
The most common route in retail and showroom fit-outs.

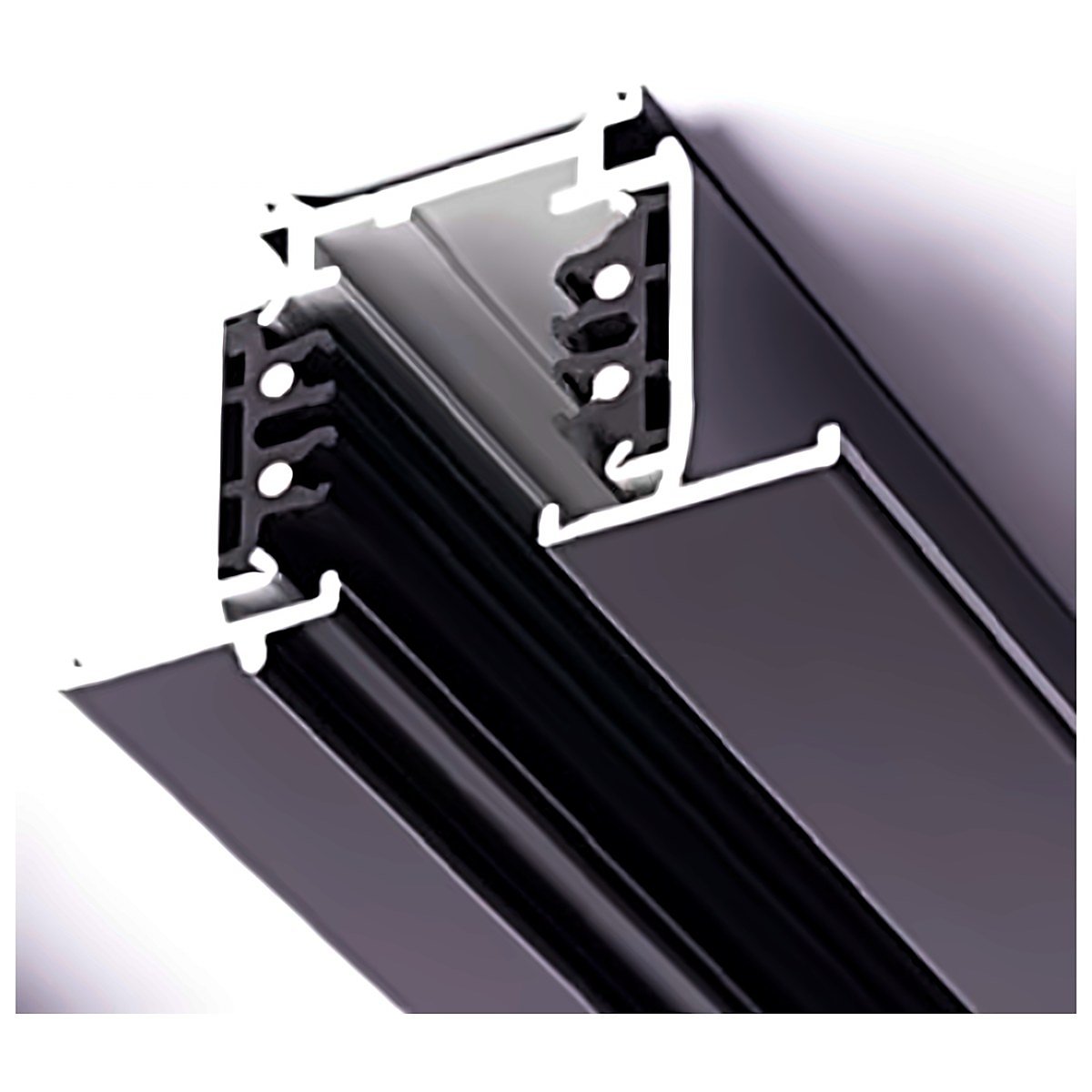

Recessed
Flush with the plaster line for a clean architectural ceiling.
Suspended
Cable-hung over open or high ceilings.
Where this system is used
Retail Stores
Window, mid-floor and highlight zones on one run.
Showrooms
Higher output with grouped switching for display changes.
Hotels
Lobby and public areas with day and evening scenes.
Illustrative scene — representative application.
System parameters
Typical electrical and mechanical parameters for the 4-wire track system. Figures are confirmed per model on quotation.
| Parameter | Value |
|---|---|
| System voltage | 220–240 V AC |
| Circuits | 3 (three-phase, grouped control) |
| Control | Grouped switching & dimming across 3 circuits |
| Max load | 3 × ≈ 10 A (one per circuit, model-dependent) |
| Material | Anodised aluminium |
| Finish | White / Black / Silver |
| Certification | CE, RoHS |
Module matrix
Mains-voltage luminaires from the LUXERA F1M, F1 Plus, L2 Plus, Vector, E02 and Shapeable series, with adapters for three-circuit track.
L2 Plus
10–15 W · 15° / 24° / 38° / 50°
L2 Plus
20–30 W · 15° / 24° / 38° / 50°
Vector
10–20 W · 20° / 25° / 38° / 60°
Vector
20–30 W · 18° / 28° / 44° / 60°
F1M Modular
10–40 W · 15° / 24° / 38° / 60°
F1 Plus
10–40 W · 15° / 24° / 36° / 45°
E02 Zoomable
5–35 W · 15°–55° adjustable
Shapeable
5–35 W · 20°–35° shapeable
Full specifications, photometric files and installation drawings are provided by our sales team per model. See the product range.
Next step
Discuss your 4-wire track lighting system
Tell us the country, the space type and how you want to control the light. We will confirm the model combination and quote the complete system.
Drawings and site photos can follow by WhatsApp or email. No upload needed to start.
