Economical Shapeable Series LED Track Light
LUXERA economical shapeable LED track light, 5–30 W, beam shape cut by hand 20°–35°, for projects that need shaped light at a lower cost.
Description
The economical shapeable series keeps the hand-cut beam of the standard shapeable range at a lower price point, for projects where shaped light is needed across many fittings.
Two sizes cover 5 W to 30 W, sharing the same adapter range as the rest of the mains-voltage families.

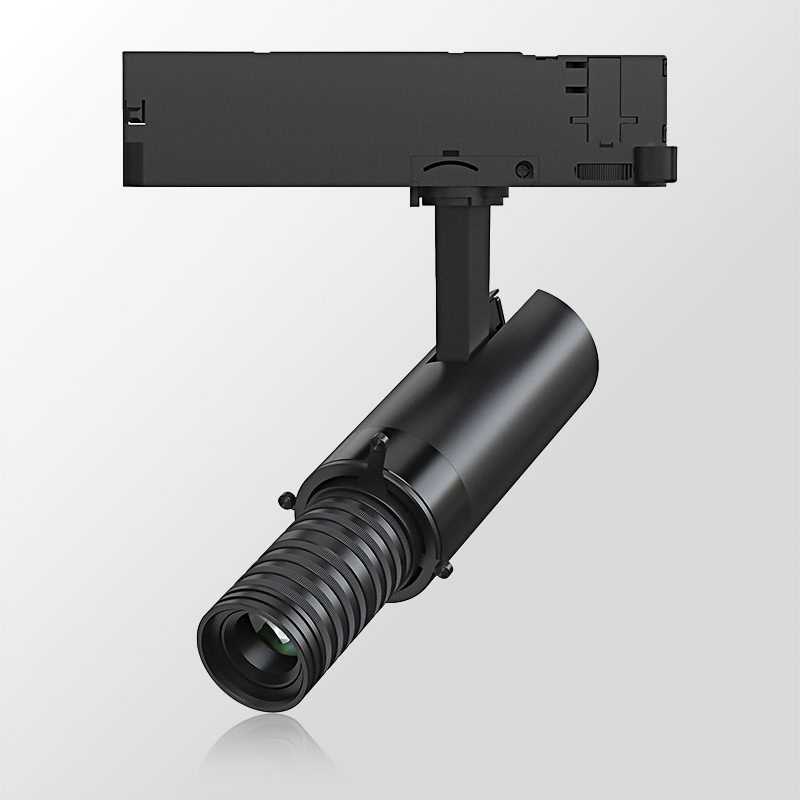

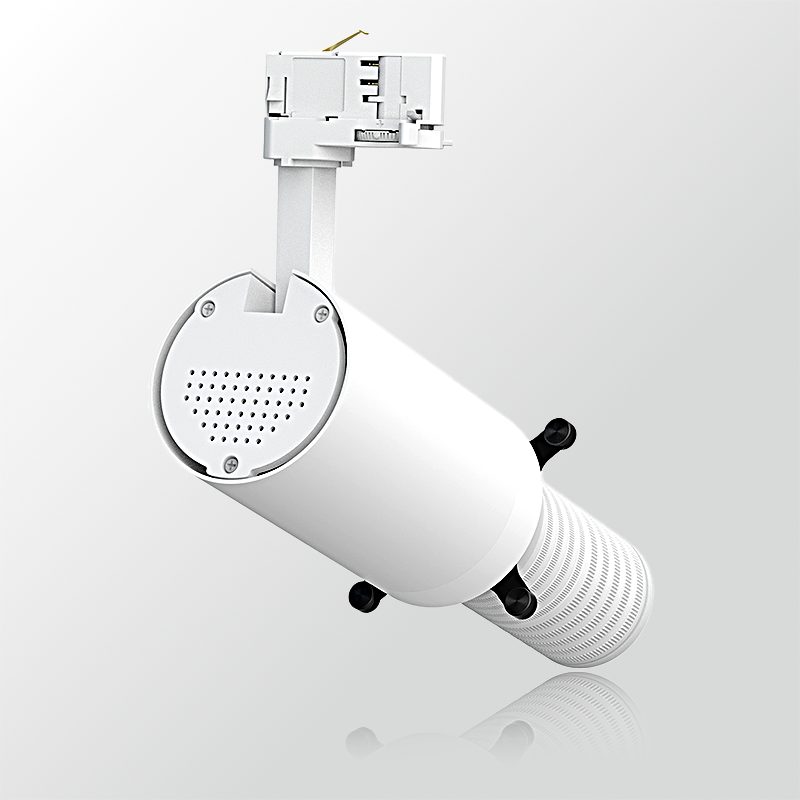

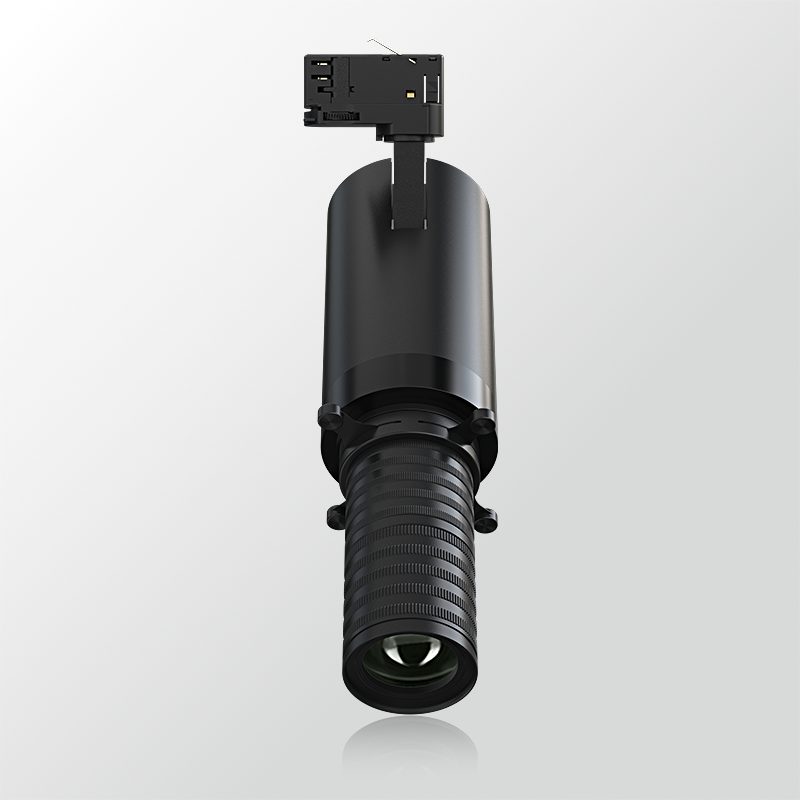

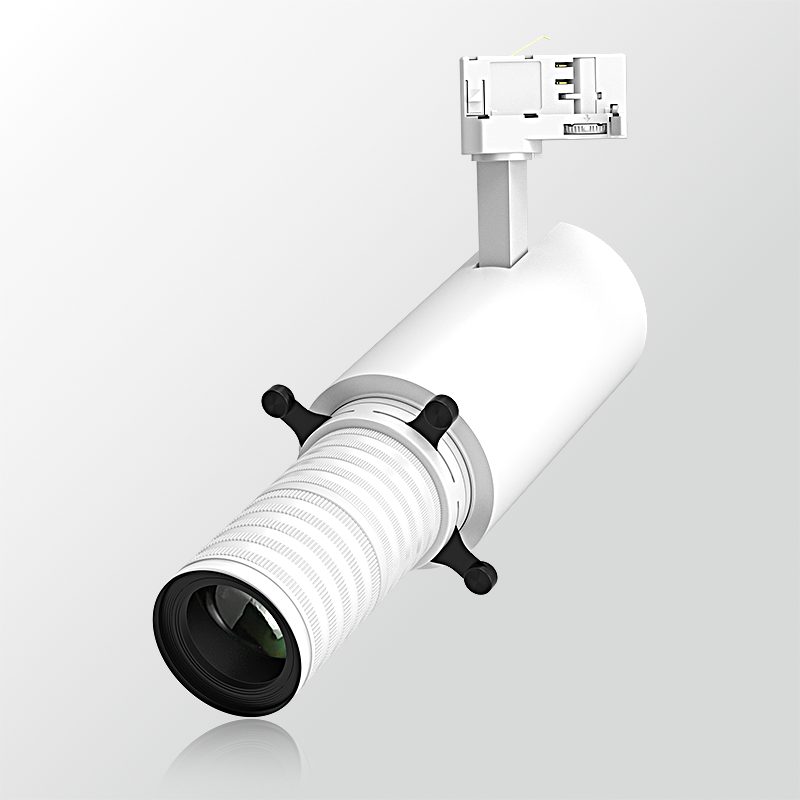

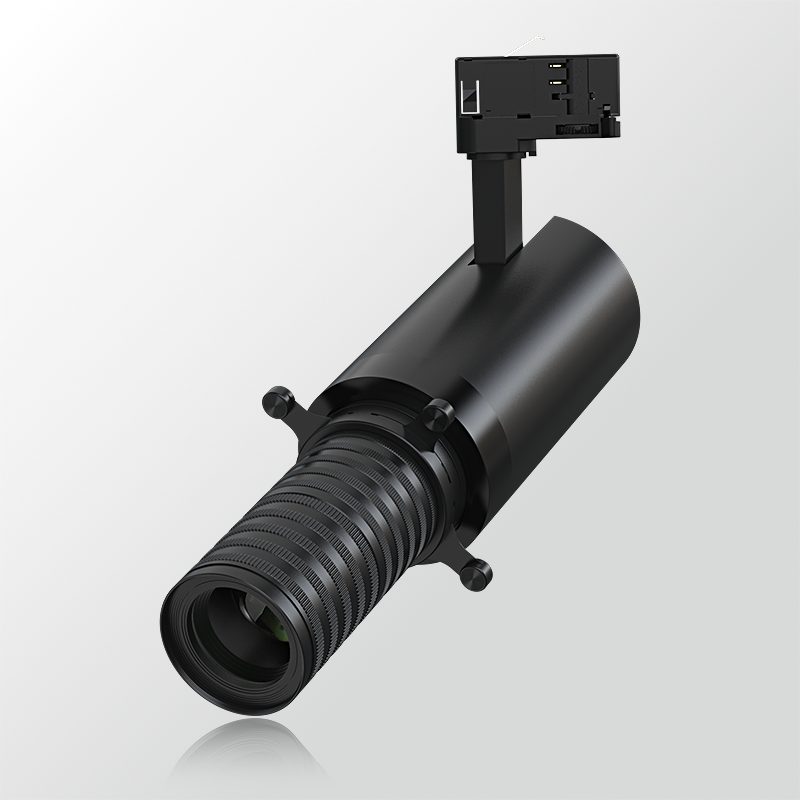

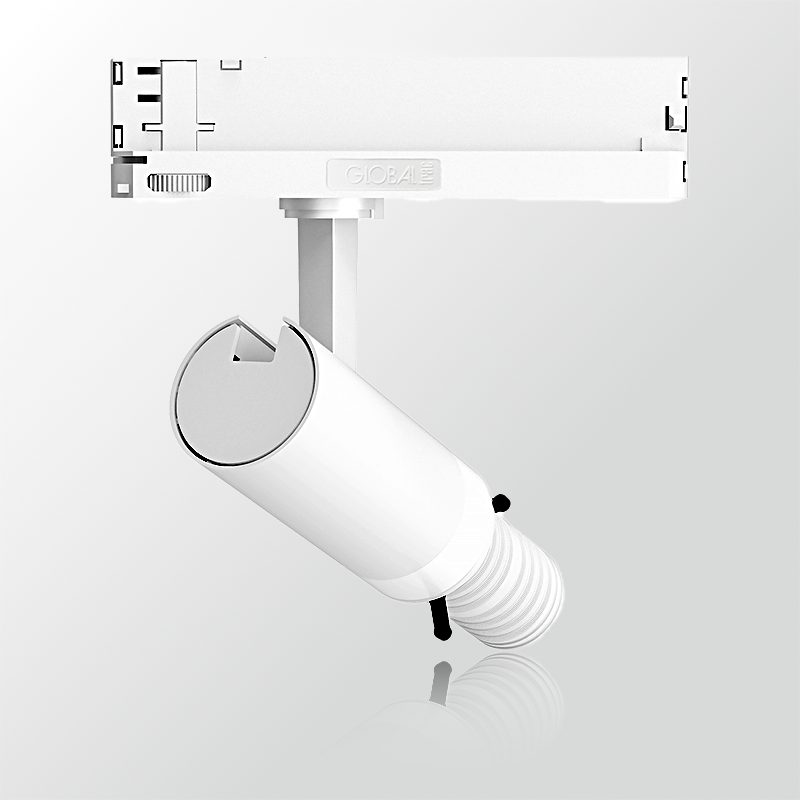

Product gallery
Click any photo to enlarge it and view the full technical specifications. Wattage variants share the same housing.
Features
- 20°–35° beam shape cut by hand
- Two sizes: D50 and D90
- 355° horizontal, 90° vertical adjustment
- Single colour, tunable white, dim to warm, tri-colour
- Dimmable: DALI, TRIAC, 0/1–10 V, ZigBee, BLE, 2.4G, DMX
- Anti-glare accessories available
- 5-year warranty
Technical & datasheet
Click any photo in the gallery above to open these specifications beside the enlarged image.
| Sizes | D48 × 187 mm, D90 × 312 mm |
|---|---|
| Adapter brands | Global, Powergear, Unipro, STUCCHI, Eutrac |
| Track phase | 4/3/2-wire 1 phase, 6/4-wire 3 phase |
| Power | 5 W / 8 W / 10 W / 20 W / 25 W / 30 W |
| LED voltage | DC36V |
| Optics | Lens |
| Beam angle | 20°–35° adjustable |
| Efficiency | LED lumen 100–180 lm/W; lamp lumen 30–80 lm/W |
| CCT | 2700 / 3000 / 3500 / 4000 / 5000 / 6500 K |
| CRI | 80+ / 90+ / 95+ / 98+ |
| SDCM | <3 |
| Driver | Tridonic, Philips, Osram, HEP, TCI, BOKE, Lifud |
| Voltage | AC200–240V, AC100–240V; PF>0.9 |
| Finish | Matt white, matt black |
| Warranty | 5 years |
Product list
D50 series
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-5W-ZS-E | 5 W | DC36V | 150 mA | 30–80 lm/W | D48 × 187 mm |
| LX-TL-8W-ZS-E | 8 W | DC36V | 200 mA | 30–80 lm/W | D48 × 187 mm |
| LX-TL-10W-ZS-E | 10 W | DC36V | 250 mA | 30–80 lm/W | D48 × 187 mm |
D90 series
| Model | Power | LED voltage | Current | Efficacy | Size |
|---|---|---|---|---|---|
| LX-TL-20W-ZS-E | 20 W | DC36V | 500 mA | 30–80 lm/W | D90 × 312 mm |
| LX-TL-25W-ZS-E | 25 W | DC36V | 600 mA | 30–80 lm/W | D90 × 312 mm |
| LX-TL-30W-ZS-E | 30 W | DC36V | 700/750 mA | 30–80 lm/W | D90 × 312 mm |
Photometric files (IES/LDT), installation drawings and certification documents are provided by our sales team per model. Track adapter and circuit configuration are confirmed per order. Adapter brands available across the range include Global, Powergear, Unipro, STUCCHI and Eutrac.
Application scenarios
Illustrative scene — representative application.
Which track system
4-Wire system
Three circuits on one run.
2-Wire system
Single-circuit installations.
