48V Magnetic Track Lighting System

System components

Rails, connectors, power feeds and accessories in the LUXERA 48V Magnetic Track Lighting series — the parts that make up a complete run. Click any component for details.

Track Rail

Connectors

Modules

Power Supplies

Model suffixes: -B Black, -W White, -S Silver; -10 / -15 / -20 / -30 = 1 / 1.5 / 2 / 3 m. Exact codes are confirmed on quotation.

What the system includes

Supplied as a matched set — rail, connectors, power supply and lighting modules.

Rail

Slim profile, surface-mount and recessed flush-mount, cut to length for the layout.

Connectors

Straight, L and corner joins for continuous runs and turns.

Power supply

Flicker-free external driver, sized to the total connected load of the run.

Spotlight modules

D35 / D48 / D52 / D62 fixed, plus zoomable and shapeable versions.

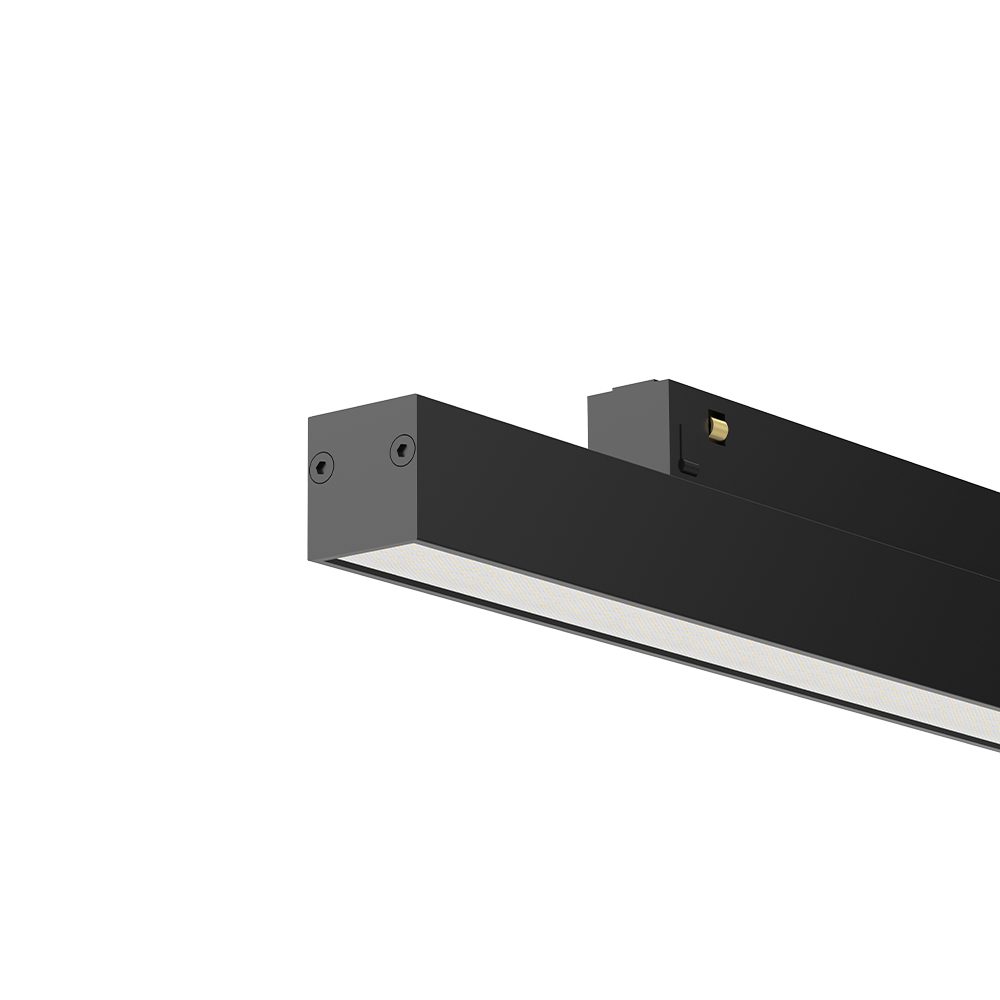

Linear modules

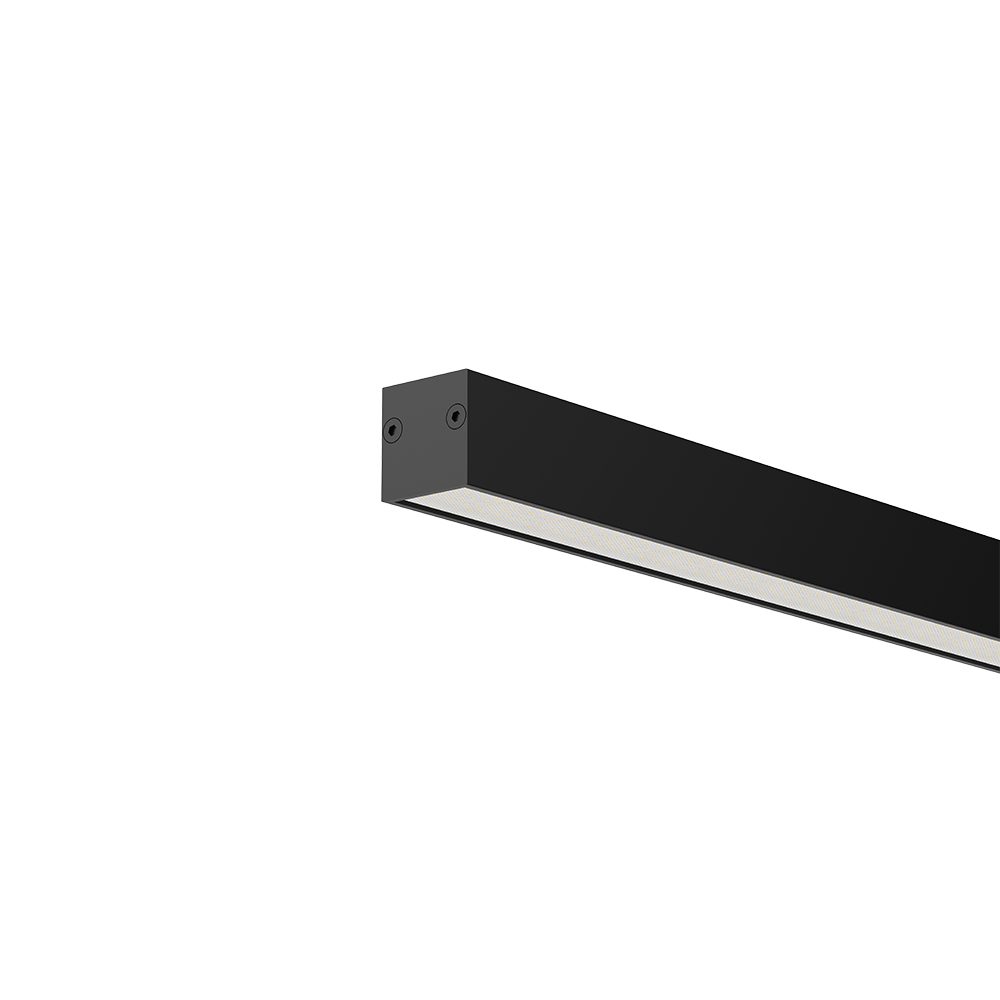

Lens + reflector, diffuser, and adjustable versions from 118 mm to 900 mm.

Pendant modules

Linear pendants and ball pendants for dining and reception areas.

System input DC48V, LED module voltage DC36V. Rail lengths, connector forms and driver capacity are confirmed per layout.

Installation forms

Surface-mount

The rail is fixed directly to the finished ceiling. The simplest retrofit route.

Recessed flush-mount

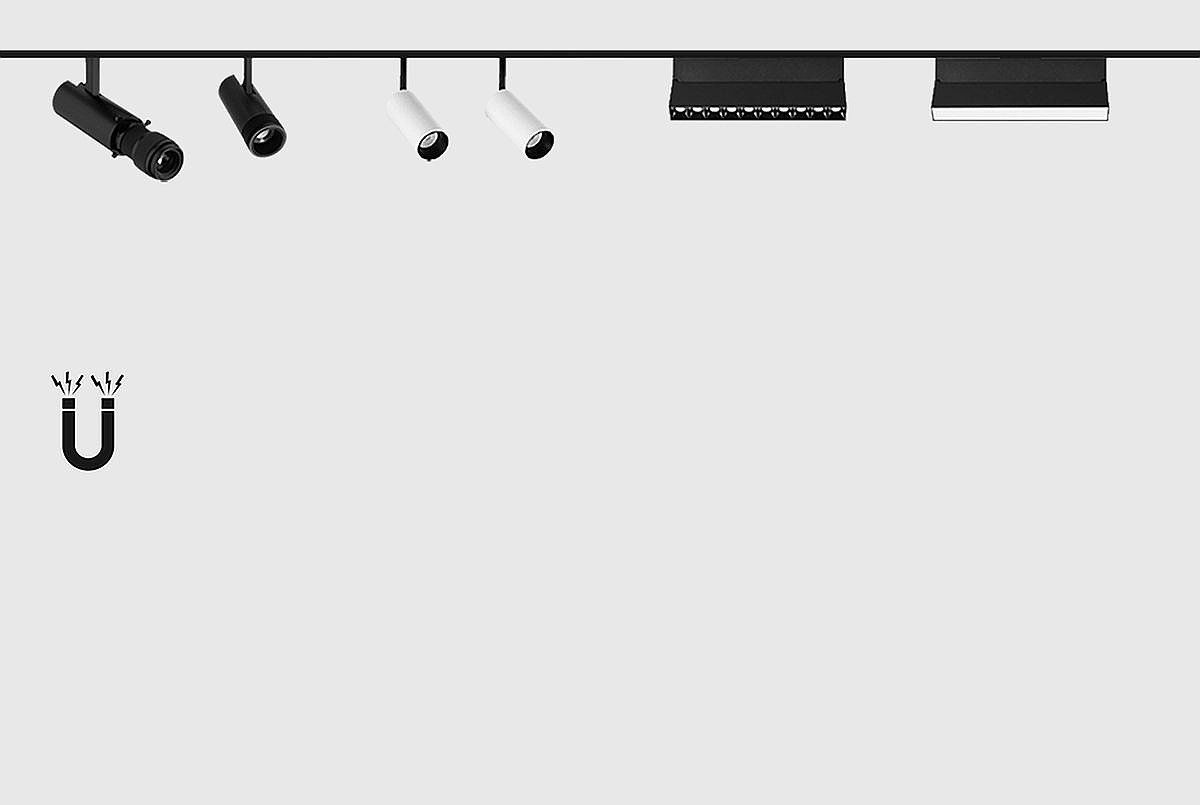

The rail sits level with the plaster line, leaving only a slim slot visible.

Suspended

The run hangs on cables where the ceiling is high or where a pendant layout is wanted.

Where this system is used

Residential

No main luminaire — light placed where it is used.

Retail Stores

Modules move between seasons without rewiring.

Galleries & Museums

Clean ceiling line with precise aiming.

Illustrative scene — representative application.

Low-voltage magnetic

Three rail families, one magnetic interface

All three share the same magnetic module mount — so you choose the profile by the ceiling, not the light. 48V comes in a 20 mm reference rail and an ultra-thin version; the 24V family is our slimmest 5 mm rail. The 24V family is also offered as a standalone 24V magnetic system.

24V · Ultra-narrow

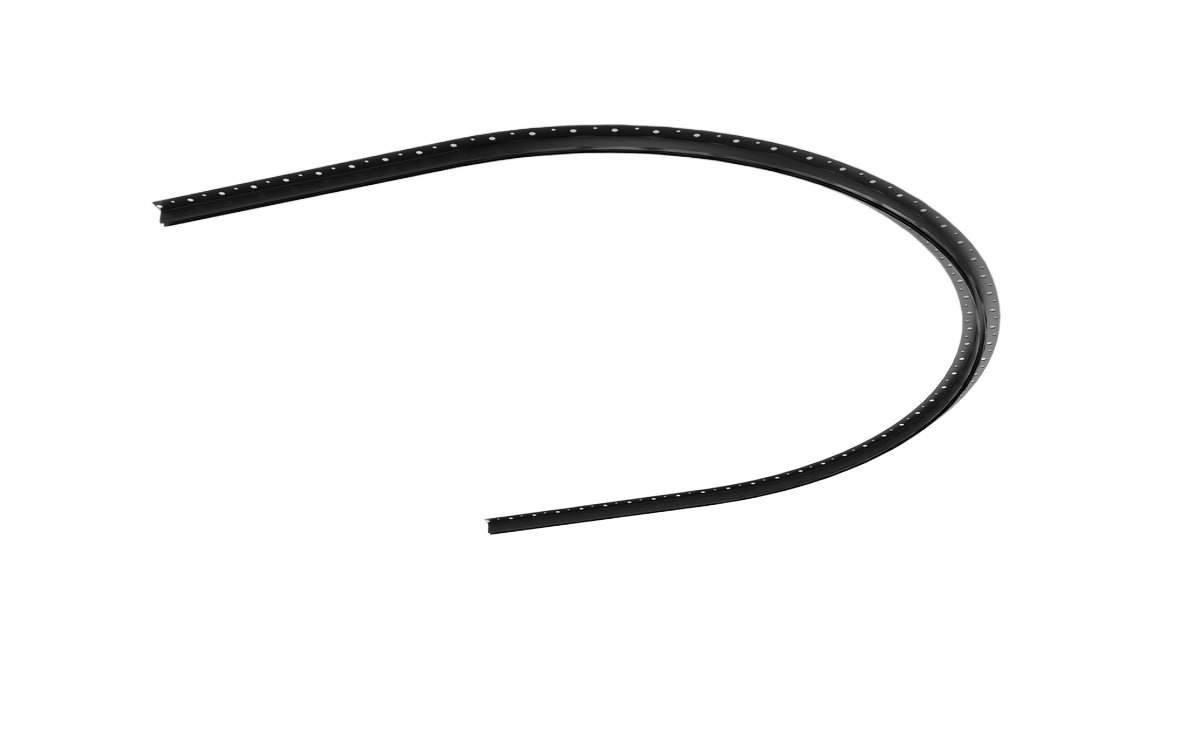

05 Series

Ultra-narrow 5 mm magnetic rail for the most discreet installations.

The 05 Series is our slimmest magnetic track at just 5 mm profile. Its minimal visible line disappears into ceilings and joinery, making it ideal for detail-rich retail, gallery and high-end residential projects where the architecture — not the fixture — should lead.

System voltage: DC 24V safety voltage
Profile width: 5 mm (ultra-narrow)
Rail lengths: 1000 / 1500 / 2000 / 3000 mm
Finishes: White / Black
Power supply: Integrated 24V driver 100W
Module types: Floodlight, Grille, Adjustable grille, Track light, Pendant
Typical power: 2 – 16 W per module
Application: Indoor only

Modules & components (selected):

Type	Module	Power	Size

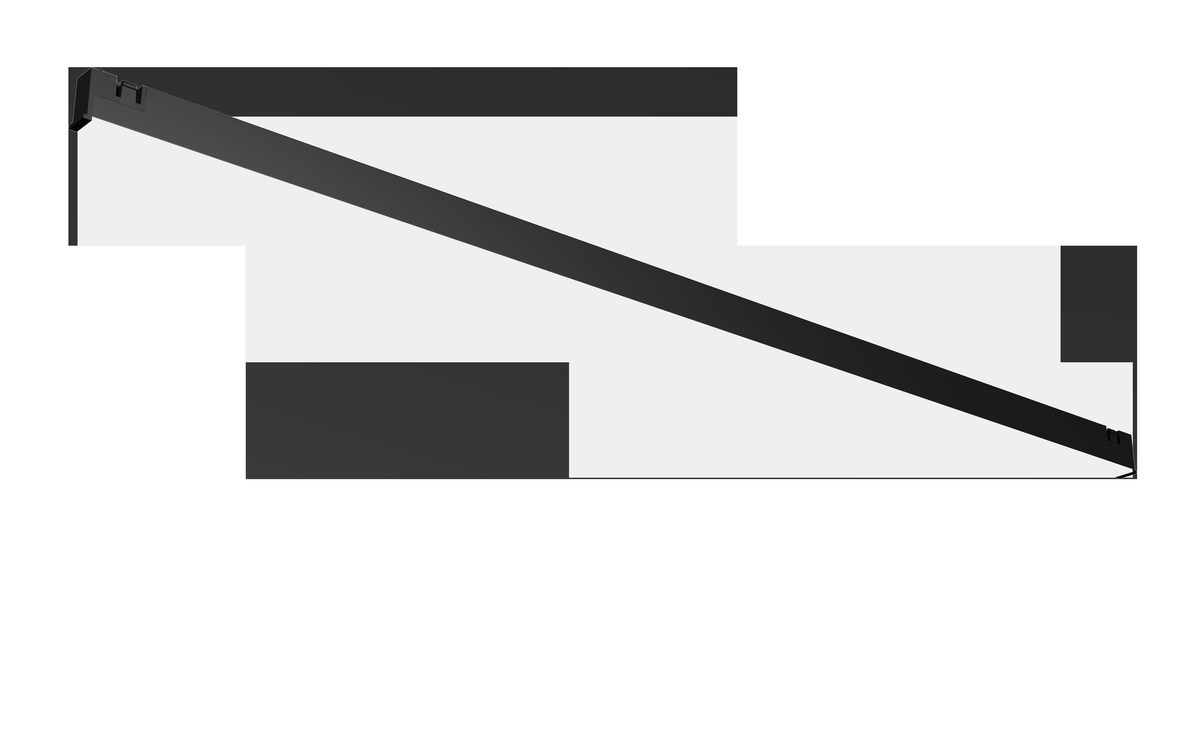

Rail	05 Series Rail	—	L1000 × W39 × H14 mm
Rail (slim)	05 Series Slim Rail	—	L1000 × W9 × H15 mm

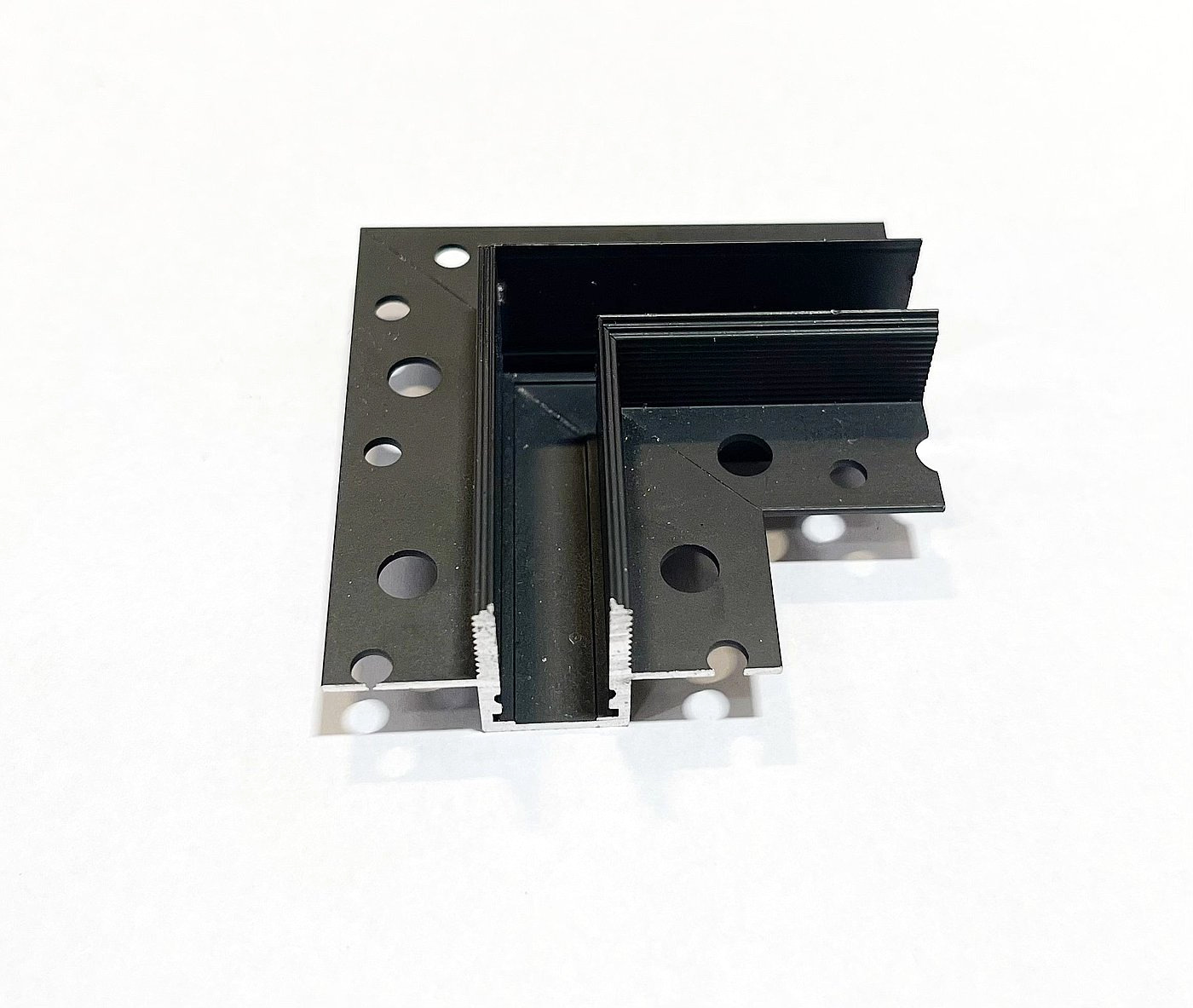

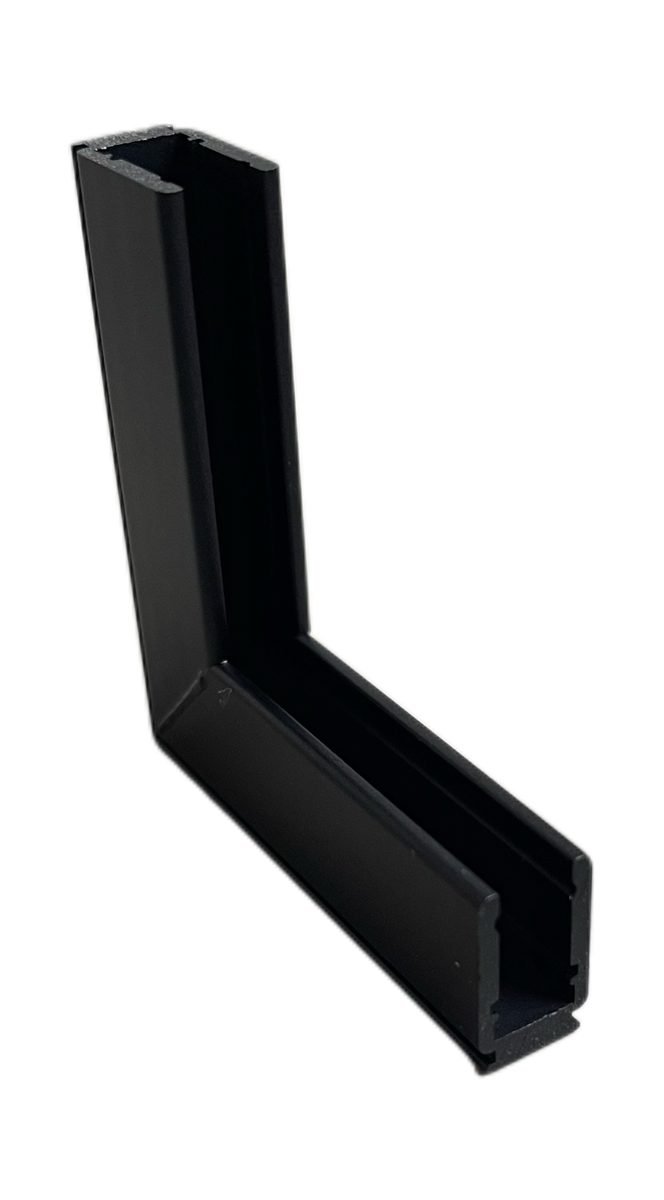

Connector	Horizontal corner	—	50 × 50 mm

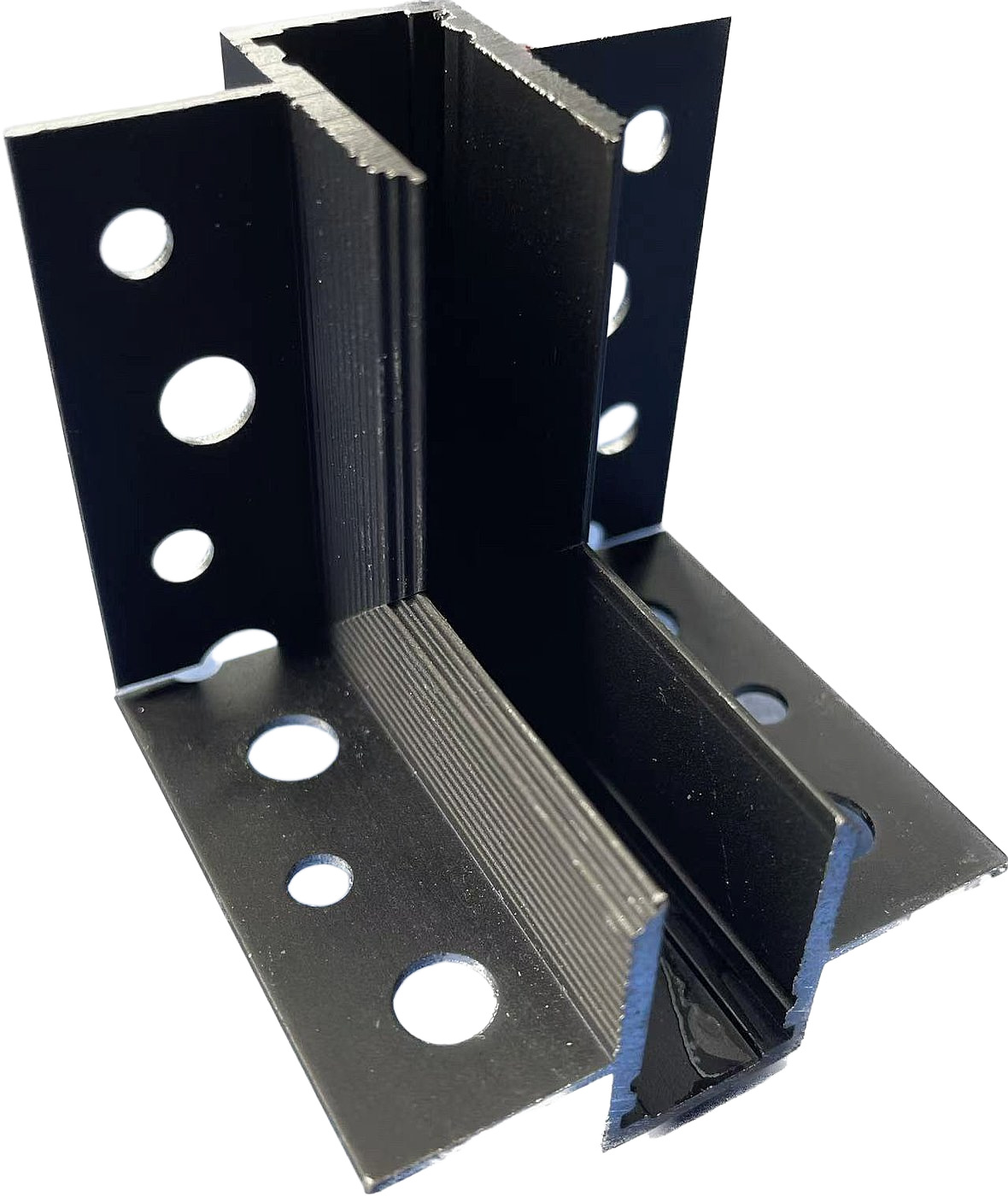

Connector	Vertical corner	—	50 × 50 mm
Connector	Power feed head	—	L71.5 × 10 × 19 mm
Connector	Direct wire joiner	—	L195 × 5 × 10 mm

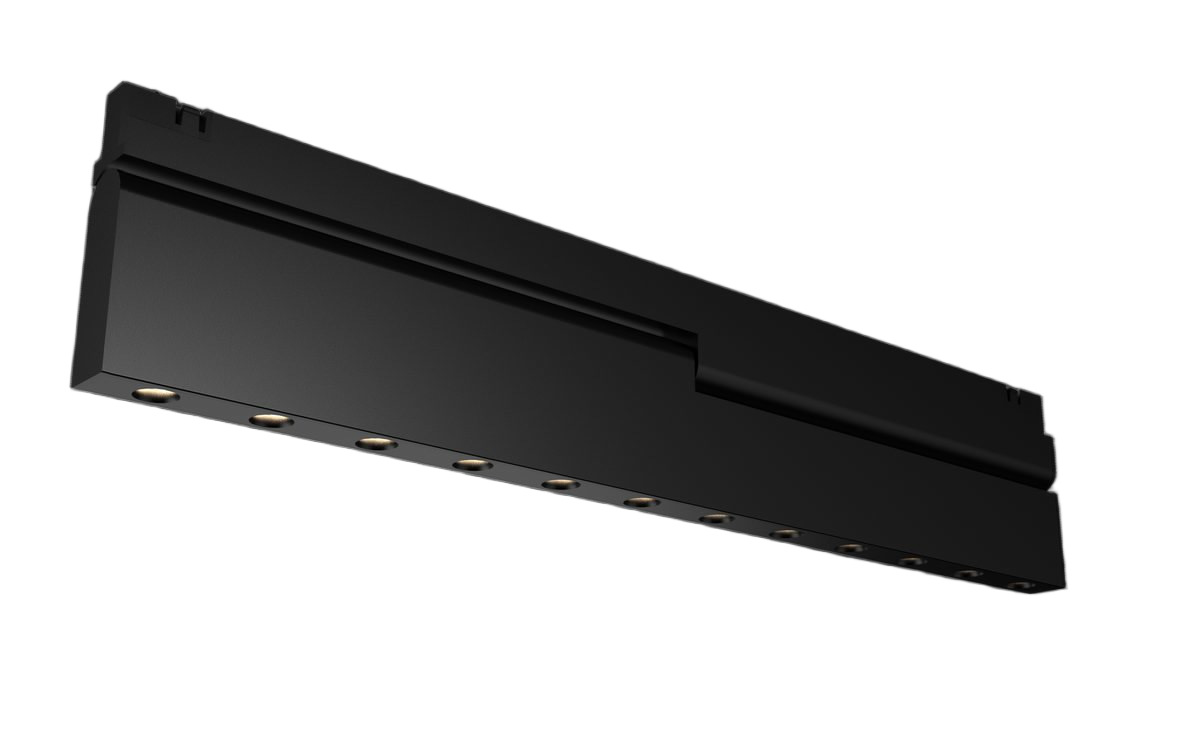

Module	Floodlight	7 – 16 W	300 – 600 × 10.5 × 5.5 mm

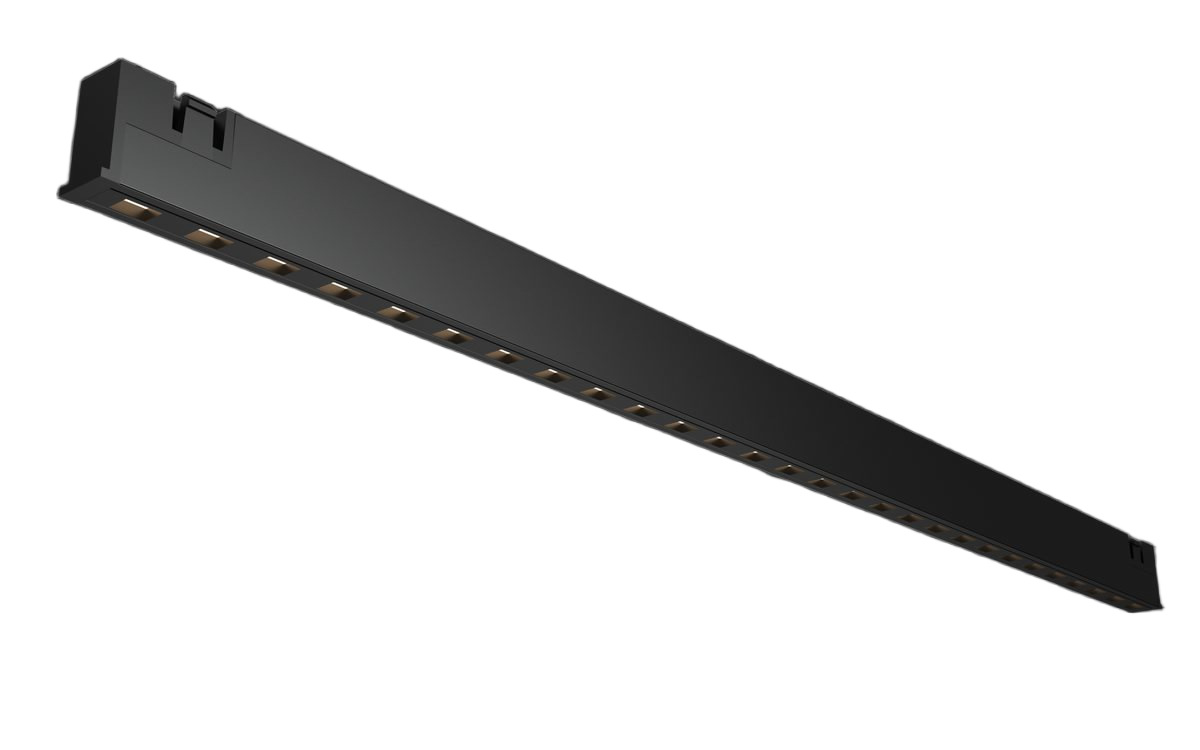

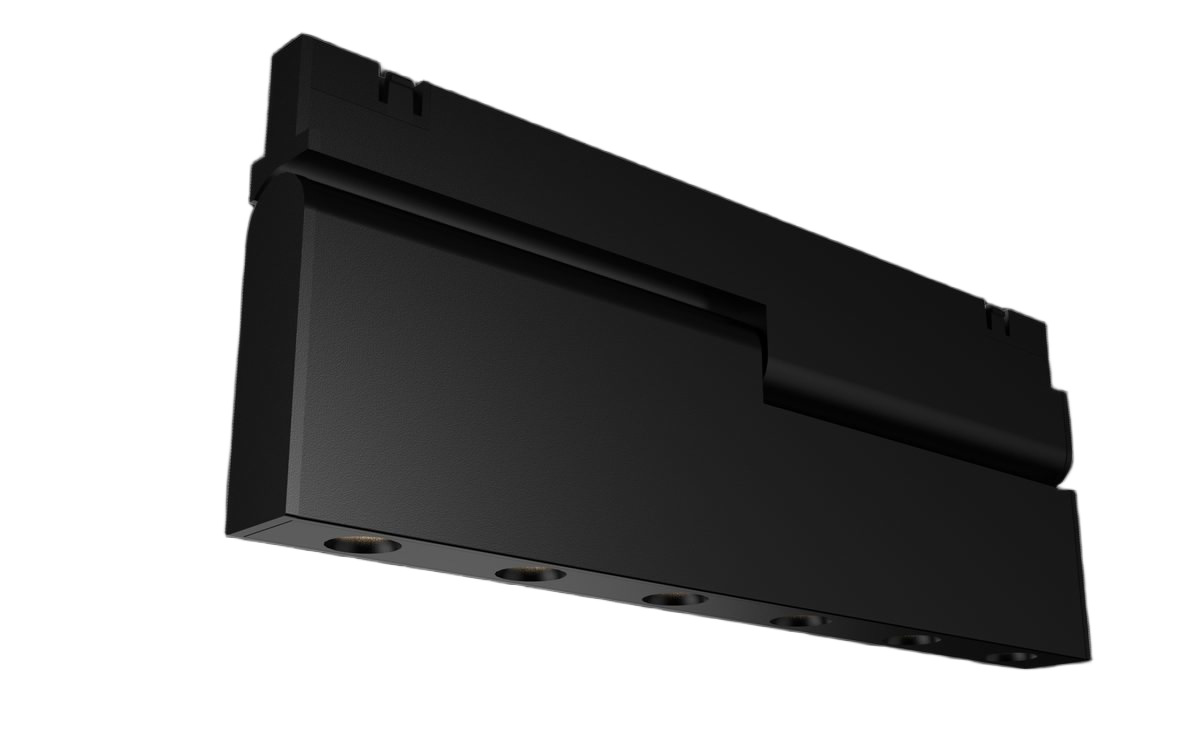

Module	Grille light	5 – 9 W	205 – 405 × 10.5 × 5.5 mm
Module	Adjustable grille	6 – 11 W	120 – 236 × 10.2 × 4.8 mm

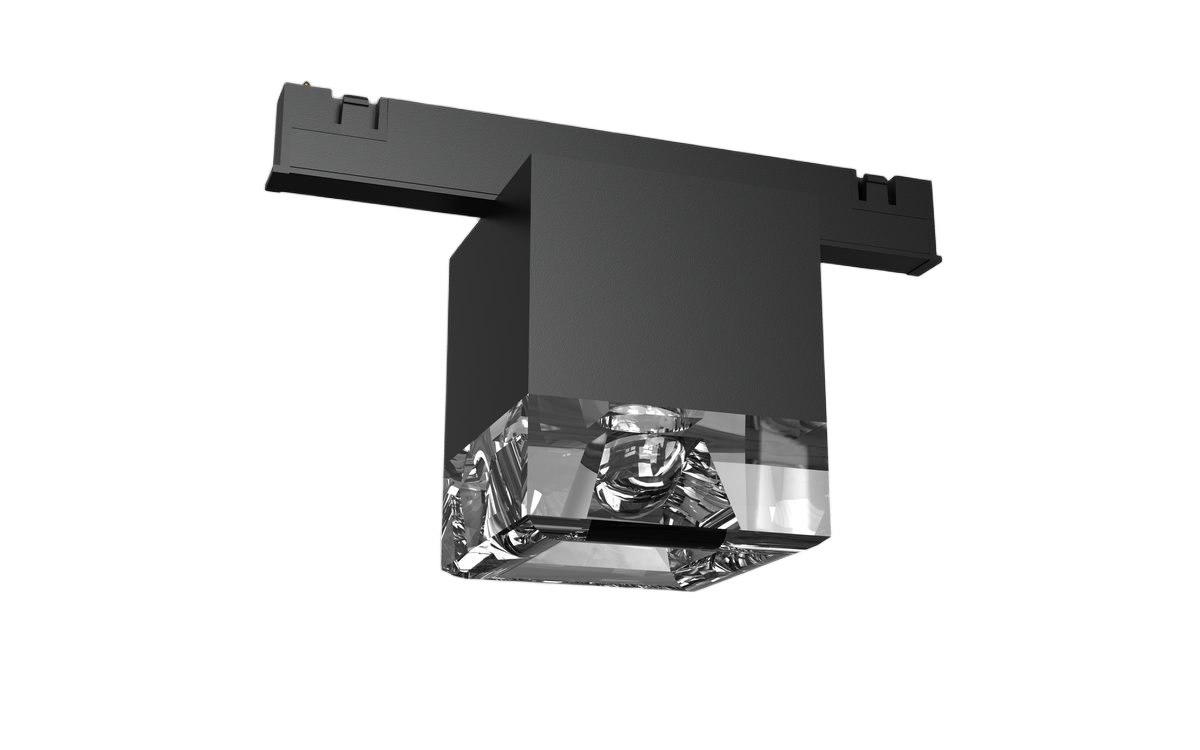

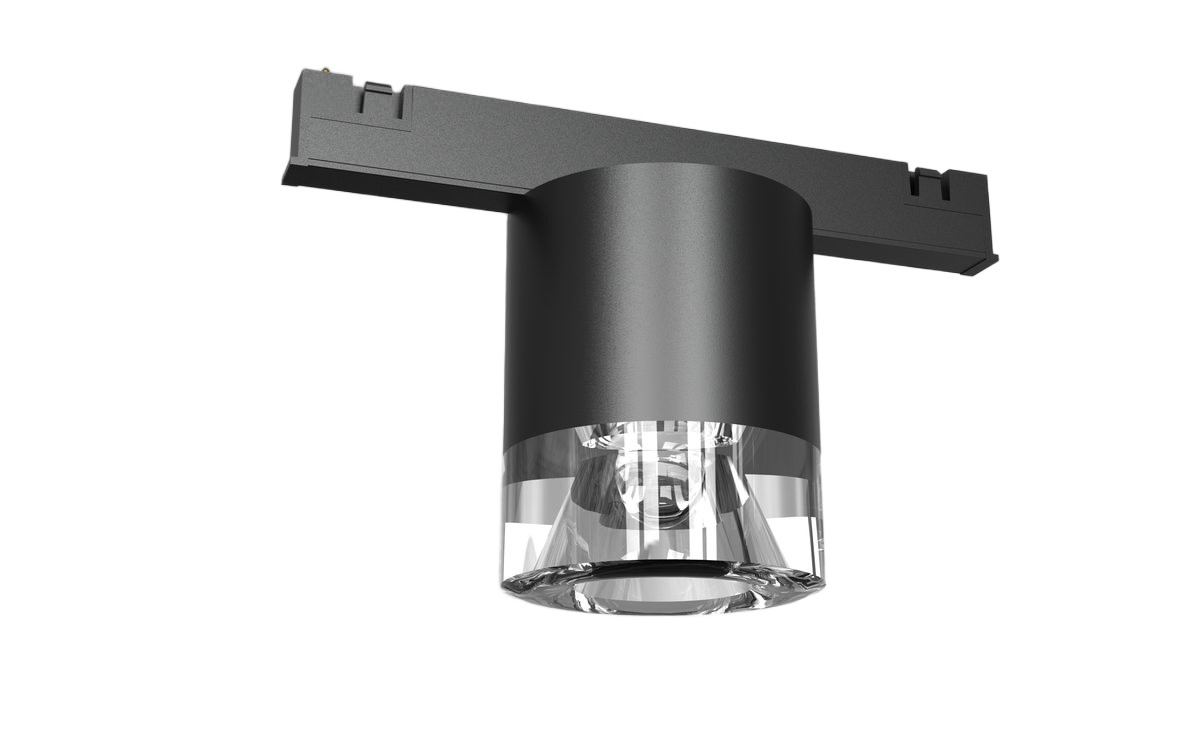

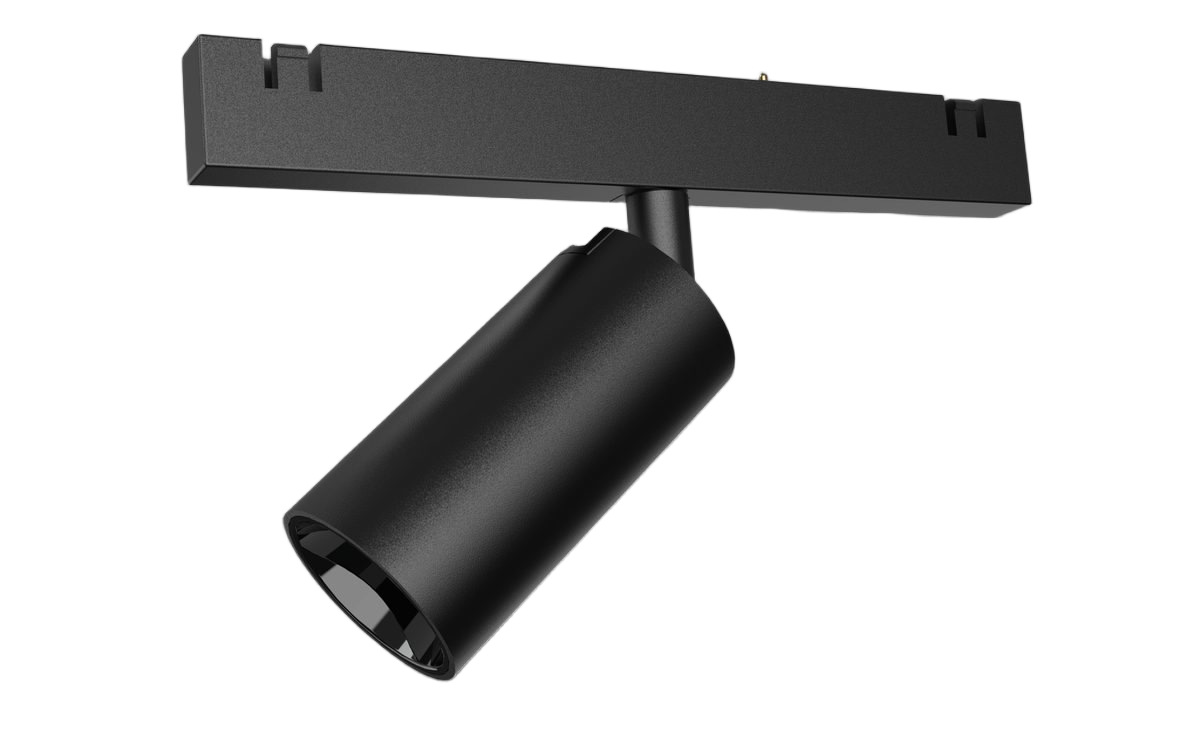

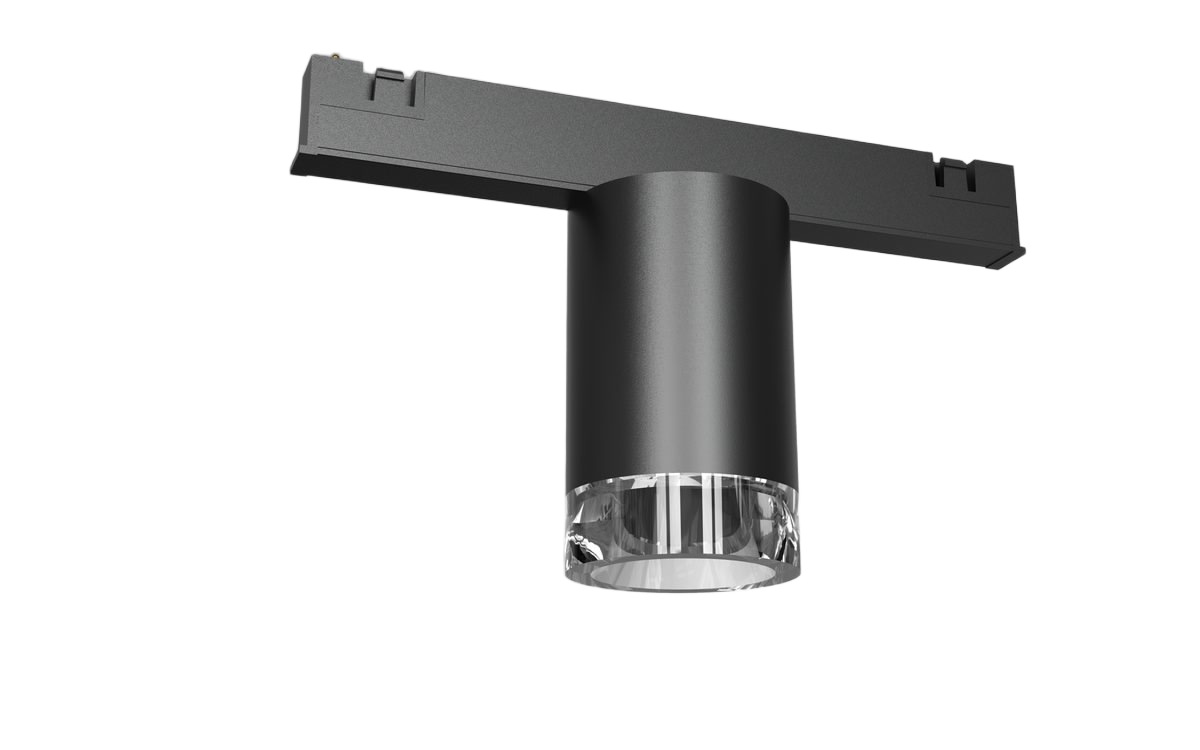

Module	Track light	2 – 9 W	Ø15 – Ø60 mm

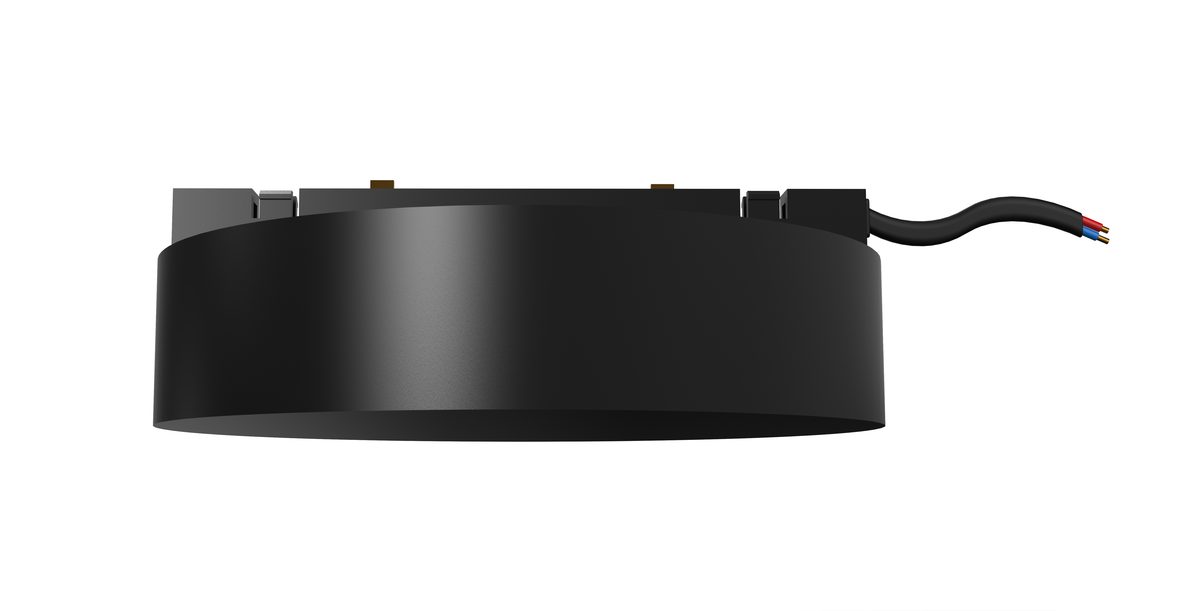

Module	Pendant	3 W	Ø32.5 × 100 × H39.5 mm
Driver	Integrated 24V driver	100 W	Ø90 × 200 mm

48V · Magnetic

20 Series

The full-featured 48V magnetic system with the widest module range.

The 20 Series is the workhorse of the LUXERA low-voltage range: a 20 mm magnetic profile running on safe DC 48V, supporting the broadest set of modules — downlights, zoom, wall-wash, linear, pendant and accessories — for commercial, retail and hospitality spaces.

System voltage: DC 48V safety voltage
Profile width: 20 mm
LED voltage: DC 36V
CRI: 80 / 90 / 95
Colour temp: 2700 – 6000K, 1CCT / 3CCT / TW
Glare: UGR < 19, anti-glare design
Control: DALI / CASAMBI / ZigBee / 2.4G
Efficiency: 100 – 160 lm/W
Certificates: CE, RoHS
Warranty: 5 years, 50,000 h (L80B20)

Modules & components (selected):

Type	Module	Power	Size

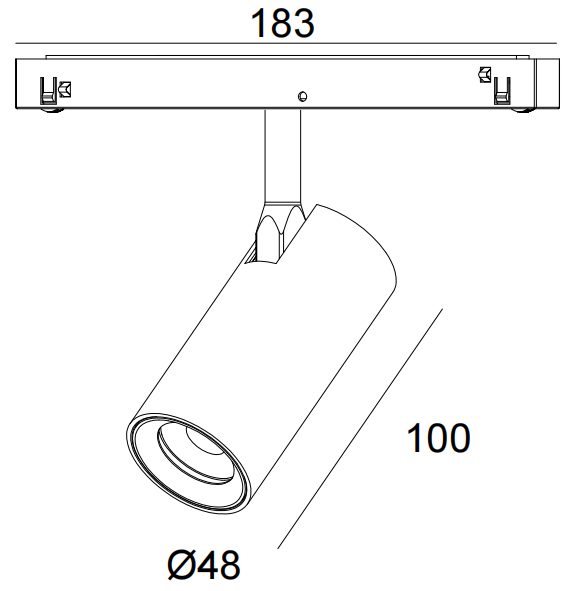

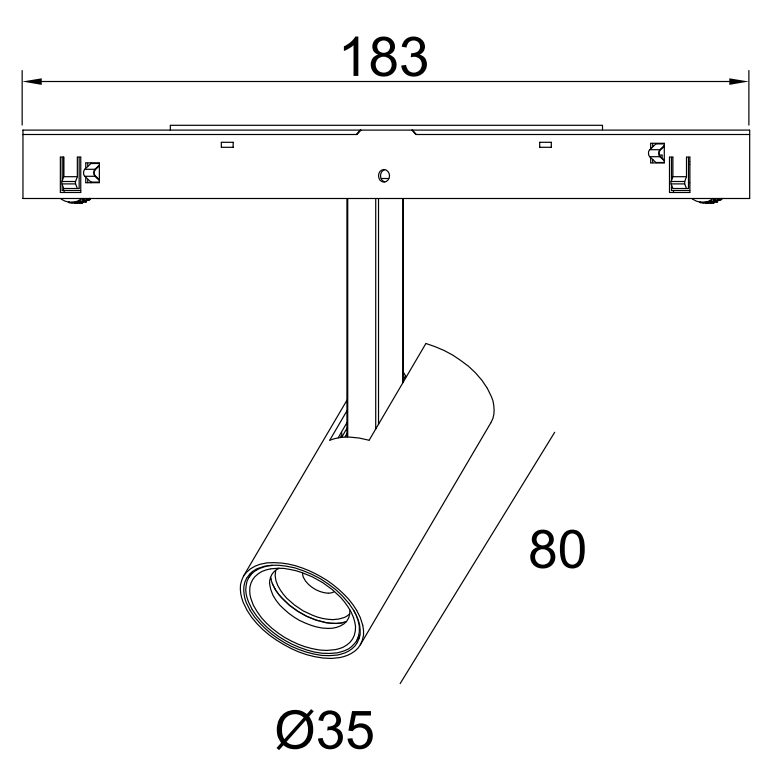

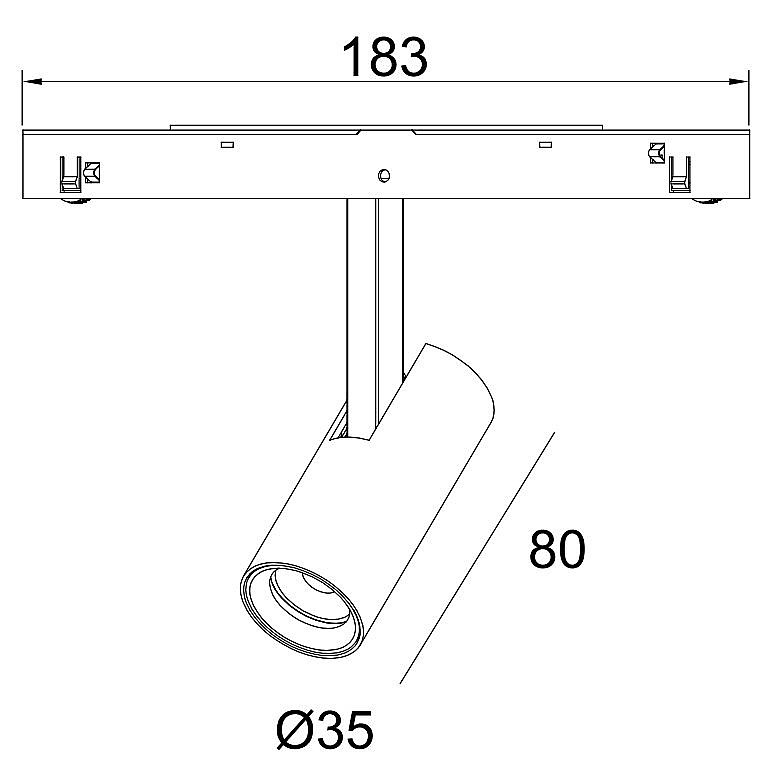

Downlight	Ø35 Module	8 – 12 W	Ø35 × 100 mm
Downlight	Ø48 Module	8 – 12 W	Ø48 × 100 mm
Downlight	Ø52 Module	—	Ø52 mm
Downlight	Ø62 Module	—	Ø62 mm

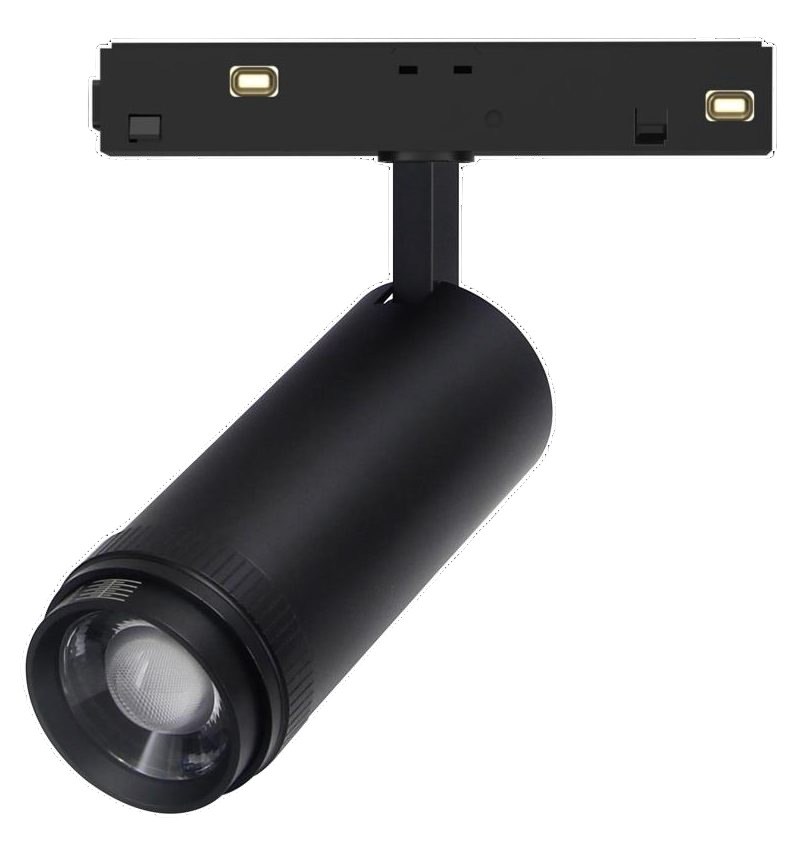

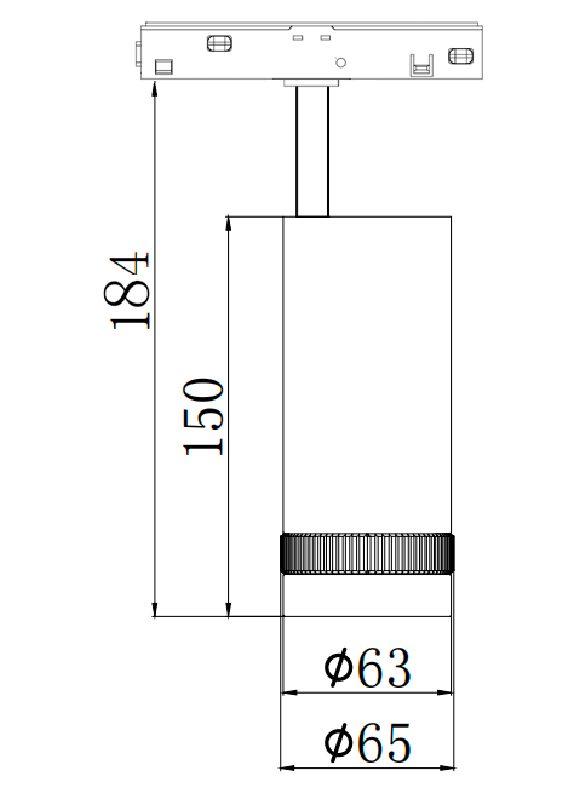

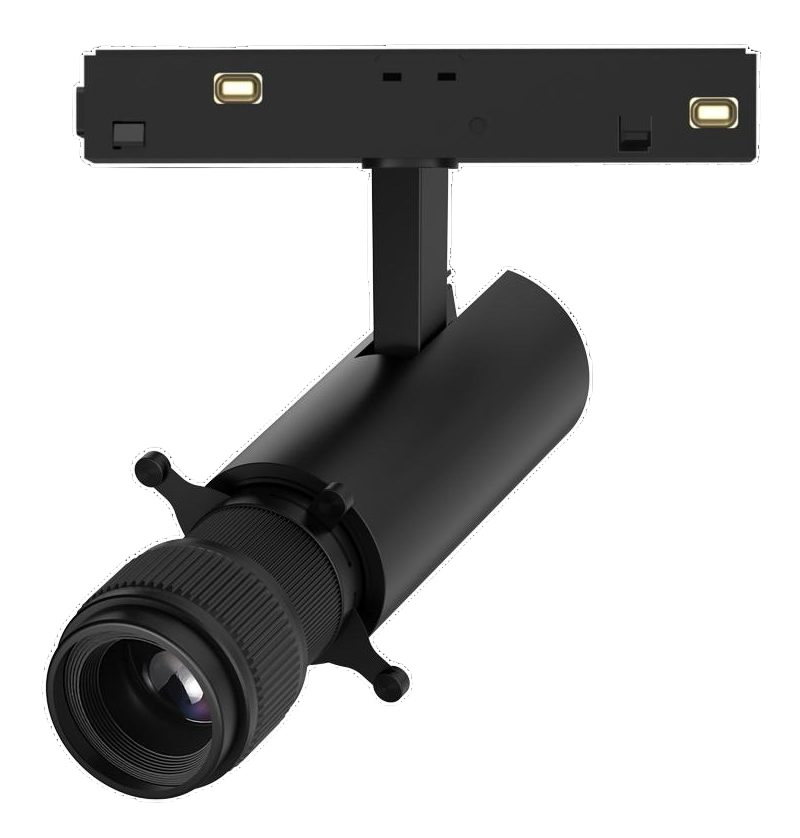

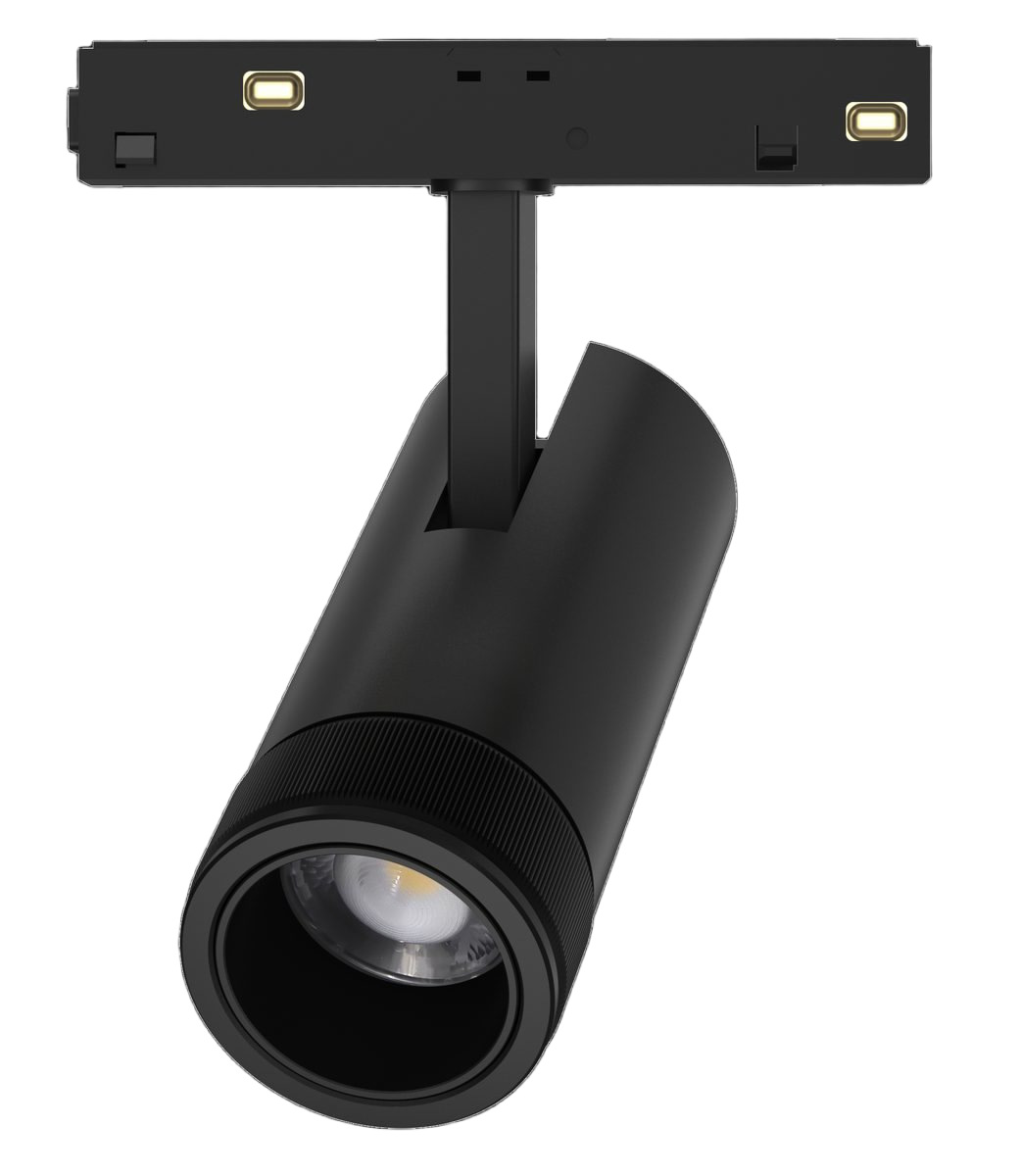

Zoom	Ø50 Zoom Module	—	Ø50 mm

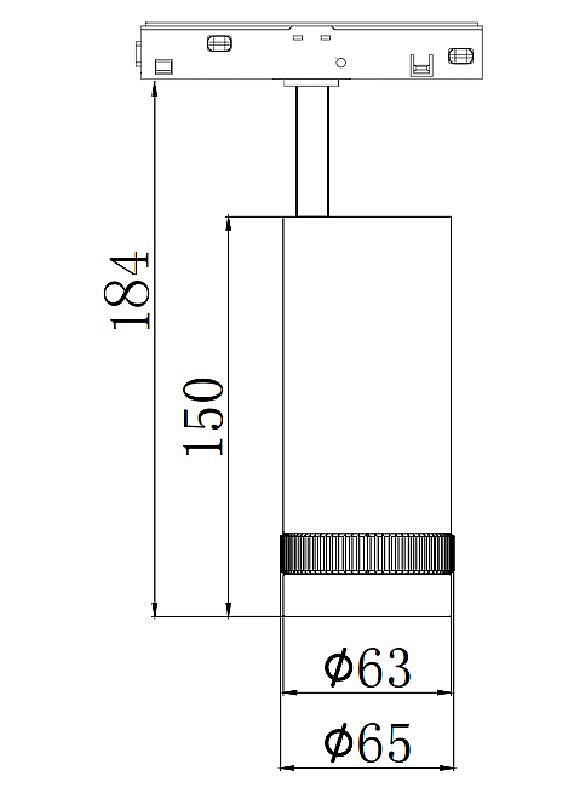

Zoom	Ø65 Zoom Module	—	Ø65 mm
Wall wash	ZS Wall-wash Module	—	—

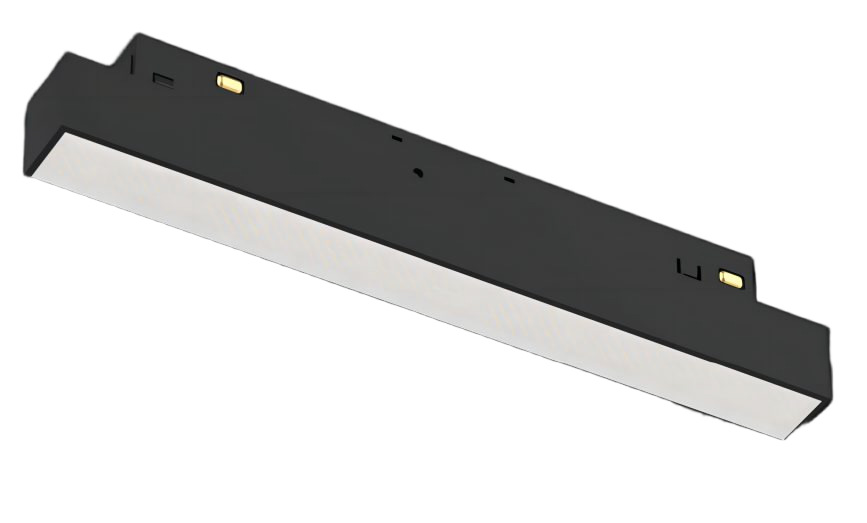

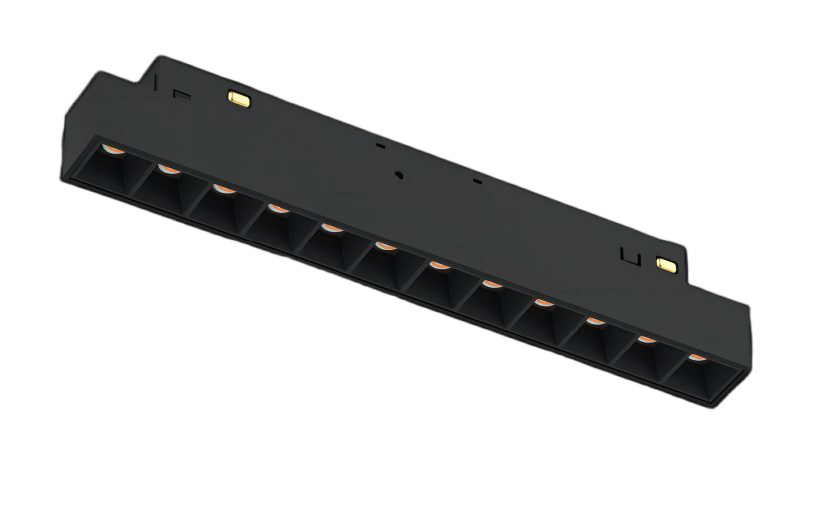

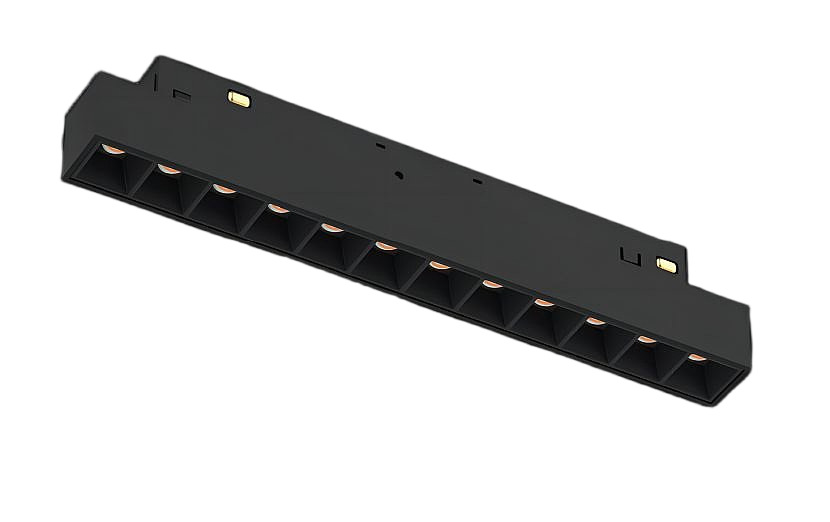

Linear	Linear Module (LR / LD)	—	—
Linear	Adjustable Linear (AR)	—	—
Pendant	Pendant (PL / PB)	—	—
Track	Track Module (TR)	—	—

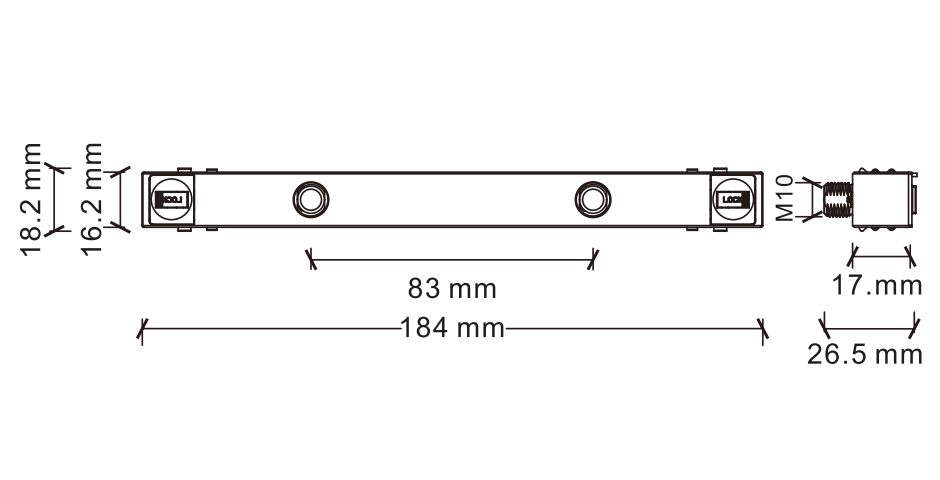

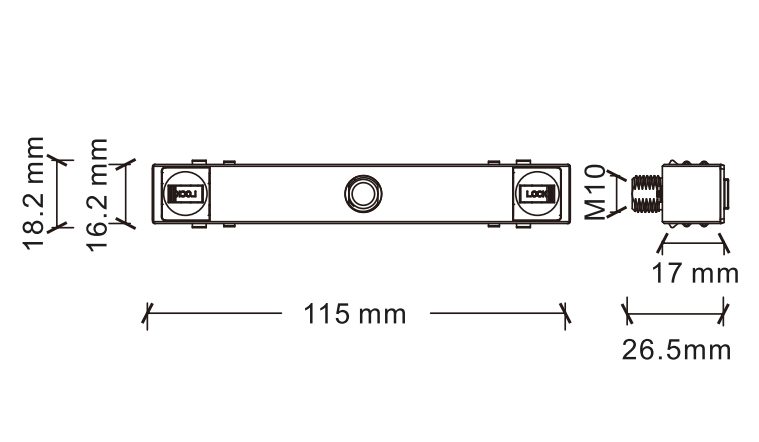

Accessory	Adapter / Connector (AC)	—	—

48V · Ultra-thin

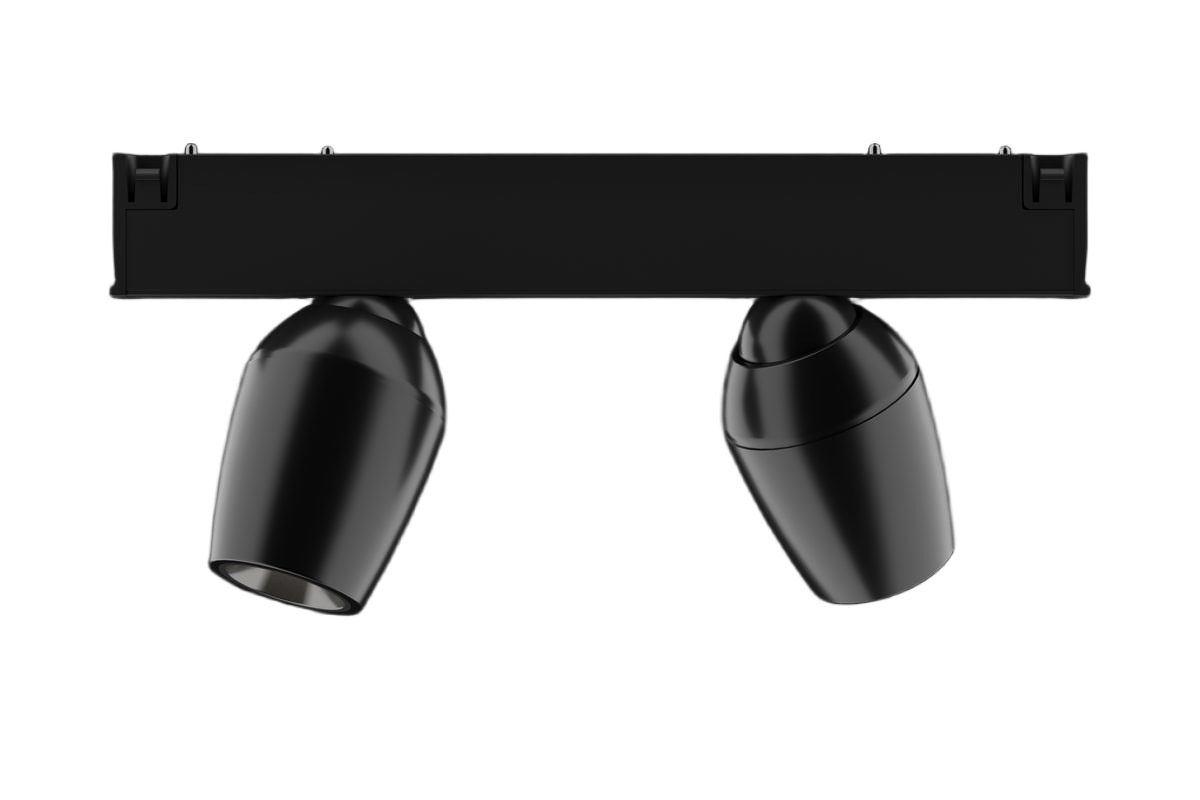

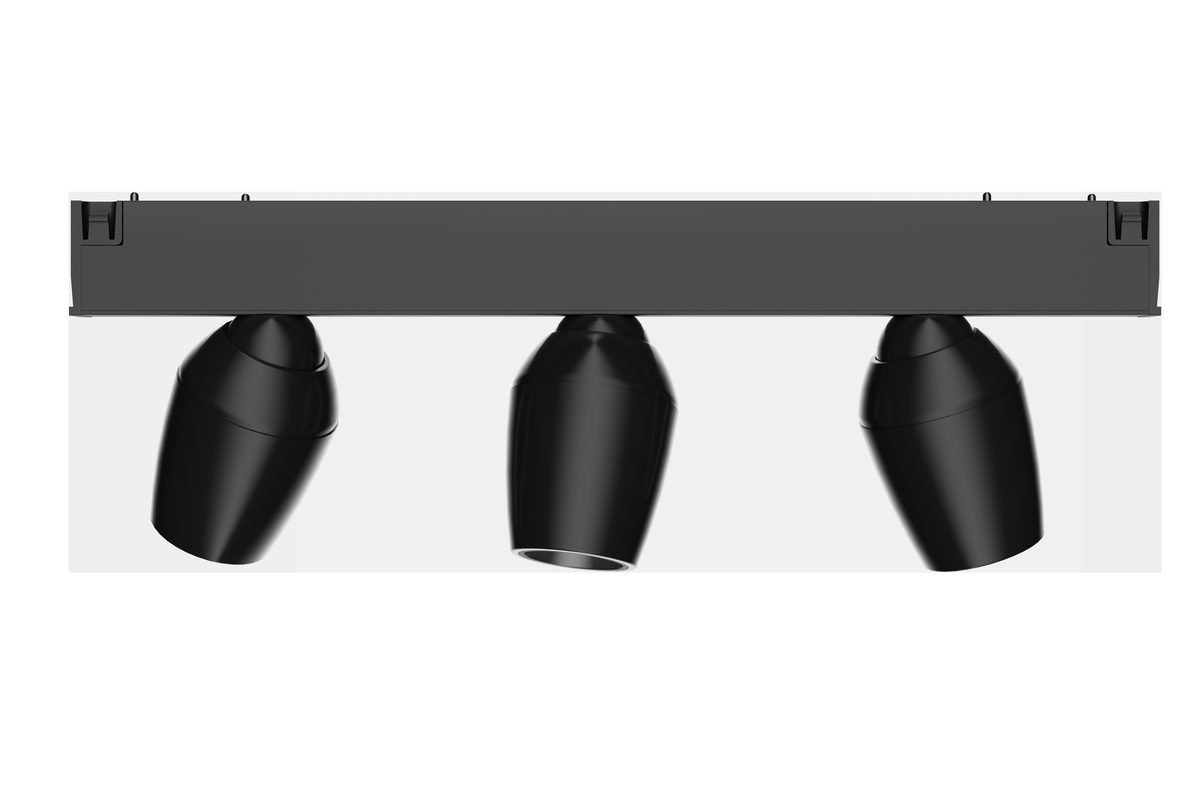

10 Series

Slim 48V magnetic rail with integrated driver for clean, tool-free installs.

The 10 Series delivers the simplicity of an integrated 48V driver in a slim magnetic profile. With flood, grille, adjustable grille, track and pendant modules plus turnkey power, it is built for fast, consistent roll-outs across retail and office fit-outs.

System voltage: DC 48V (integrated driver)
Profile: Ultra-thin magnetic
Rail lengths: 1000 / 1500 / 2000 / 3000 mm
Module power: 3 – 20 W
Beam angle: 24° (grille) / 120° (flood)
Power supply: Integrated 48V driver 100 / 150 / 200 W
Smart option: Tuya Zigbee / Mijia control
Packing: 50 pcs / box (modules)

Modules & components (selected):

Type	Module	Power	Size

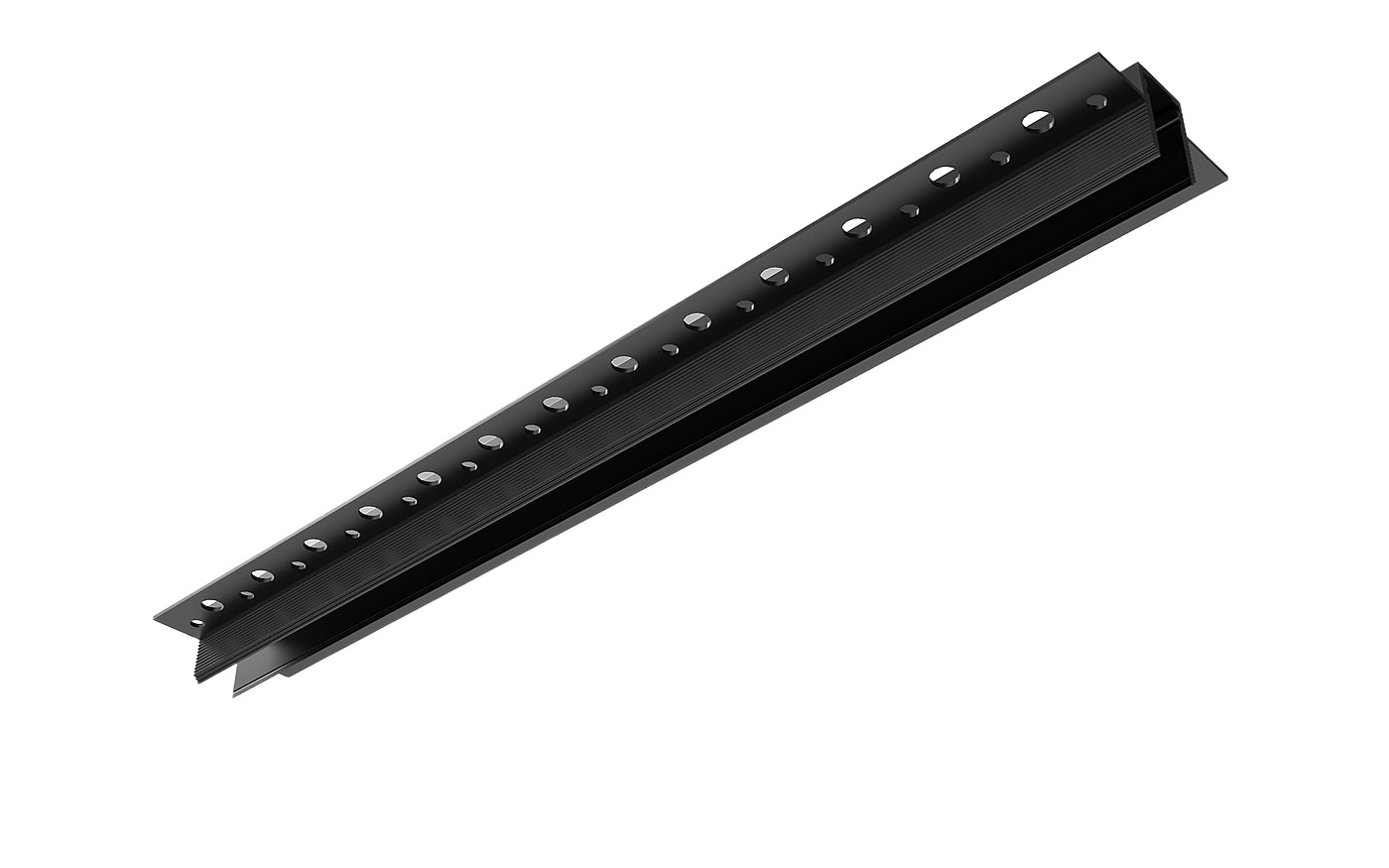

Rail	10 Series Rail	—	L1000 × W45 × H23 mm
Connector	Horizontal corner	—	50 × 50 mm
Connector	Vertical corner	—	50 × 50 mm
Connector	Power feed head	—	L71.5 × 10 × 19 mm
Connector	Direct wire joiner	—	L195 × 10 × 19 mm
Module	Floodlight	8 – 16 W	L300 – 600 × W10 × H19 mm
Module	Grille light	5 – 20 W	L120 – 472 × W10 × H19 mm
Module	Adjustable grille	5 – 10 W	L120 – 240 × W10 × H60 mm

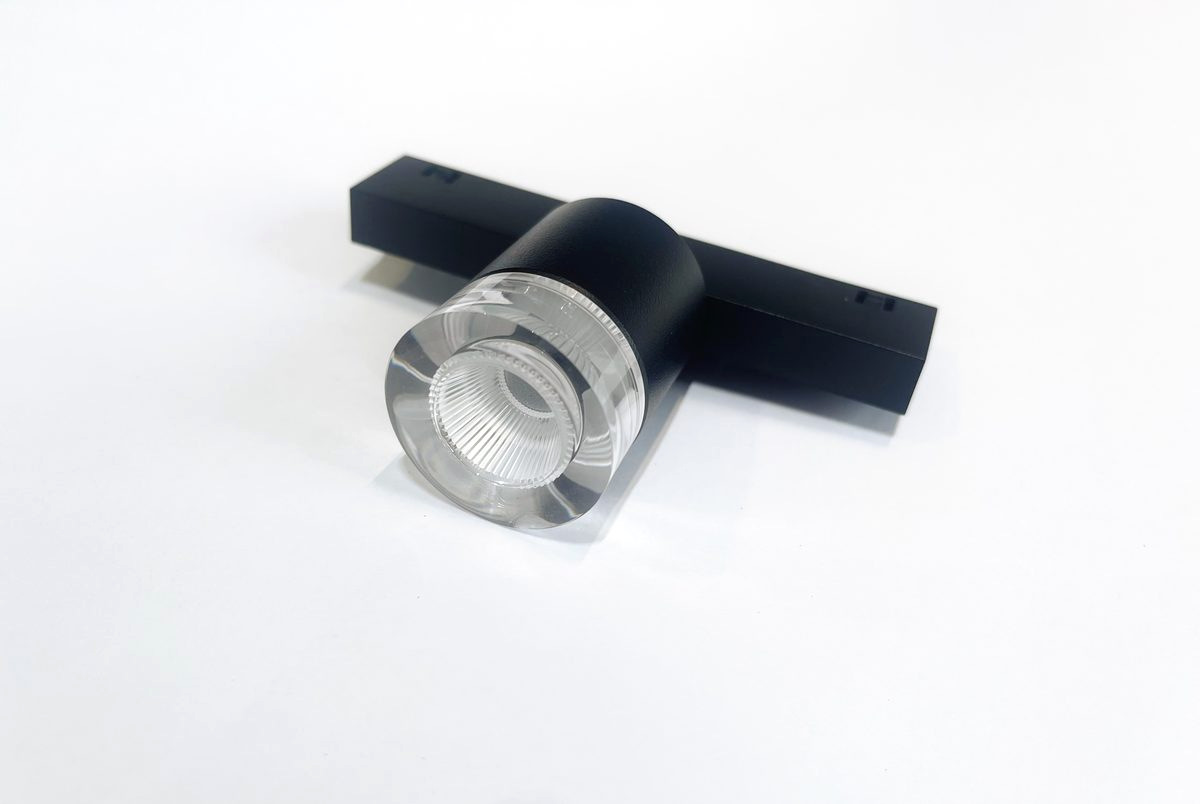

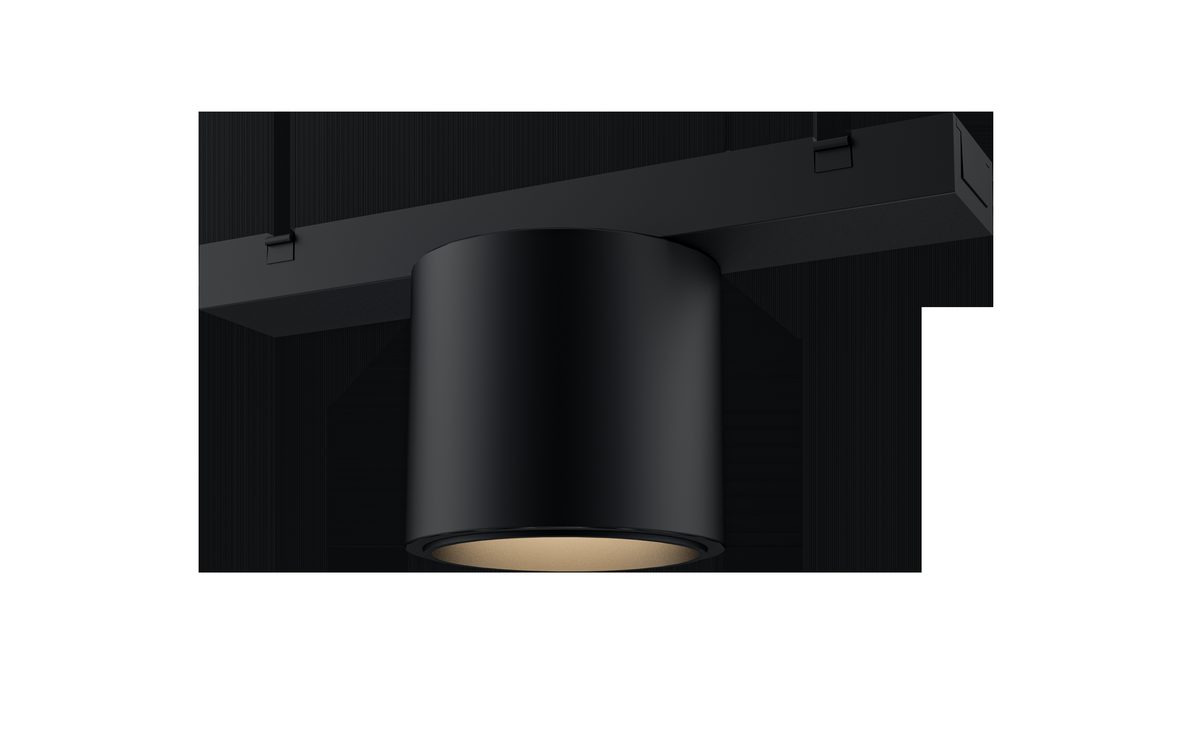

Module	Track light	1×3 – 10 W	Ø20 – Ø45 mm
Module	Pendant	3 – 5 W	Ø23 – Ø30 mm

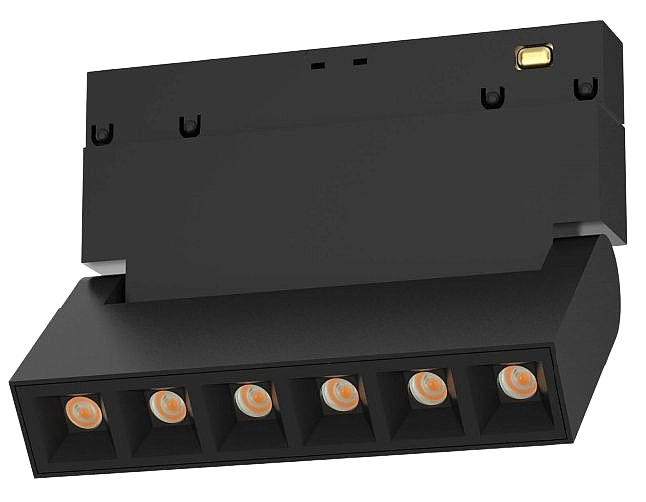

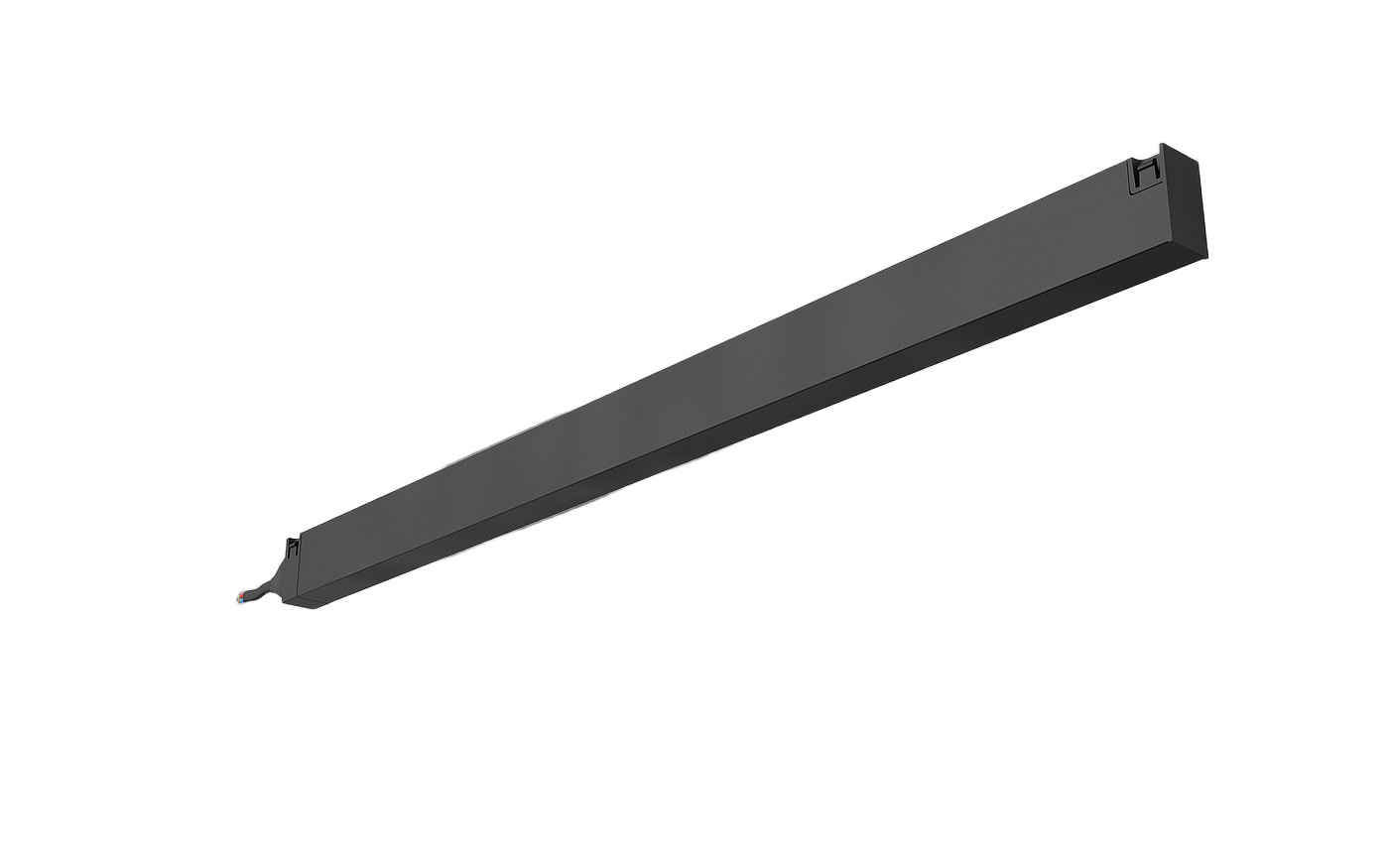

Driver	Integrated 48V driver	100 / 150 / 200 W	L295 – 450 × W10 × H19 mm

Rail lengths, module compatibility and driver capacity are confirmed per layout. Tell us the ceiling condition and we propose the profile.

20 Series — track & accessories

The 20 mm reference rail, its connectors, power feeds and in-track drivers — the parts that make up a 48V 20 Series run. Click any component for details.

Track Rail

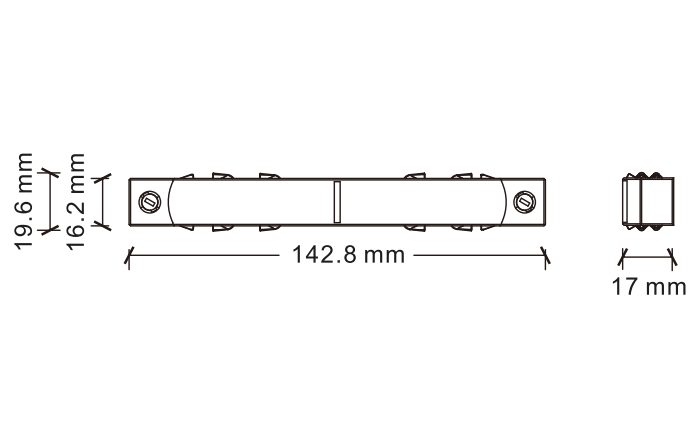

Connectors

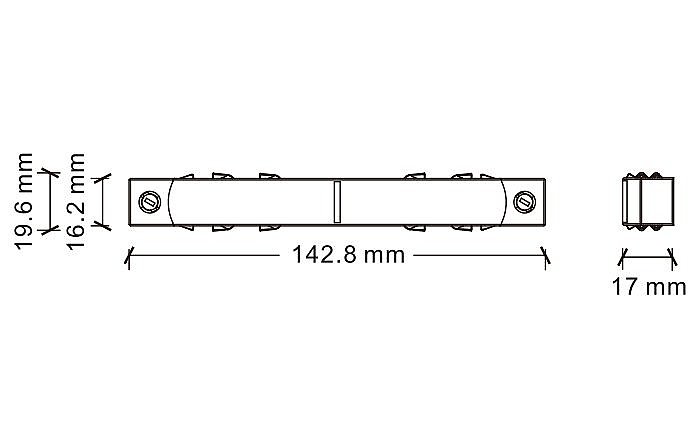

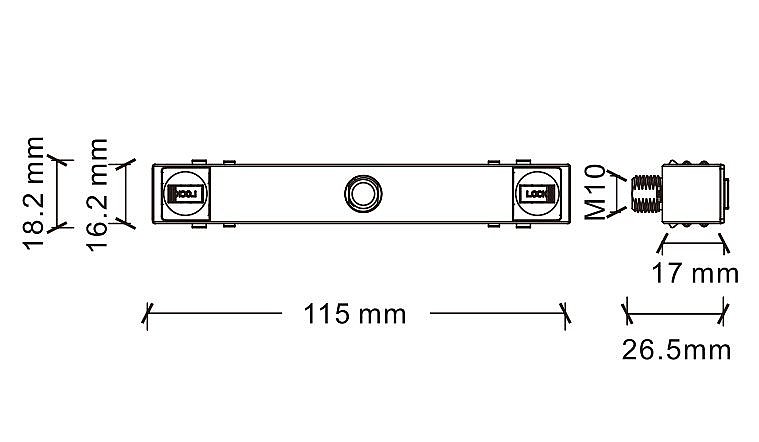

Power Supplies

Model suffixes: -B Black, -W White, -S Silver; -10 / -15 / -20 / -30 = 1 / 1.5 / 2 / 3 m. Exact codes are confirmed on quotation.

48V 10 Series

System parameters

Typical electrical and mechanical parameters for the ultra-thin 10 Series magnetic run. Figures are confirmed per model on quotation.

Parameter	Value
System voltage	DC48V
LED module voltage	DC36V
Dimming	0-10V / DALI / TRIAC (driver-dependent)
Rail profile	45 × 23 mm (ultra-thin)
Rail lengths	1000 / 1500 / 2000 / 3000 mm
Driver capacity	100 W / 200 W per power feed
Module power	3 W – 20 W
Beam angle	24° (spot / grille) · 120° (flood)
CCT	2700K / 3000K / 3500K / 4000K / 5000K
CRI	Ra80+ / Ra90+ / Ra95+
Housing colour	White / Black / Grey
Material	Anodised aluminium
Certification	CE, RoHS (ENEC / TÜV options)
Warranty	3–5 years

48V 20 Series

System parameters

Typical electrical and mechanical parameters for the 20 mm reference rail magnetic system. Figures are confirmed per model on quotation.

Parameter	Value
System voltage	DC48V
LED module voltage	DC36V (D-series) · DC18V (D28)
Dimming	0-10V / DALI / TRIAC / RF 2.4G / Casambi / ZigBee
Rail profile	≈ 20 mm reference profile — surface & recessed
Rail lengths	1 / 1.5 / 2 / 3 m, cut to length
Driver	External Mean Well or in-track magnetic LED driver, 35–350 W per feed
Module types	Spotlights D28–D62 · zoomable · shapeable · linear L300–L900 · pendant
Beam angle	24° / 80° / 120° (module-dependent)
CCT	2700K / 3000K / 3500K / 4000K / 5000K
CRI	Ra80+ / Ra90+ / Ra95+
Housing colour	White / Black / Grey
Material	Anodised aluminium
Certification	CE, RoHS (ENEC / TÜV GS / CB / SAA available)
Warranty	3–5 years

Module matrix

The DC48V module range covers 5 W to 30 W across spotlights, zoomable, shapeable, linear and pendant types. See the full 48V module list. Mains-voltage families are listed below for mixed installations.

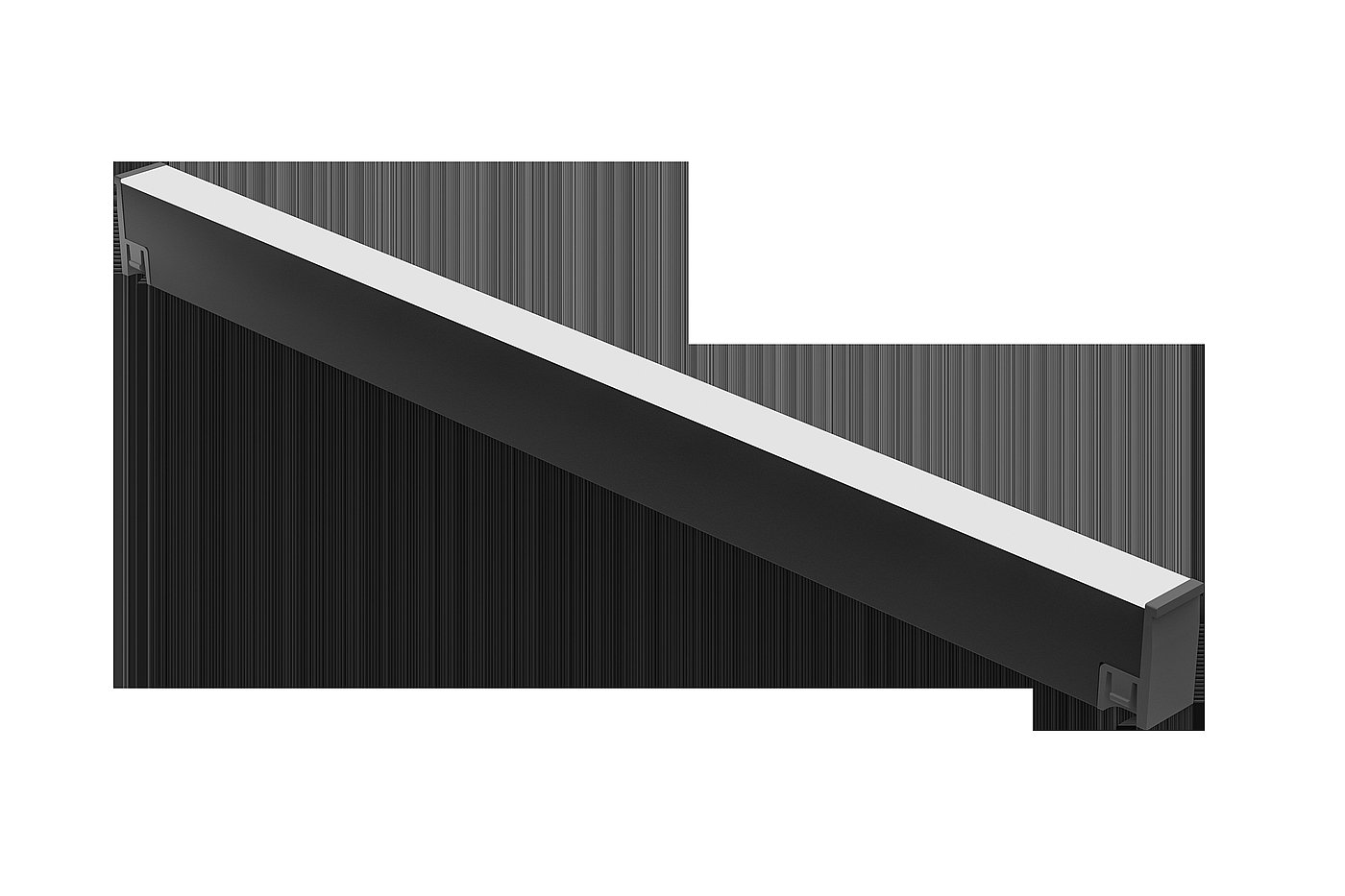

300 mm Floodlight Module

Wide 120° wash

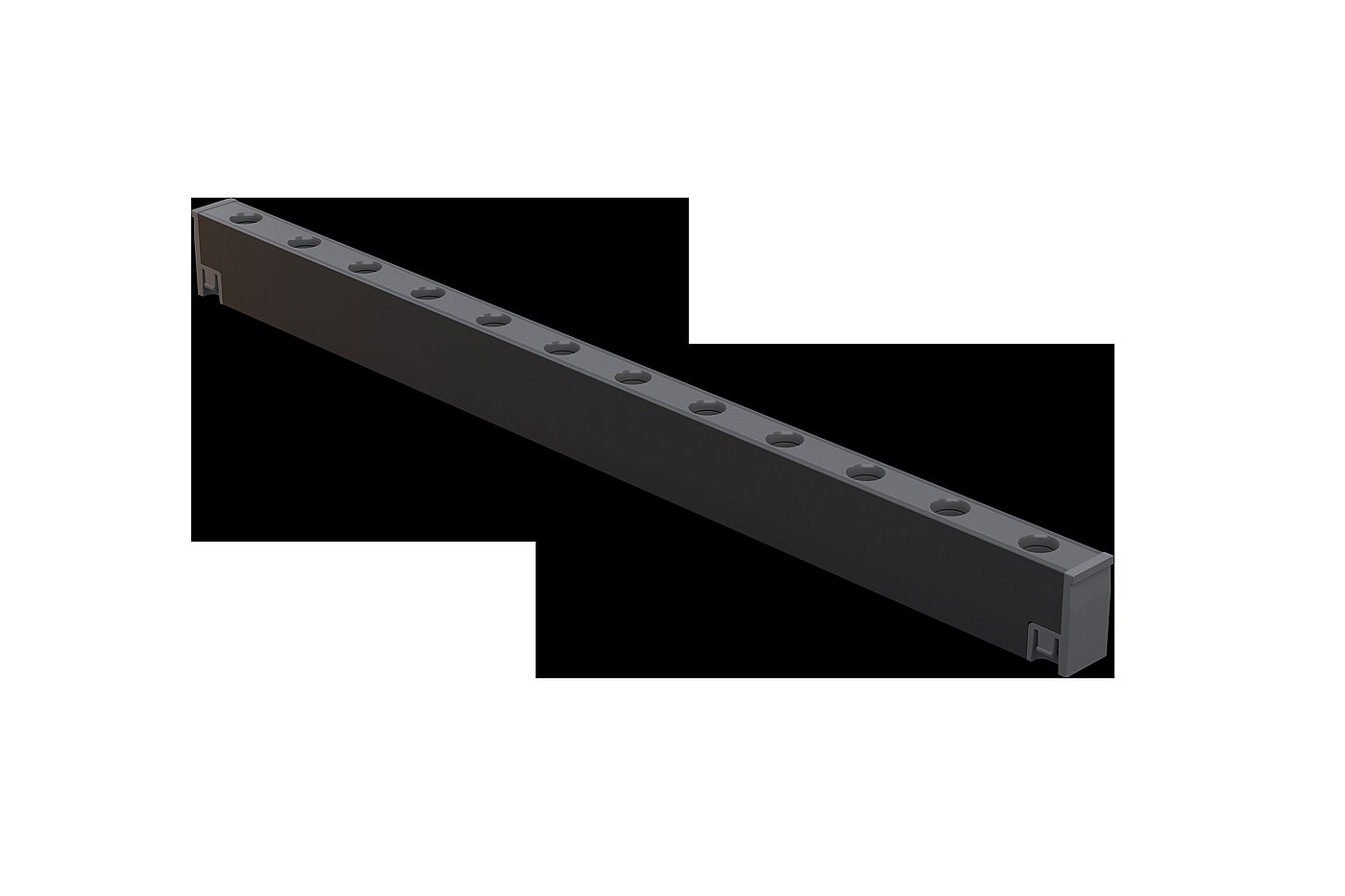

6-Bead Grille Module

24° accent

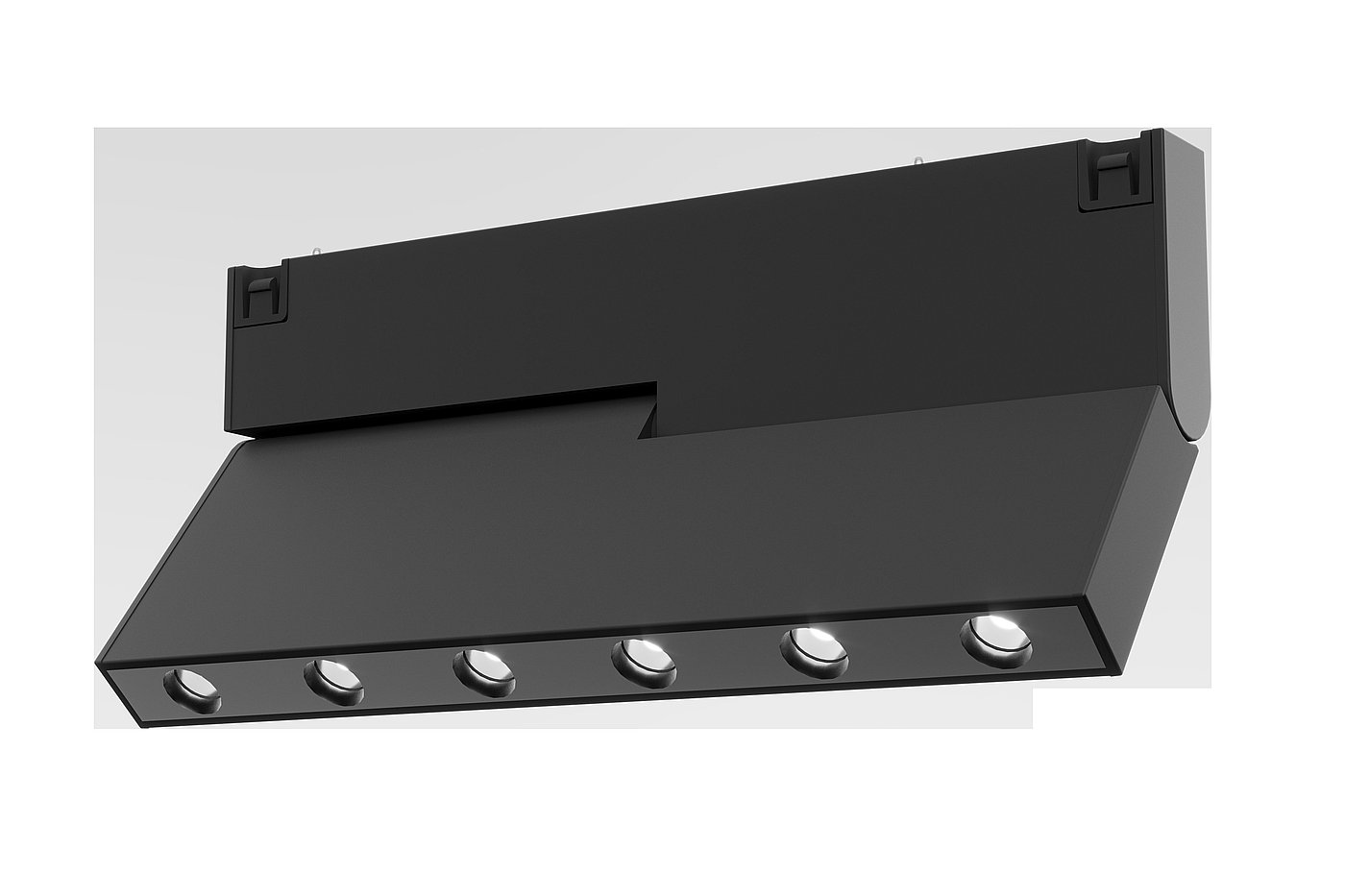

Adjustable Grille Module

Tiltable accent

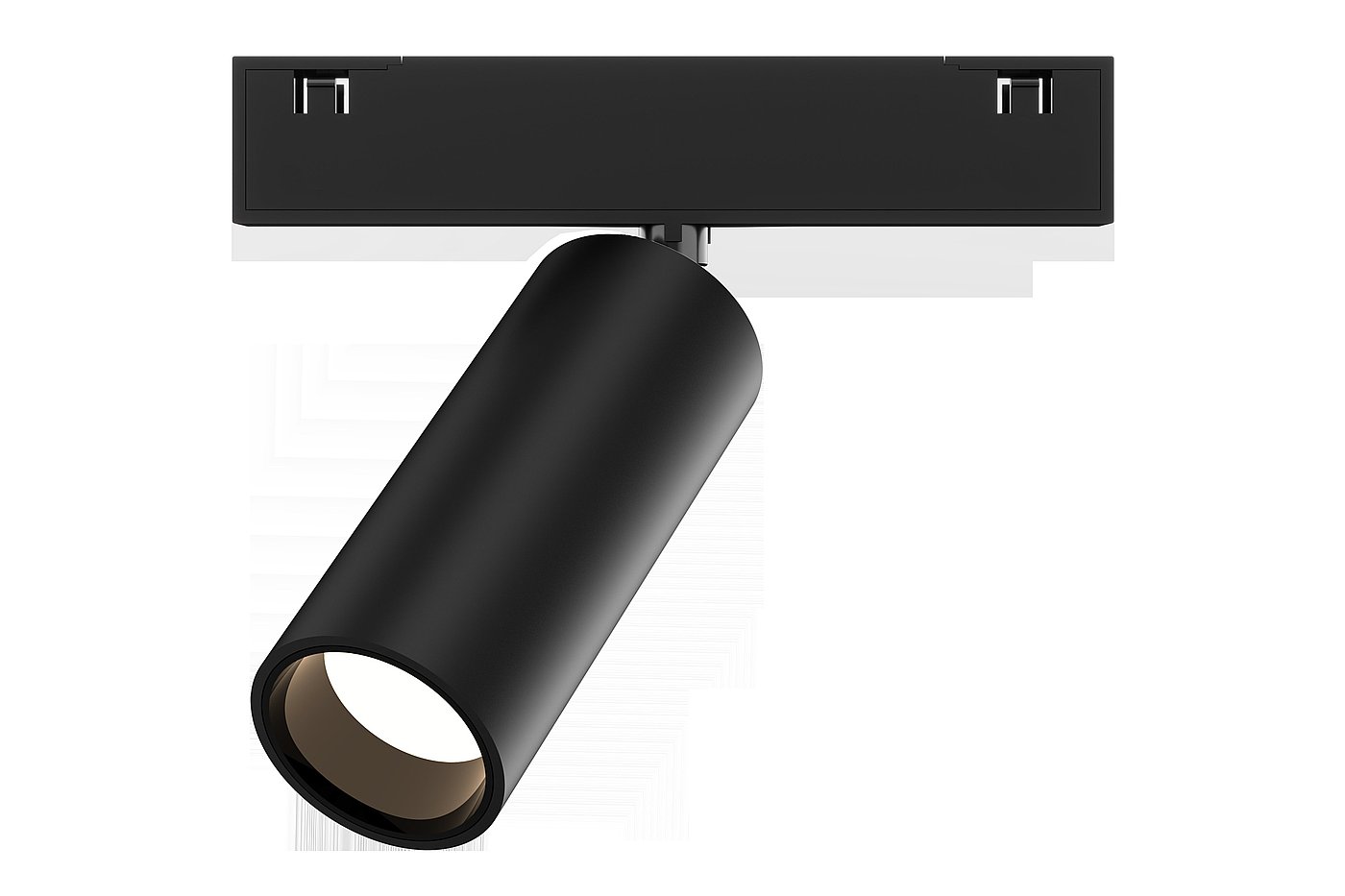

Track Light Module 5W

Fixed spotlight

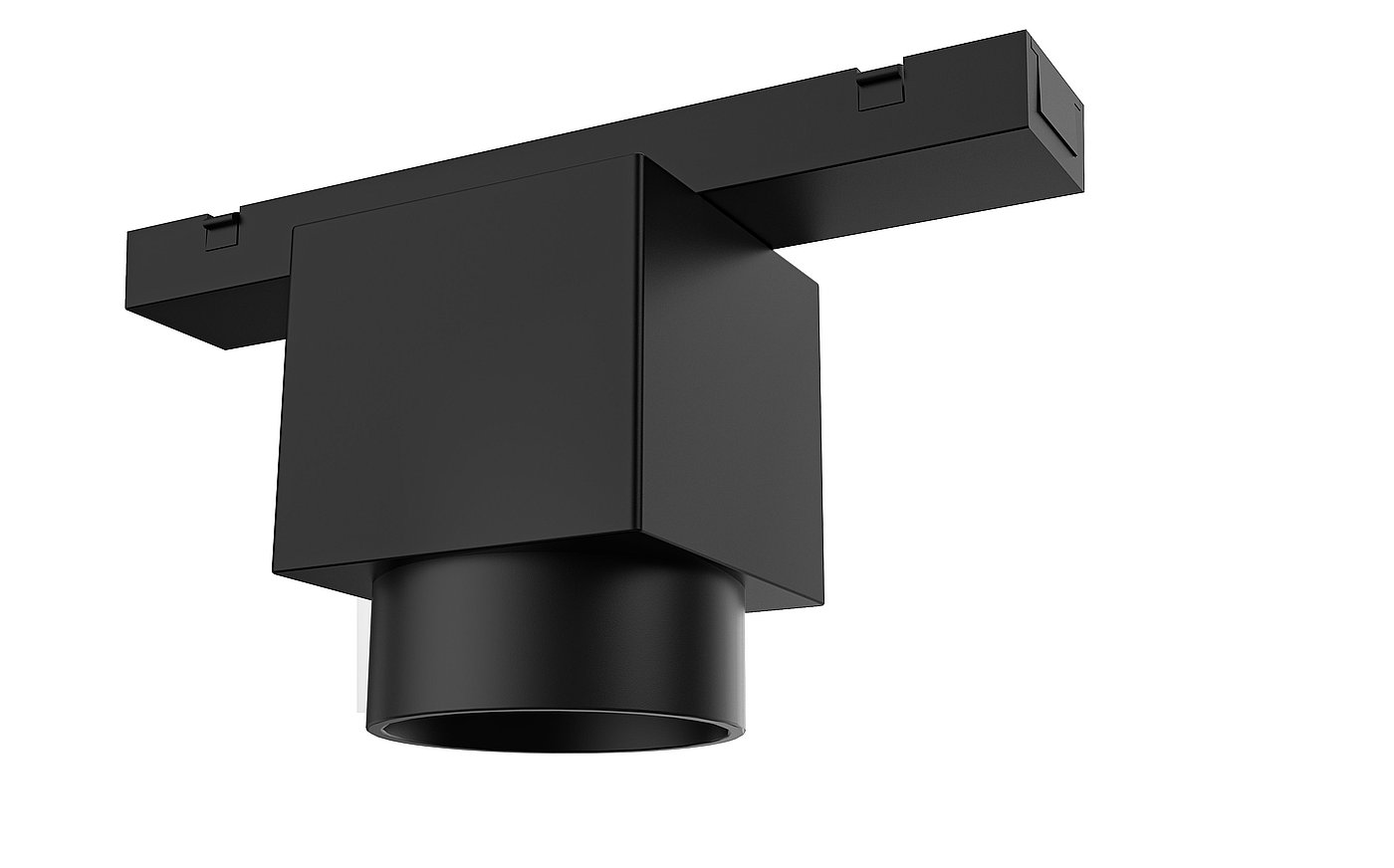

Track Light Module 9W

Fixed spotlight

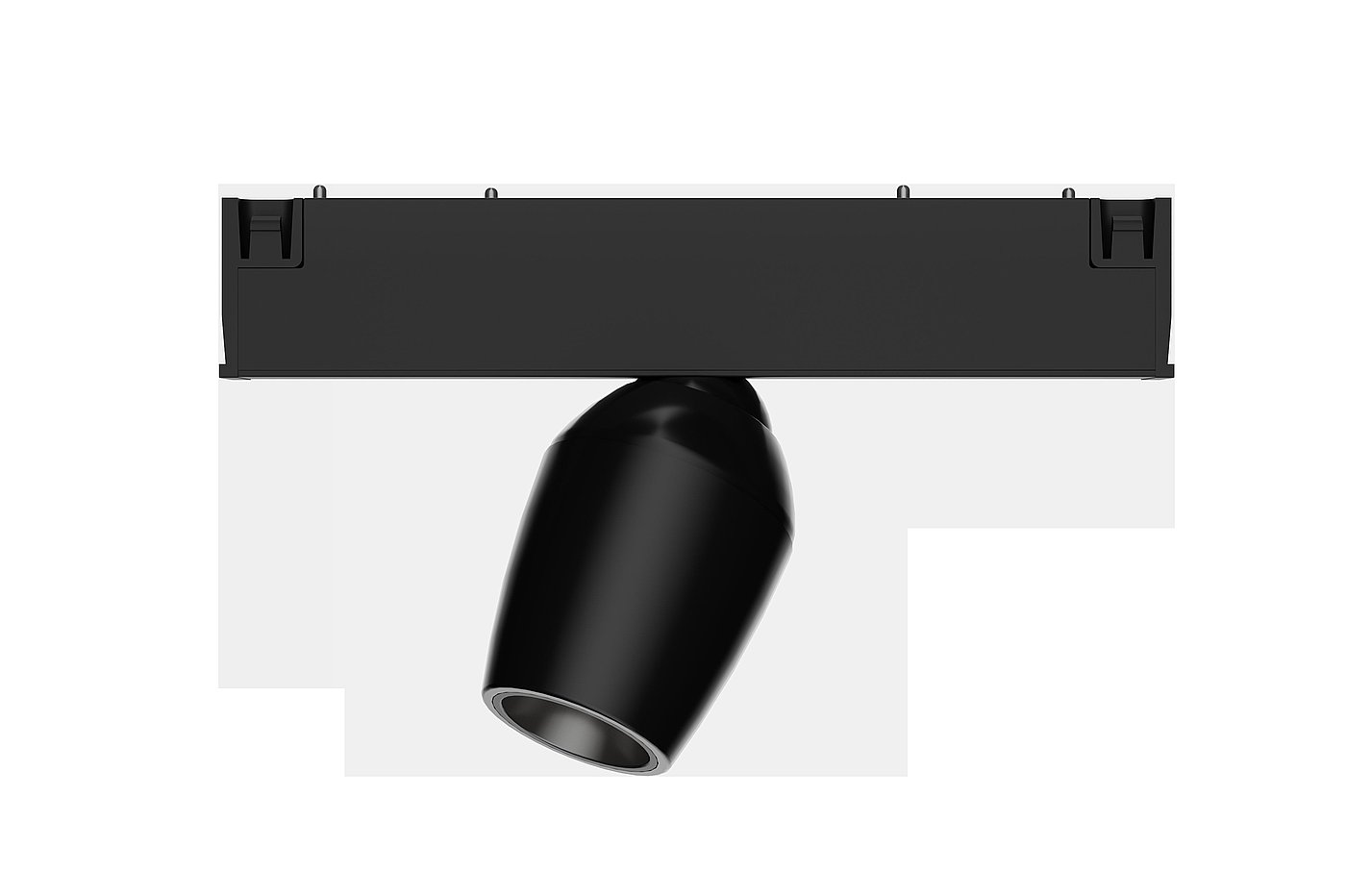

3×3W Track Light Module

Multi-head

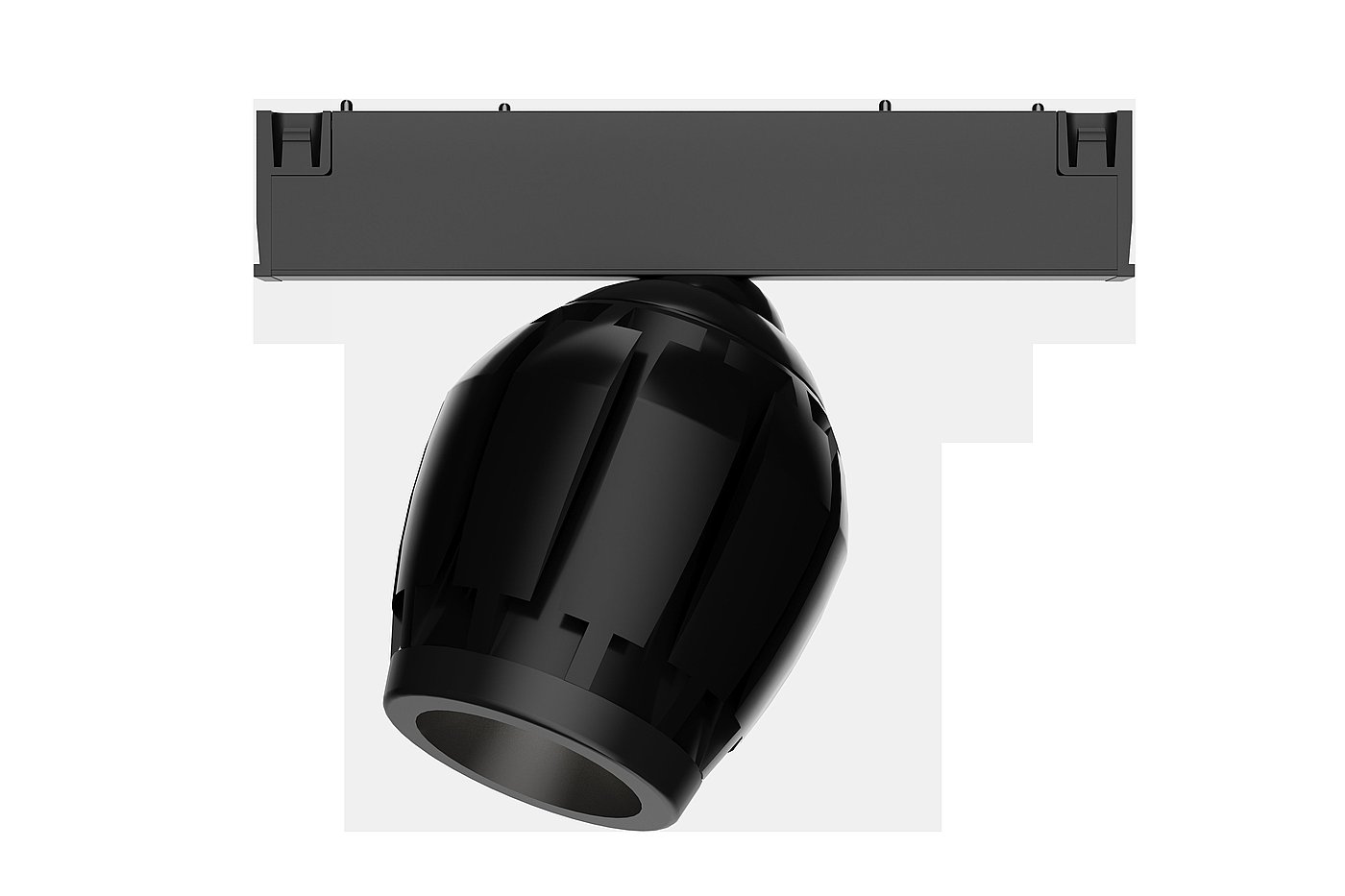

Track Light Module 10W

Fixed spotlight

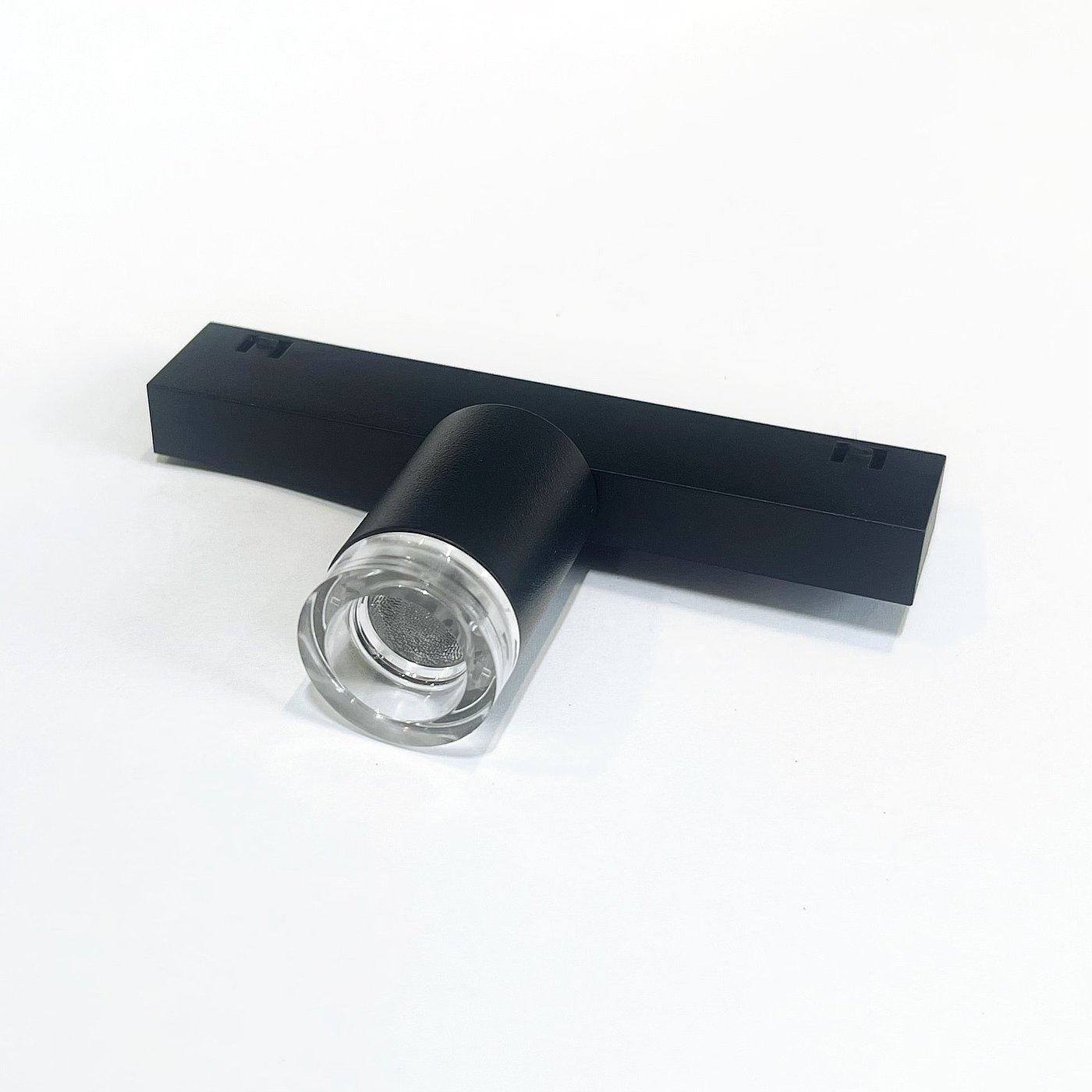

Track Light Module 3W

Mini spotlight

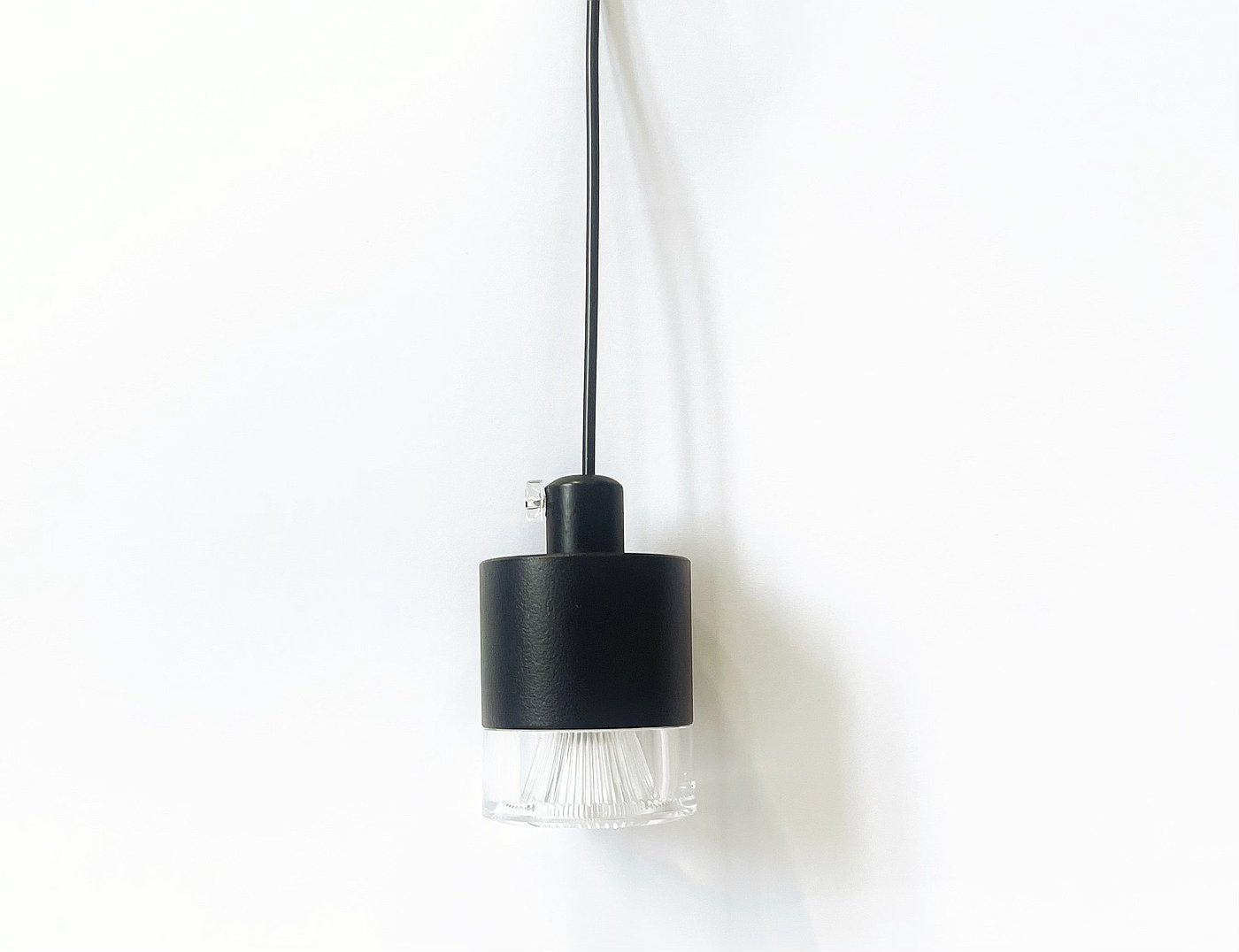

Pendant Module 3W

Drop pendant

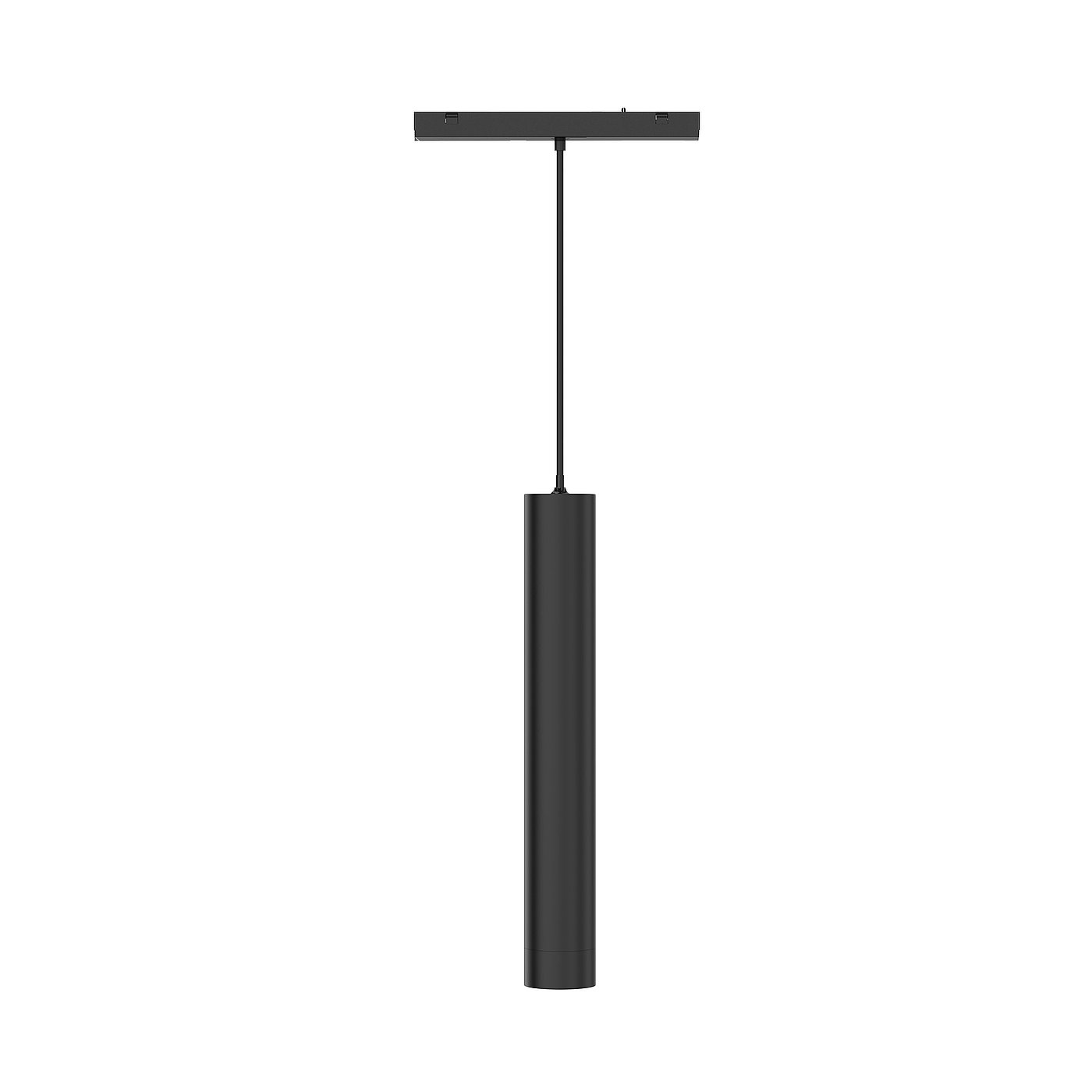

Pendant Module 5W

Long drop pendant

Full specifications, photometric files and installation drawings are provided by our sales team per model. See the product range.

Next step

Discuss your 48v magnetic track lighting system

Tell us the country, the space type and how you want to control the light. We will confirm the model combination and quote the complete system.

WhatsApp us Email us

WhatsApp: +86 199 2884 1626

Email: [email protected]

Drawings and site photos can follow by WhatsApp or email. No upload needed to start.
